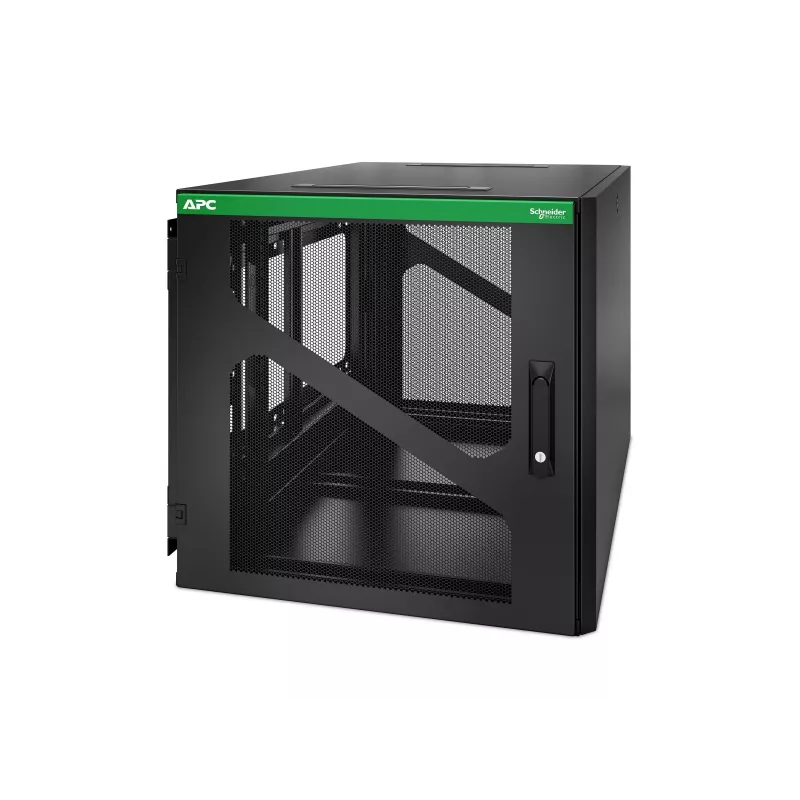

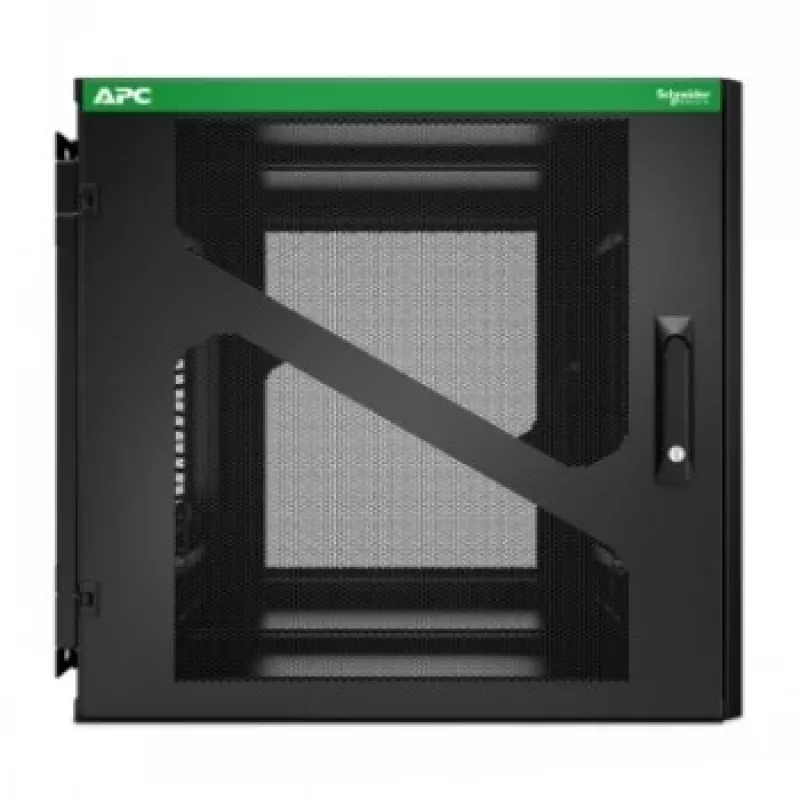

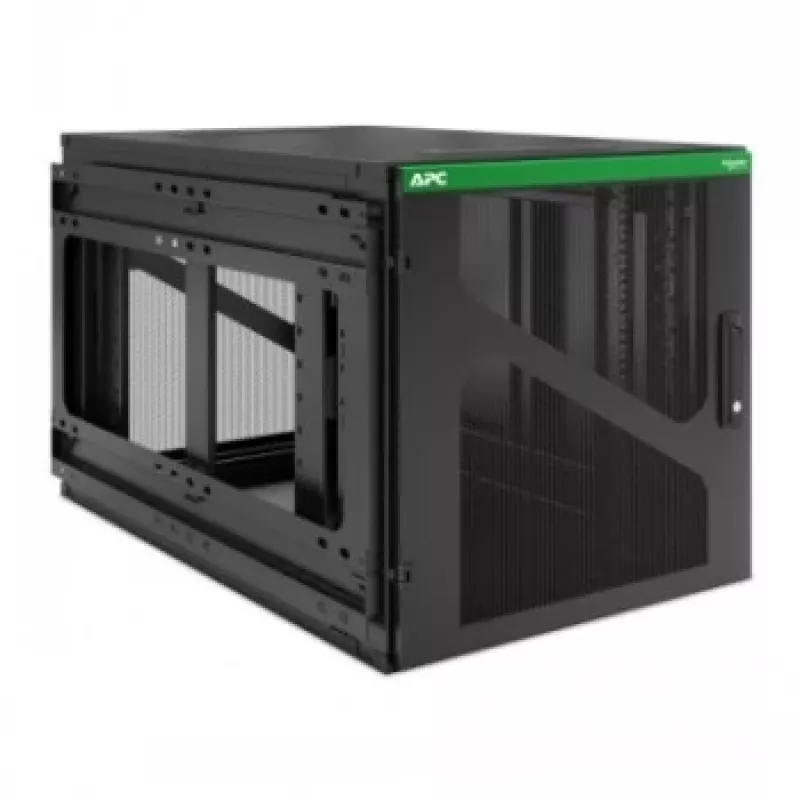

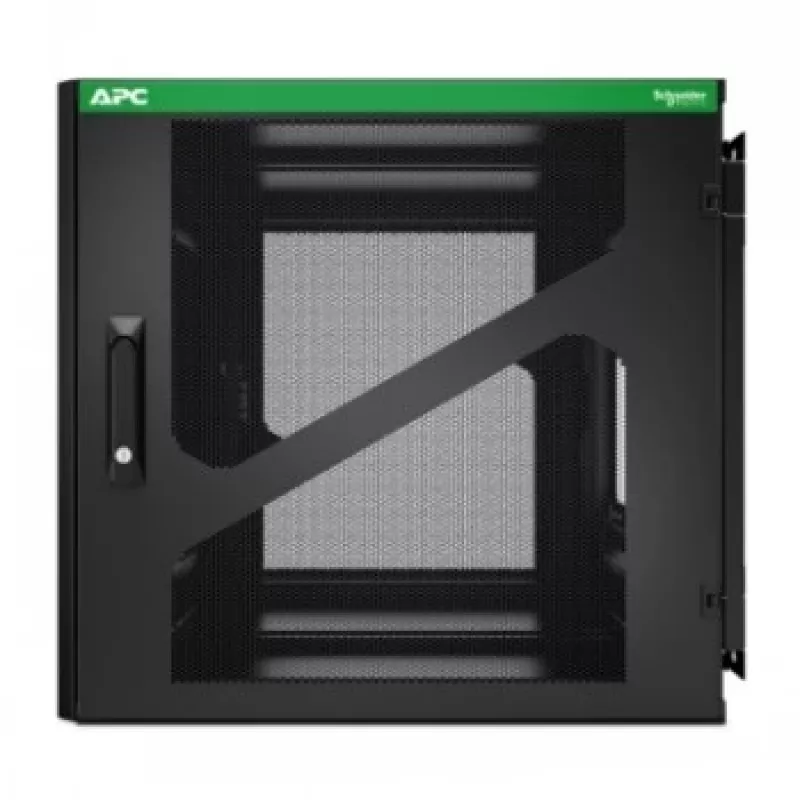

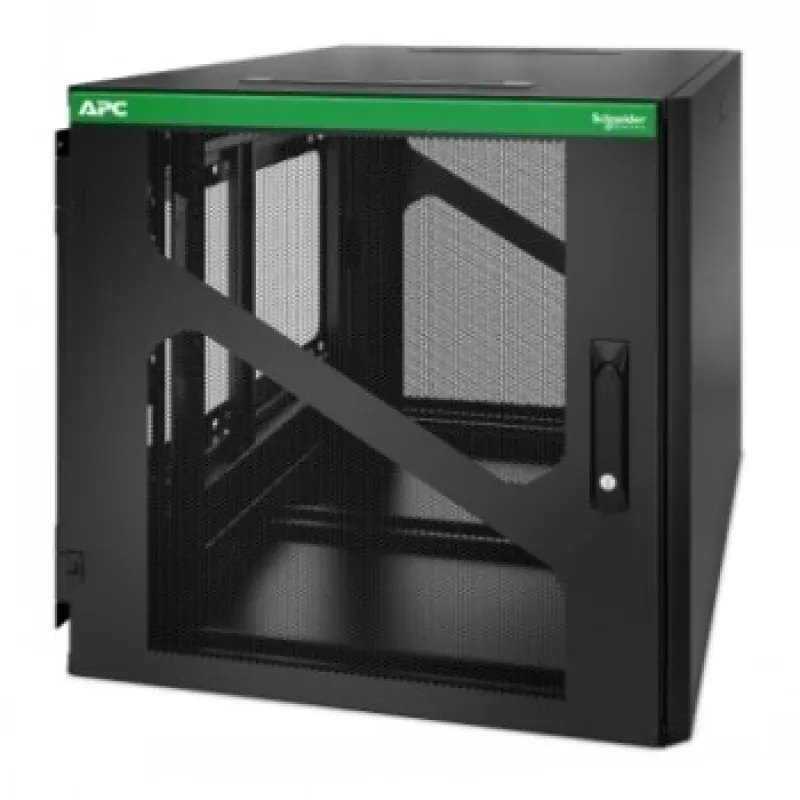

APC NetShelter 12U Wall-Mount Rack Enclosure Cabinet with Side-Mount UPS Depth, Black

Secure your network equipment in a compact, wall-mounted 12U enclosure with integrated side-mount UPS capability. This APC NetShelter cabinet saves valuable floor space while providing reliable power placement for switches, patch panels, and shallow servers. The lockable perforated front door and removable side panels protect against unauthorized access, while passive ventilation keeps equipment cool.

Advantages

Mount the rack directly to the wall to maximize floor space in small IT rooms, retail back offices, or educational facilities. The integrated side-mount UPS feature allows you to install an uninterruptible power supply alongside your devices, ensuring clean power without sacrificing rack units. The perforated, lockable front door promotes airflow while securing equipment, and the removable side panels provide easy access during installation and maintenance. Top and bottom cable entry points keep cabling organized and out of sight.

Suitable for

• Network closets and small IT rooms
• Retail, office, and educational environments
• Housing patch panels, switches, and UPS units
• Shallow servers and AV equipment

Key specifications

• Rack capacity: 12U
• Mounting standard: 19-inch EIA-310-D
• Maximum usable depth: 520 mm
• Maximum weight capacity: 90.72 kg (200 lbs)
• Front door: Perforated, lockable
• Side panels: Removable, lockable
• Material: Steel
• Colour: Black
• Cable access: Top and bottom entry points
• Cooling: Passive ventilation, fan-ready
• UPS mounting: Integrated side-mount capability
• Security: Keyed locks for front door and side panels
• Mounting hardware: Included wall-mount brackets
• Compliance: RoHS, REACH

Recommendations

For optimal airflow, avoid overloading the rack and ensure the perforated front door remains unobstructed. Use the side-mount feature to position the UPS close to critical equipment, reducing cable clutter. Verify wall structure can support the total weight of the enclosure and installed equipment before mounting.
