Indicator LED light Schneider Electric DL1BDB8 24V for control panels and machinery

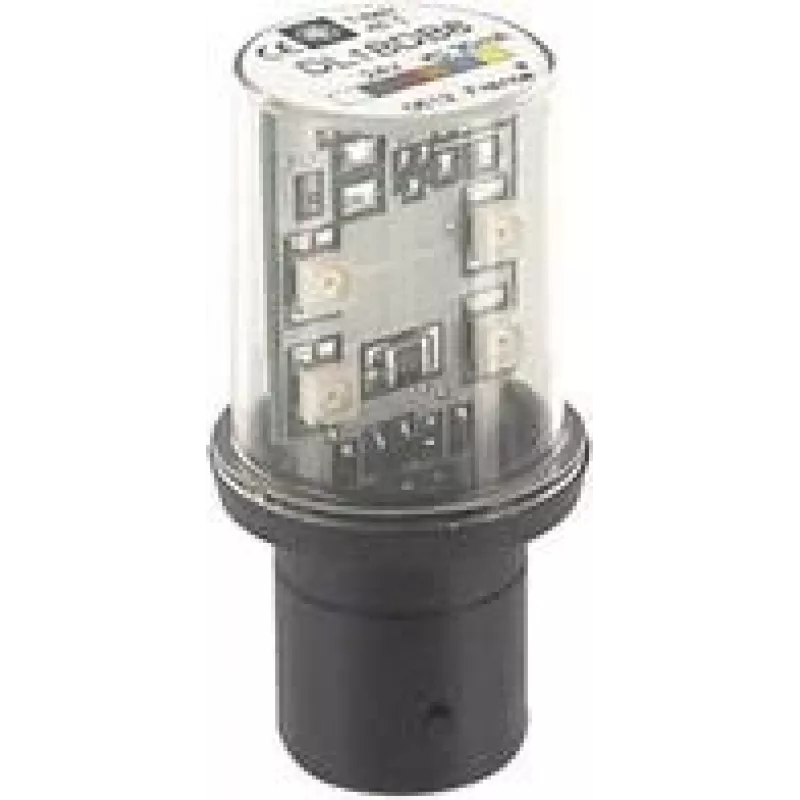

Schneider Electric DL1BDB8 is a 24V LED indicator light designed for control panels, switchgear and industrial machinery. It provides clear visual signalling at 24 volts, fits standard panel cutouts and offers long service life with low power consumption. The indicator is intended for status indication, alarms and operational feedback in electrical installations where reliable low-voltage signalling is required.

Advantages

The DL1BDB8 indicator delivers consistent illumination with low energy consumption and extended lifetime typical of LED technology. Its compact design fits standard panel openings for straightforward installation and replacement. Manufactured by Schneider Electric, the unit conforms to industry expectations for durability and reliable performance in control applications.

Suitable for

Key specifications

How to use

Install the DL1BDB8 in the appropriate panel cutout according to the panel manufacturer’s dimensions. Connect the 24V supply to the indicator terminals observing correct polarity and wiring standards for the installation. Verify illumination and function during commissioning and include the indicator in routine maintenance checks to ensure continued signalling performance.

Recommendations

Use the DL1BDB8 with a regulated 24V supply and appropriate overcurrent protection. Follow Schneider Electric mounting and wiring instructions and apply environmental protection if installed in harsh conditions.
