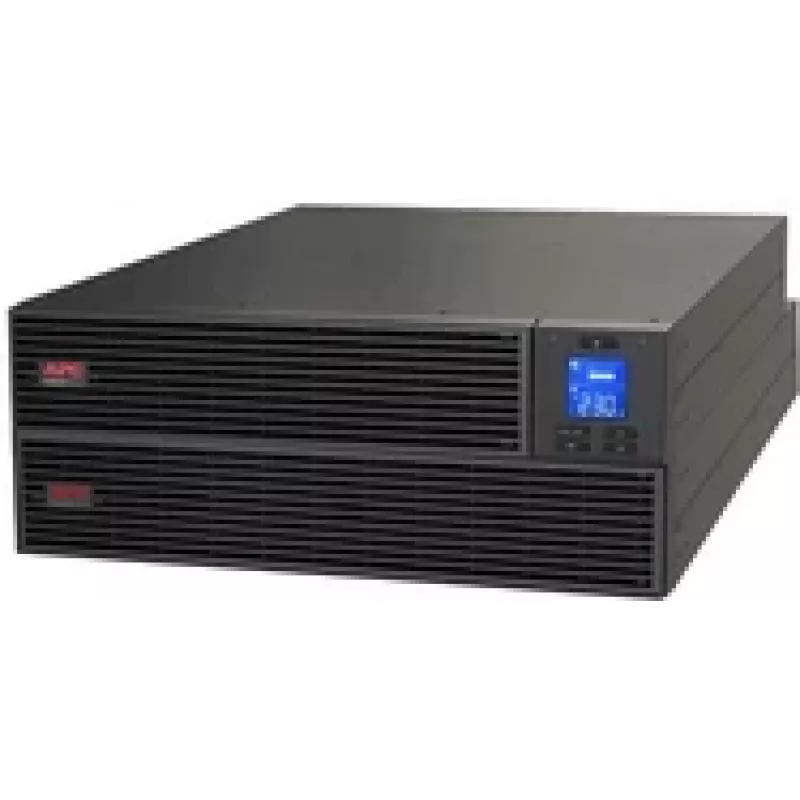

APC Easy UPS SRV RM 10000VA 230V with RailKit External Battery Pack (SRV10KRIRK)

The APC Easy UPS SRV SRV10KRIRK is a 10000VA / 10000W online double-conversion UPS designed for rackmount installation. It provides reliable, sine wave power protection for critical equipment in data centers, server rooms, and industrial environments. With a 9U rack height, this UPS includes a RailKit for easy integration and supports external battery packs for extended runtime.

Advantages

Online double-conversion topology ensures zero transfer time to battery, protecting against all power disturbances. High efficiency of 94% reduces energy costs. Internal bypass (automatic and manual) and Emergency Power Off (EPO) enhance safety and serviceability.

Suitable for

• Servers and network equipment
• Storage systems
• Telecommunications gear
• Industrial control systems

Key specifications

• Output Power Capacity: 10000 VA / 10000 Watts
• Nominal Output Voltage: 230V
• Input Connection: Hard Wire 3-wire (1PH+N+G)
• Output Connections: (1) Hard Wire 3-wire (H N + G), (1) Hard Wire 5-wire (3PH + N + G)
• Output Waveform: Sine Wave
• Battery Type: Sealed Lead Acid
• Typical Recharge Time: 3 hours
• Management Interface: USB, RS-232 Serial, SmartSlot
• Form Factor: Rackmount
• Rack Height: 9U
• Noise Level: 60 dBA
• Operating Temperature: 0 - 40 °C

Recommendations

For optimal performance, use with APC external battery packs (sold separately) to extend runtime. Ensure proper ventilation and follow installation guidelines in the user manual.
