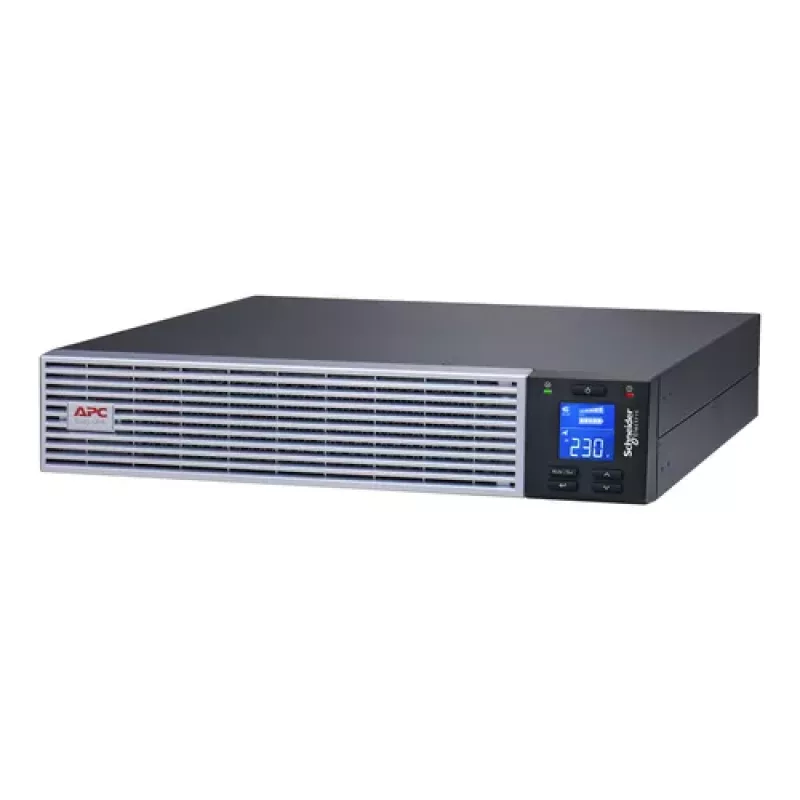

APC Easy UPS On-Line SRVL 1000 VA 800 W Double Conversion UPS (Rack-Mountable)

The APC Easy UPS On-Line SRVL is a high-performance double conversion online UPS designed to provide reliable, clean power protection for critical equipment in rack environments. With 1000 VA / 800 W output capacity, it ensures seamless power backup and surge protection for servers, network switches, and other sensitive electronics.

Advantages

Double conversion topology delivers pure sine wave output, isolating connected devices from all power disturbances including surges, sags, and frequency variations. The 2U rack-mountable design saves valuable floor space and integrates easily into standard 19-inch racks. Automatic voltage regulation and wide input frequency range ensure stable operation even in challenging power conditions.

Suitable for

• Small to medium business server rooms
• Network and telecommunications equipment
• Data storage systems
• Point-of-sale and industrial control systems

Key specifications

• UPS Topology: Online / Double-Conversion
• Output Power Capacity: 1000 VA / 800 Watts
• Nominal Output Voltage: 230 V
• Output Connections: 4 x IEC 320 C13 (Battery Backup)
• Input Connection: 1 x IEC 320 C14
• Battery Type: Maintenance-free sealed Lead-Acid
• Typical Recharge Time: 4 hours
• Runtime (Half Load): 10 minutes (400 W)
• Runtime (Full Load): 3 minutes (800 W)
• Rack Height: 2U
• Management Ports: USB, Serial (RJ45)
• Efficiency (Full Load): 88% (Online Mode)
• Operating Temperature: 0 - 40 °C
• Audible Alarm: Yes
• Included Cables: 1 x IEC 320 C13 to C14 power cable, 1 x USB cable

Recommendations

For optimal performance, install the UPS in a well-ventilated rack and connect only critical loads. Regularly test battery runtime and replace batteries every 3-5 years as needed. Use the included USB cable for monitoring via APC PowerChute software.
