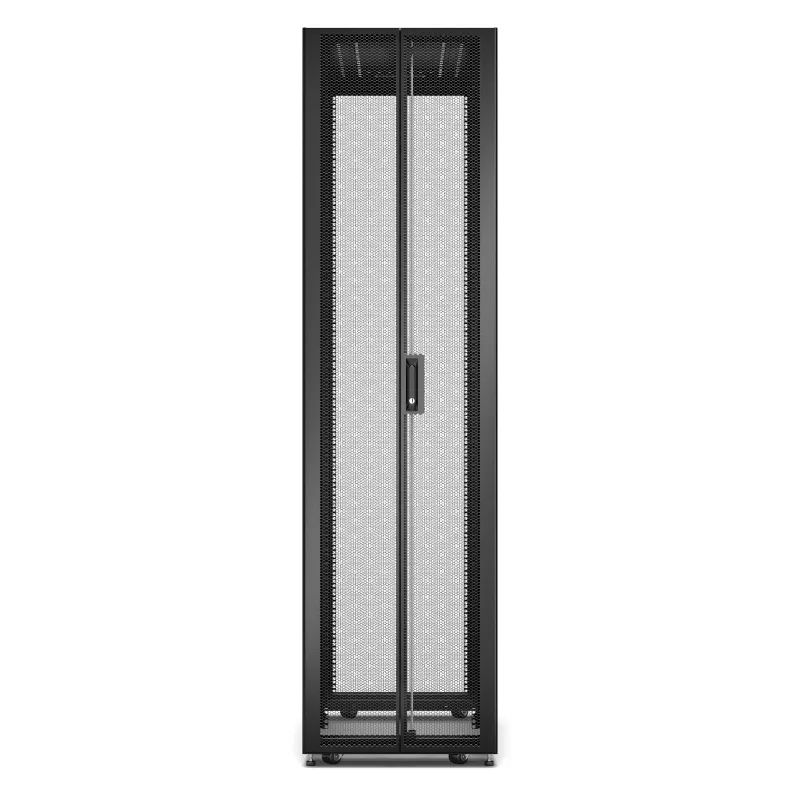

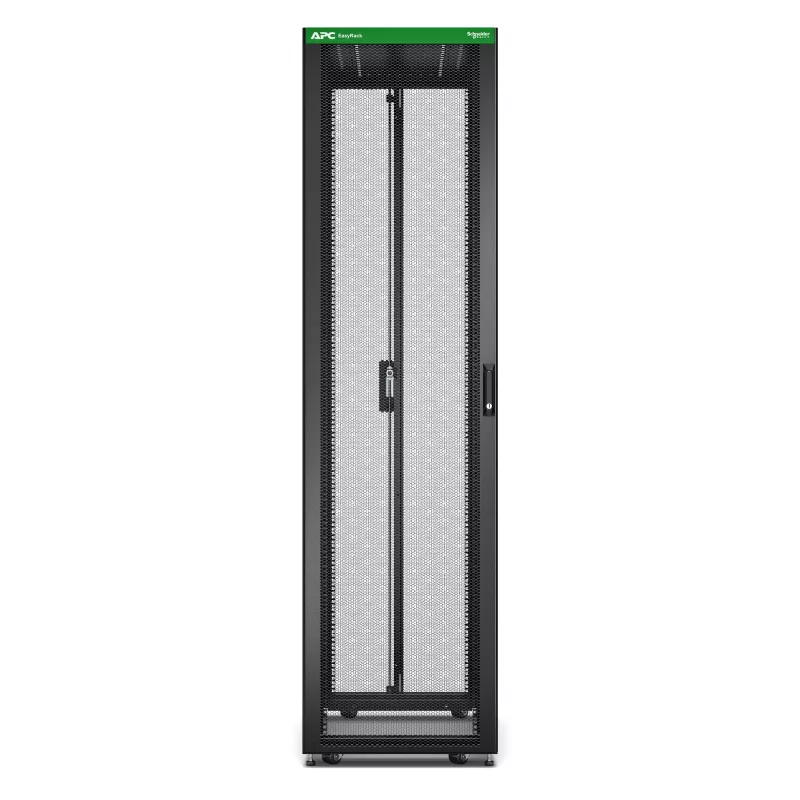

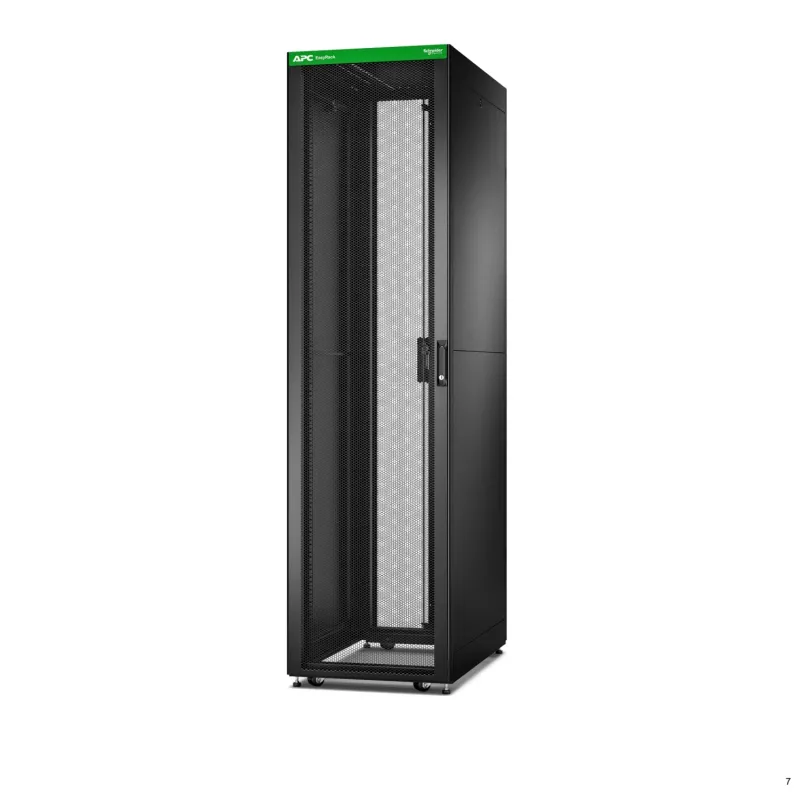

APC Easy Rack, 48U, Black, With Roof, Castors, Feet, 4 Brackets, and Side Panels, No Bottom, 2258H x 600W x 1000D mm

The APC Easy Rack ER6802 is a freestanding 48U IT enclosure built to EIA-310 standard for reliable equipment storage in data centers and server rooms. The cabinet measures 2258 mm high, 600 mm wide and 1000 mm deep, and ships with roof, keys, levelling feet, casters, side panels, mounting hardware and PDU mounting brackets. It is available fully assembled or unassembled for onsite assembly and includes integrated electrical grounding and UL 2146 certification.

Advantages

The design provides strong static and dynamic load ratings (1200 kg static, 600 kg dynamic) and 81% perforated front and rear doors for improved ventilation. The multifunctional roof and rear accessory brackets enable organized cable routing and tool-less accessory installation. Compatibility with APC EcoStruxure IT allows remote monitoring of on-premise and distributed IT infrastructure. Tested for combination with bolt-down accessories for seismic requirements, the rack supports quick deployment and straightforward accessorizing for PDUs, cooling and cable management.

Suitable for (tasks / use cases)

• Data centers and server rooms
• Network closets and telecommunications equipment
• Edge computing and distributed IT installations
• Environments requiring remote monitoring with EcoStruxure IT

Key specifications

• Model: APC Easy Rack ER6802
• Rack capacity: 48U
• Dimensions (H×W×D): 2258 × 600 × 1000 mm
• Maximum weight capacity: 1199.75 kg (product weight: 113.2 kg)
• Mounting depth (max): 838 mm
• Doors: front and rear 81% perforation for ventilation
• Included: roof, keys, levelling feet, casters, side panels, mounting hardware, PDU mounting brackets (no bottom)
• Certifications and features: UL 2146, integrated electrical grounding

How to use

Position the freestanding rack on a level surface and secure levelling feet or casters as needed. If shipped unassembled, follow the provided assembly instructions to attach side panels, roof and doors before installing equipment. Route power and network cabling through the multifunctional roof openings and rear accessory brackets, and install PDUs and cable-management accessories using the provided mounting brackets and tool-less features. Ensure all equipment is mounted to EIA-310 rails and distribute weight to maintain stability.

Recommendations

For safe operation, verify grounding continuity to the frame and follow local seismic and electrical installation standards when combining with bolt-down accessories; monitor rack environmental parameters via EcoStruxure IT where required.
