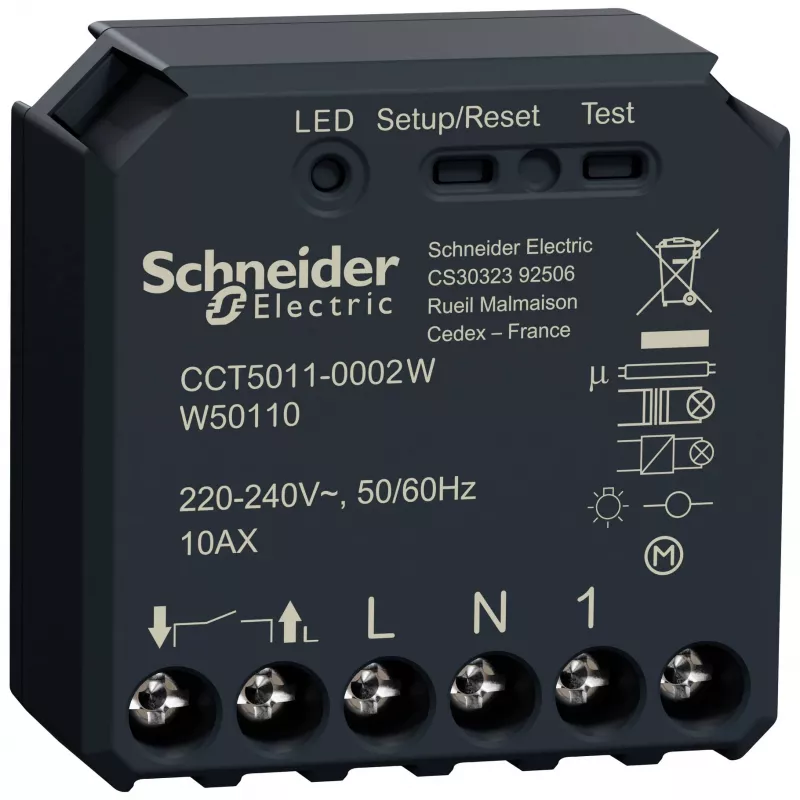

APC CCT5011-0002W Wiser Switching Actuator 1-Gang Flush-Mounted

The APC CCT5011-0002W Wiser Switching Actuator is a 1-gang flush-mounted device designed for reliable on/off control of lighting and electrical loads within the Schneider Electric Wiser Home System. It utilizes Zigbee 3.0 communication for seamless integration into smart home networks.

Advantages

Compact flush-mounted design for discreet installation. Supports resistive, inductive, and capacitive loads up to 2300 VA, as well as LED loads up to 200 W. Easy integration with the Wiser ecosystem for remote control and automation.

Suitable for

• Smart home lighting control
• On/off switching of electrical appliances
• Integration into Schneider Electric Wiser systems

Key specifications

• Device Type: Switching Actuator
• Number of Channels: 1-gang
• Mounting Type: Flush-mounted
• Communication Protocol: Zigbee 3.0
• Rated Operational Voltage: 230 V AC
• Rated Current: 10 A
• Max Resistive Load: 2300 W (at 230 V AC)
• Max Inductive Load: 2300 VA (at 230 V AC)
• Max Capacitive Load: 2300 VA (at 230 V AC)
• Max LED Load: 200 W (at 230 V AC)
• Operating Frequency: 50 Hz
• Operating Temperature: 0...40 °C
• IP Protection Rating: IP20
• Terminal Type: Screw terminals
• Cable Capacity: 1.5 - 2.5 mm²
• Local Indication: LED status indicator (Green/Red)

Recommendations

For optimal performance, use within the Schneider Electric Wiser Home System. Ensure proper flush-mounted installation by a qualified electrician.
