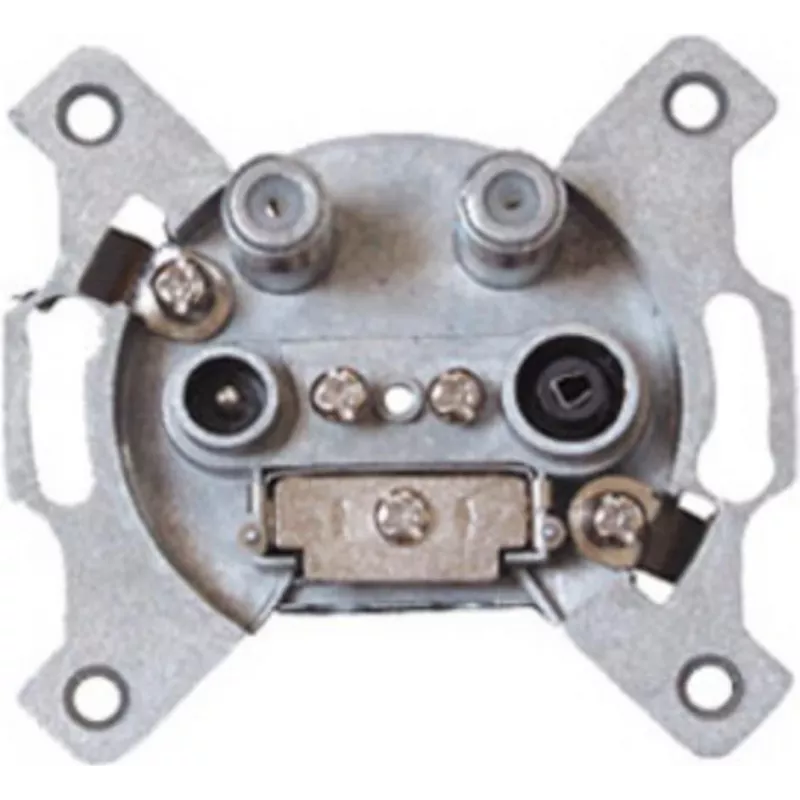

Antenna Socket ShiverPeaks 83906-1L BK+2 SAT — coax wall outlet for terrestrial and two satellite connections

The ShiverPeaks Antenna Socket 83906-1L BK+2 SAT is a coaxial wall outlet designed to terminate one terrestrial (broadcast) antenna and two satellite feeds in a single indoor plate. It provides three labeled F-type/coax ports for easy connection of television receivers, set-top boxes and satellite tuners. The outlet is intended for flush mounting in home or small-office AV installations and allows separate distribution of terrestrial and satellite RF signals to connected devices.

Advantages

This antenna socket offers a compact, single-plate solution for combined terrestrial and dual-satellite connections, reducing wall clutter and simplifying installation. The dedicated ports maintain signal separation so that terrestrial and satellite feeds do not interfere with each other. The product's housing and connector layout are optimized for standard F-type coax cables, enabling straightforward, reliable terminations and easy compatibility with common AV equipment.

Suitable for

• Home TV installations requiring one broadcast and two satellite feeds
• Small office AV environments with multiple receivers or set-top boxes
• Wall-mounted RF terminations where a combined terrestrial and dual-satellite outlet is needed

Key specifications

• Connection type: F-type/coaxial ports for terrestrial (broadcast) and satellite signals
• Ports: one terrestrial (broadcast) output and two satellite outputs
• Installation: indoor, flush wall mounting on standard mounting boxes
• Signal separation: dedicated outputs to prevent cross-feed between terrestrial and satellite
• Typical insertion loss: low (approx. 1 dB for distribution path as indicated by manufacturer data)

How to use

Mount the socket on a compatible flush mounting box following local electrical and building regulations. Connect the incoming terrestrial antenna cable to the terrestrial-labeled port and each satellite feed to the satellite-labeled ports using F-type coax connectors. Attach the outgoing coax cables from the outlet to televisions, satellite receivers or set-top boxes. Ensure all connectors are tightened securely and test signal levels on connected devices to verify proper reception for both terrestrial and satellite services.

Recommendations

Use quality coaxial cables and properly fitted F-type connectors to minimize signal loss. If signal strength is marginal, consider a line amplifier or professional signal measurement and adjustment. Avoid exposing the outlet to moisture and install it in a dry indoor location to maintain connector integrity and long-term performance.
