Antenna Kathrein ZTC 05

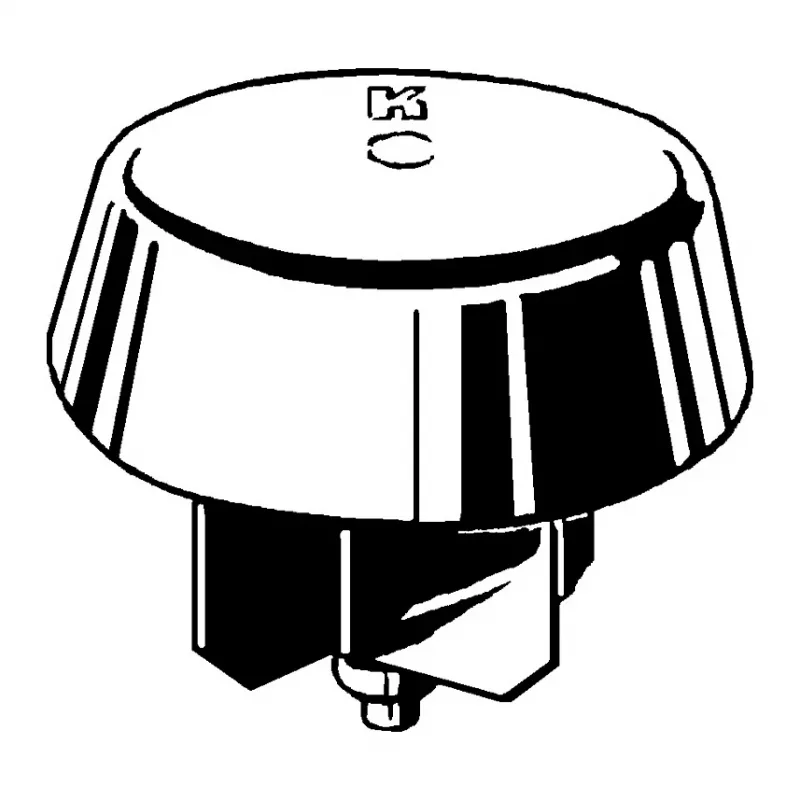

The Kathrein ZTC 05 mast tip cap is a compact accessory designed for mast diameters 32–48 mm. It complements antenna installations by providing a secure, lightweight cap that helps position and protect the antenna at the mast top. The unit weighs approximately 400 g and has an outer diameter of 3.2 cm, making it suitable for installations where minimal weight and compact dimensions are required.

Advantages

The Kathrein ZTC 05 offers a combination of small size and low weight that simplifies installation and handling. Its design fits a range of mast diameters (32–48 mm), allowing compatibility with common mast profiles. The product’s compact form helps reduce wind load and makes it easier to achieve optimal antenna positioning at the mast tip.

Suitable for

Key specifications

How to use

Place the mast tip cap on the mast top ensuring the mast diameter falls within the specified 32–48 mm range. Center the cap and secure it according to the mast or antenna manufacturer’s mounting instructions. Verify that the antenna attached to or positioned with the cap is aligned for optimal reception and that all fasteners are tightened to prevent movement in wind.

Recommendations

Use the Kathrein ZTC 05 on masts within the specified diameter range and follow standard outdoor antenna installation practices: check tightness of fixings periodically, ensure corrosion protection where needed, and avoid mounting in locations with extreme mechanical stress.
