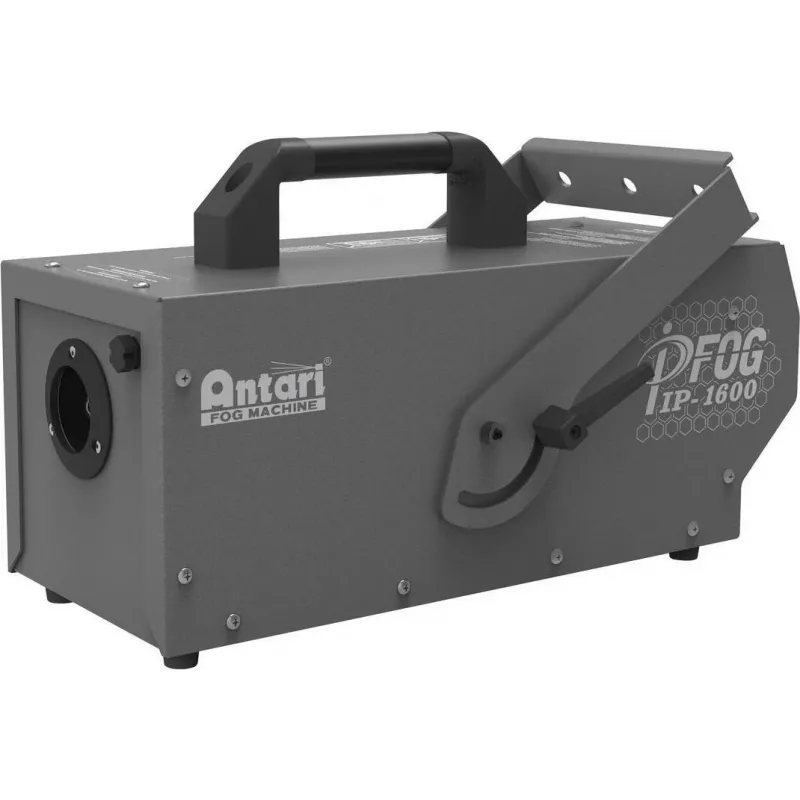

ANTARI IP-1600 IP63 Professional Fog Machine 1600W, 5L Tank, DMX, PowerCON TRUE1 51702816

Large venues and outdoor events demand atmospheric effects that can keep up with the scale of the space. The ANTARI IP-1600 answers that call with a powerful 20,000 cu.ft/min fog output and a rugged IP63-rated housing built to shrug off dust and rain. A 5-litre fluid tank and 1600 W heating element deliver dense, long-lasting fog without constant refills, while DMX512, manual, and timer controls give you flexible triggering options for any production.

Who is it for

This machine is ideal for rental companies, touring productions, theme parks, and outdoor festivals that need a reliable, weather-resistant fog generator. It is equally at home in theatres, clubs, and large indoor venues where high output and low maintenance are essential.

Main features

• IP63-rated robust metal housing for outdoor and dusty environments
• High output: 20,000 cu.ft/min with 120 ml/min fluid consumption at 100%
• Large 5-litre tank for extended operation
• DMX512 (1 channel), manual, and built-in timer control modes
• Neutrik powerCON TRUE1 power input for secure, locking connection
• 3-pin and 5-pin XLR DMX in/out for flexible signal routing
• Low-fluid sensor and over-temperature protection for safe operation
• Floor or truss mountable with included bracket

Specifications

• Power consumption: 1600 W
• Voltage: AC 230 V, 50 Hz
• Warm-up time: approx. 10 minutes
• Fluid tank capacity: 5 L
• Fluid consumption: 120 ml/min at 100% output
• Output volume: 20,000 cu.ft/min
• DMX channels: 1
• IP rating: IP63
• Housing material: metal
• Recommended fluid: Antari FLG / FLC water-based fog fluid
• Connectors: Neutrik powerCON TRUE1, 3-pin XLR in/out, 5-pin XLR in/out

Tips

For best results, use only Antari FLG or FLC water-based fog fluid to protect the heat exchanger and ensure consistent output. When using outdoors, position the machine away from direct rain and ensure the powerCON TRUE1 connector is fully locked. Clean the machine regularly according to the manual to maintain peak performance and longevity.
