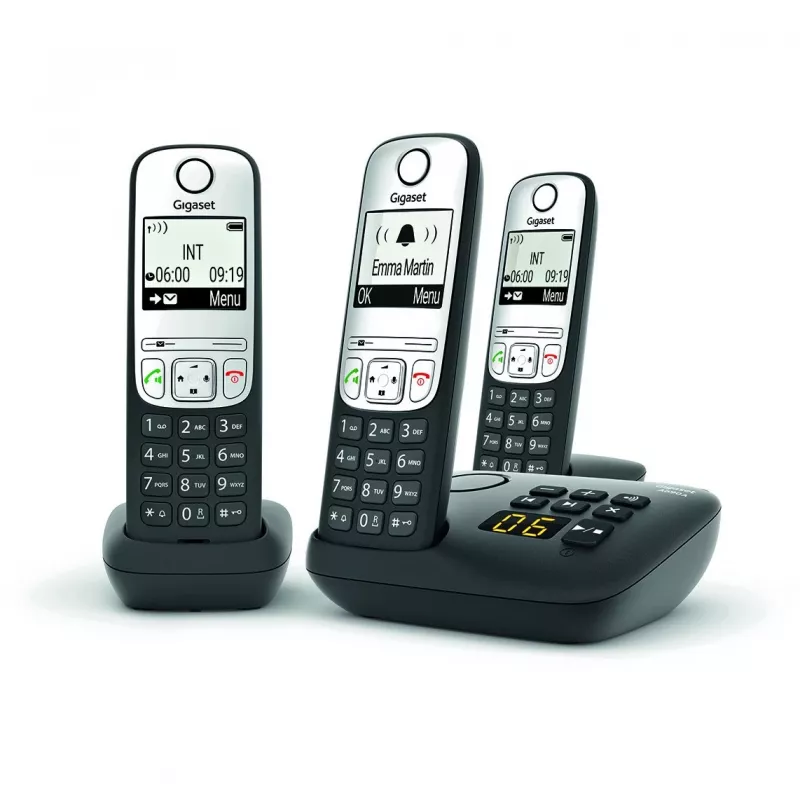

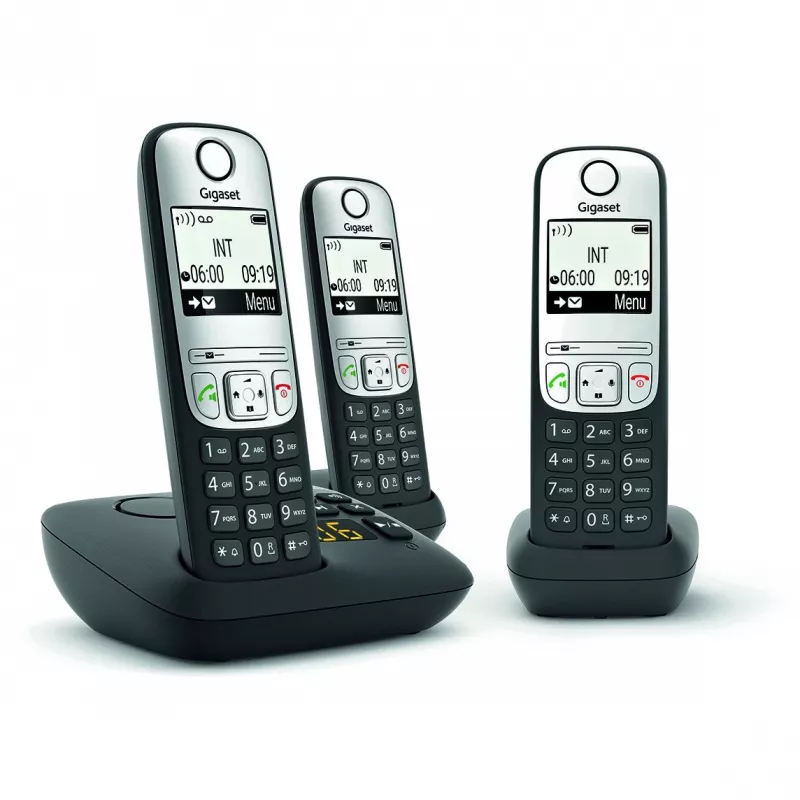

Analog/DECT telephone Gigaset A690A Trio

The Gigaset A690 is a DECT cordless phone designed for clear voice quality and easy operation. It offers handset and hands-free calling with two adjustable hands-free profiles to balance high and low frequencies. The phone features a large illuminated monochrome graphic display, an ergonomic illuminated keypad and intuitive controls. Built-in phonebook, call list and long battery life support everyday use, and the A690A variant includes an integrated digital answering machine that stores up to 20 minutes of messages. The device supports expansion with up to four additional handsets and uses ECO DECT technology to reduce radiation in standby and adapt transmission power during calls.

Advantages

Excellent audio quality with selectable hands-free profiles and reliable speaker performance for clear conversations. User-friendly operation thanks to a high-contrast illuminated display, large numeric view in dialling mode and an ergonomic backlit keypad. Call management features include a blacklist for up to 32 numbers, anonymous-call blocking and configurable do-not-disturb time periods. Practical phonebook for up to 100 entries, automatic listing of the last 25 calls with numbers and timestamps, and long runtime with up to 14 hours talk time and 180 hours standby. Expandable system for up to four handsets and, on the A690A model, a built-in answering machine with up to 20 minutes of message storage and battery-protected recordings.

Key specifications

• Technology: DECT cordless phone with ECO DECT support
• Display: Large illuminated black-and-white graphic display
• Hands-free: Handset and hands-free mode with two adjustable profiles
• Phonebook capacity: Up to 100 names and numbers
• Call list: Last 25 calls with number and time
• Blacklist: Up to 32 numbers; anonymous-call blocking
• Talking time: Up to 14 hours
• Standby time: Up to 180 hours
• Answering machine (A690A): Up to 20 minutes of message storage; messages retained during power loss; personalised outgoing message
• Expandable: Supports up to 4 additional handsets

How to use

Charge the handset fully before first use and register it with the base if additional handsets are added. Make calls using the handset or select hands-free mode to allow others to listen; choose one of the two hands-free profiles to adjust higher or lower frequency emphasis for comfortable audio. Manage contacts using the integrated phonebook and dial directly from saved entries. Use the blacklist function to block up to 32 unwanted numbers or enable anonymous-call blocking; set time periods when the phone should not ring. If using the A690A model, record a personalised outgoing message on the answering machine and retrieve messages from the handset, base or remotely.

Recommendations

For best reception and lowest radiation during calls, keep the handset close to the base; disable ECO DECT only when maximum DECT range is required. Regularly back up important contacts and use the blacklist and anonymous-call blocking to reduce unwanted interruptions.
