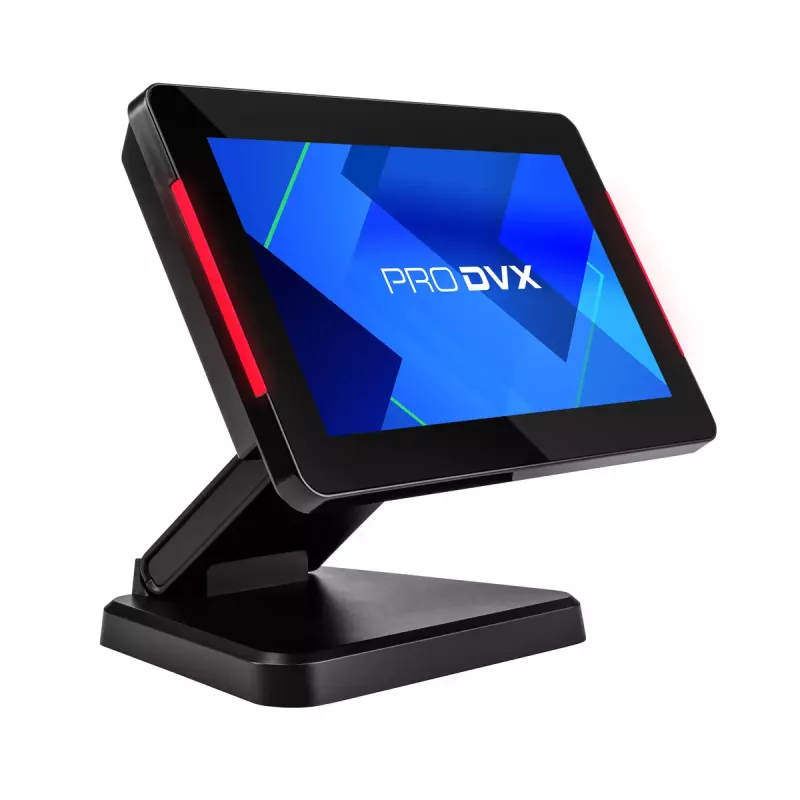

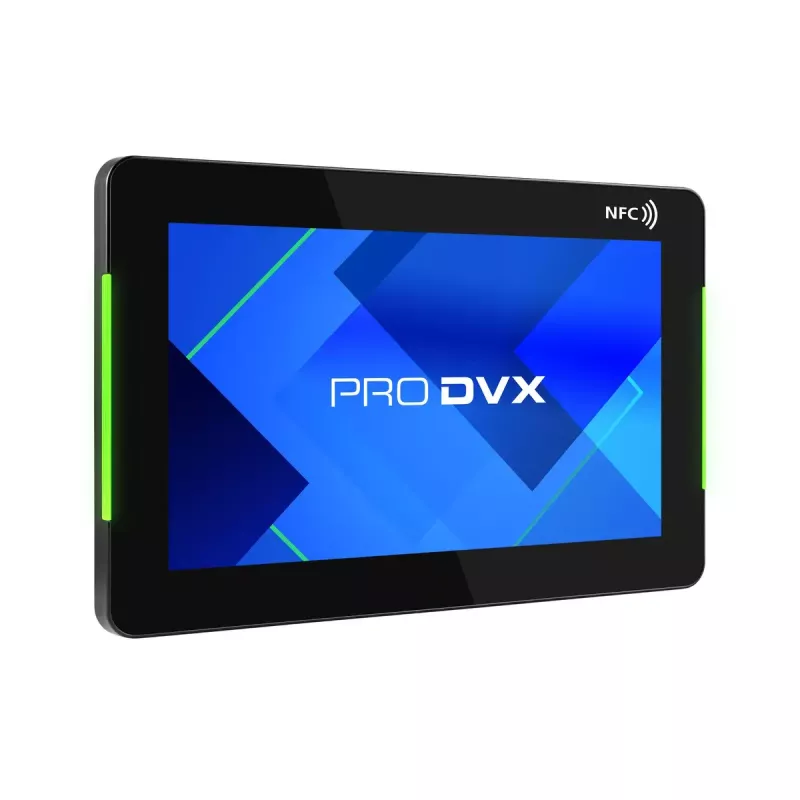

All-in-One tablet PC ProDVX APPC-7XPLN-R23 7 inch Touchscreen TFT 1024 x 600

The ProDVX APPC-7XPLN-R23 is a 7-inch All-in-One tablet PC running Android 12 with a 1024 x 600 TFT touchscreen. It is powered by a Rockchip RK3568 quad-core Cortex-A55 CPU and Mali-G52 GPU, and comes with 4 GB DDR4 RAM and 16 GB eMMC storage. The unit supports IEEE 802.3at PoE+ and Wi‑Fi 5 (802.11ac), features 10-point PCAP touch with anti-glare treatment, integrated NFC, dual-sided RGB LED status lights, VESA mounting and built-in speakers, making it suitable for retail, corporate and industrial installations.

Advantages

Compact 7-inch form factor with a capacitive 10-point touchscreen and anti-glare coating provides clear viewing and reliable touch interaction. The RK3568 platform (quad-core Cortex-A55, Mali-G52) delivers smooth Android 12 performance for typical kiosk and HMI applications. PoE+ support simplifies installation by combining power and network over a single Ethernet cable, while VESA mounting and multiple I/O options enable flexible deployment. Integrated NFC and status LEDs add functionality for access control and device monitoring.

Suitable for

• Retail point-of-sale terminals and information kiosks
• Corporate reception desks and meeting-room control panels
• Industrial HMI and process monitoring with compact space requirements
• Access control and contactless interactions using NFC

Key specifications

• Display: 7" TFT, 1024 x 600 pixels, 10-point PCAP touch, anti-glare
• Processor: Rockchip RK3568 (quad-core Cortex-A55) with Mali-G52 GPU
• Memory & Storage: 4 GB DDR4 RAM, 16 GB eMMC
• Operating system: Android 12
• Connectivity: IEEE 802.3at PoE+, Wi‑Fi 5 (802.11ac), Ethernet and multiple I/O ports

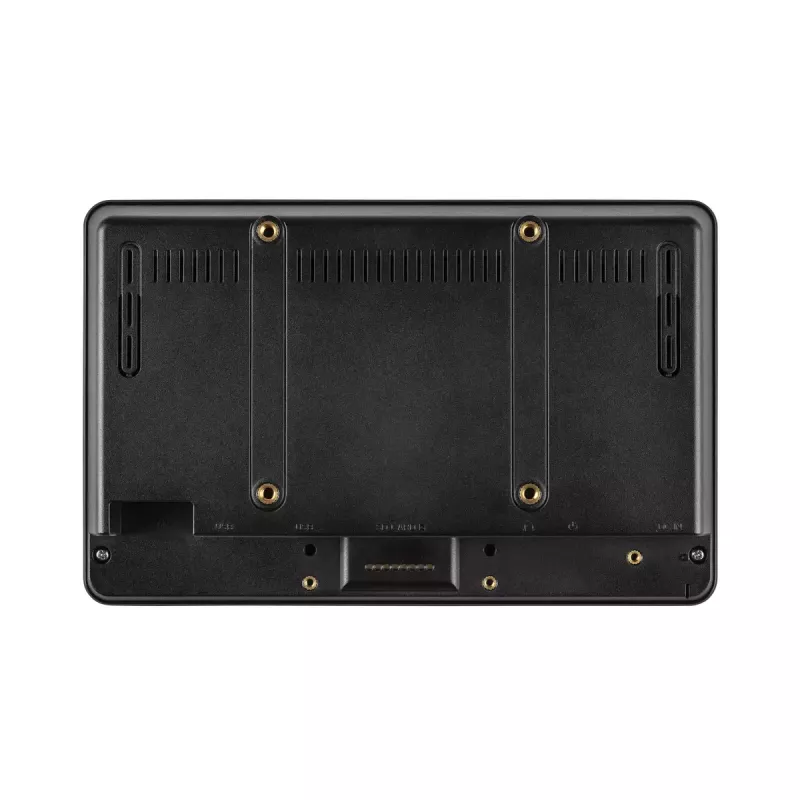

• Mounting: VESA compatible
• Additional: Integrated NFC, dual-sided RGB LED status lights, built-in speaker(s)
• Colour & weight: Black, 0.5 kg

How to use

Mount the APPC-7XPLN-R23 using a compatible VESA bracket or place it in a desk or panel cut-out where appropriate. Connect a single IEEE 802.3at PoE+ Ethernet cable to provide both power and network access, or use available power and data I/O if PoE+ is not used. Configure Wi‑Fi and Android 12 settings through the on-screen interface. Use the 10-point PCAP touchscreen for navigation and integrate NFC-based workflows where required. Refer to your system integrator or the product manual for details on peripheral wiring and I/O pinouts.

Recommendations

For reliable long-term operation, provide stable PoE+ power or a regulated alternative power source, ensure adequate ventilation in enclosed installations, and use mounting hardware rated for the device weight and environment. Keep firmware and Android updates current to maintain security and compatibility with apps.
