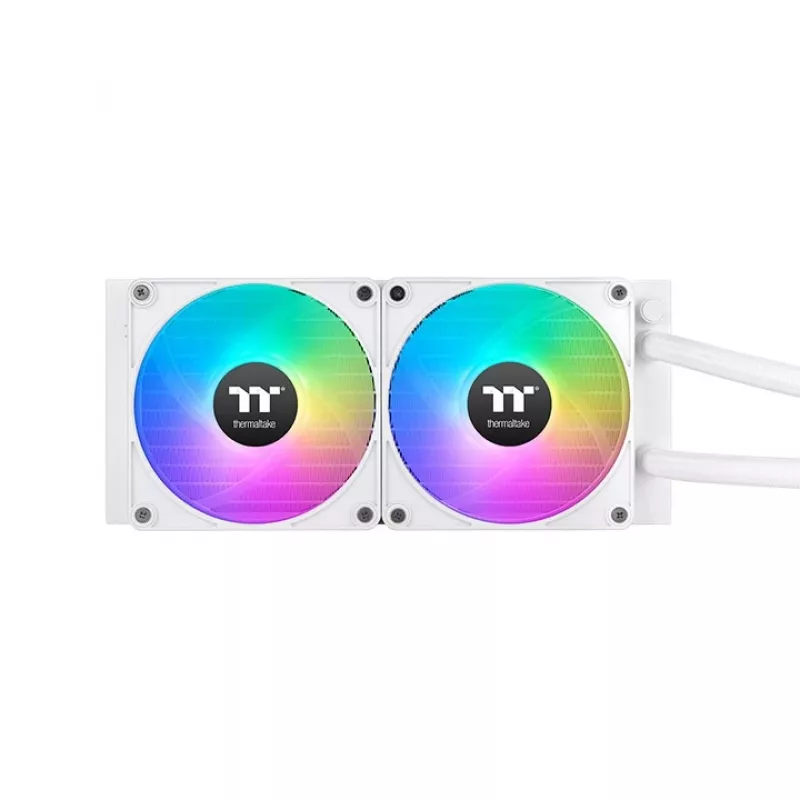

All-in-one liquid cooler Thermaltake TH240 V2 Ultra EX ARGB

The Thermaltake TH240 V2 Ultra EX ARGB is a 240 mm all-in-one liquid cooler designed for efficient CPU cooling in desktop systems. It features a slim 27 mm radiator with a 20 mm thickened copper chamber, a high-performance copper base plate, and a reliable pump for continuous coolant circulation. The unit includes CT EX ARGB fans with MagForce 2.0 quick connect, an integrated 2.1" 480×480 LCD display, and support for motherboard RGB synchronization via 5V addressable headers.

Advantages

MagForce 2.0 provides a steadier magnetic pogo-pin connection that simplifies daisy-chaining and reduces alignment faults, minimizing cable clutter with an easy quick-connect design. The compact radiator and enlarged copper chamber improve cooling efficiency while keeping installation straightforward. The copper base plate and efficient pump maintain heat transfer and coolant circulation without frequent refills. A customizable 2.1" LCD with 480×480 resolution supports 16.8M colors for videos or images, and TT RGB Plus 2.0 or motherboard RGB software lets you monitor temperatures and adjust visuals.

Suitable for

• Gaming desktops requiring effective CPU cooling
• PC builds where ARGB lighting and a customizable LCD are desired
• Systems with 5V addressable RGB headers for synchronized lighting
• Builders seeking reduced cable clutter and easy fan installation

Key specifications

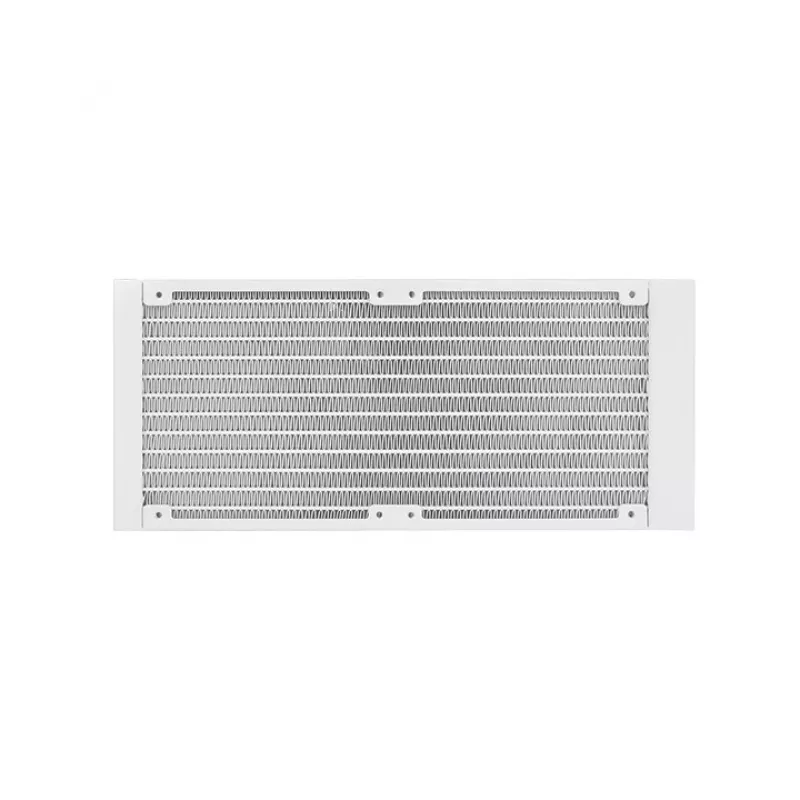

• Radiator: 240 mm, 27 mm slim profile with 20 mm copper chamber
• Fans: CT EX ARGB (CT120 EX ARGB Sync White), 500–2000 RPM, up to 68 CFM, 2.95 mm-H2O static pressure, 28.5 dB-A noise
• Pump and base: high-performance pump, copper base plate

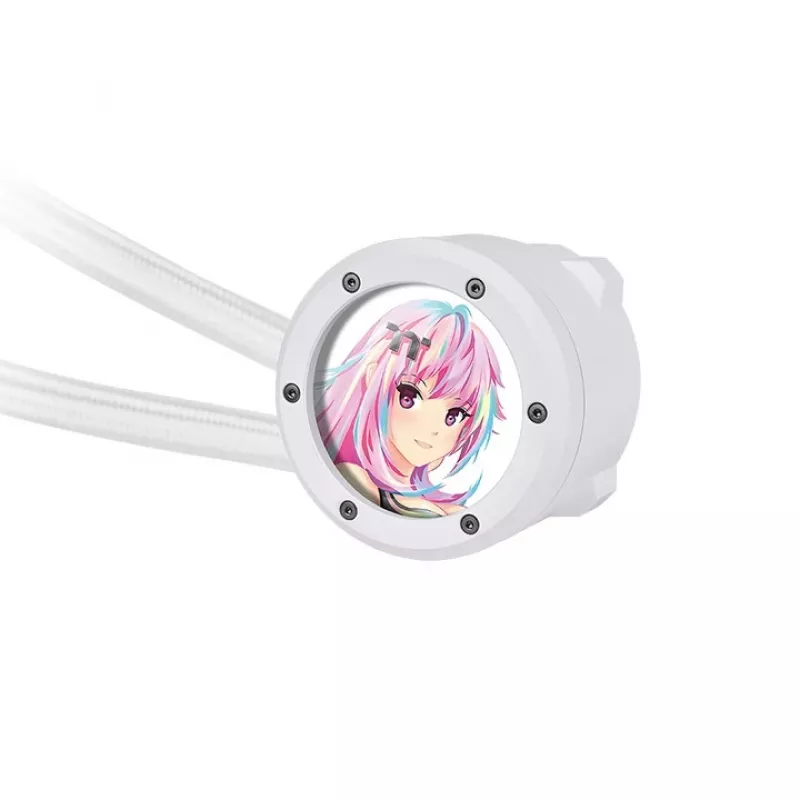

• Display: 2.1" LCD, 480×480 resolution, 16.8M colors
• Connectivity: MagForce 2.0 quick connect; supports 5V addressable RGB (ASUS Aura, GIGABYTE RGB Fusion, MSI Mystic Light, ASRock Polychrome)
• Brand/Model: TH240 V2 Ultra EX ARGB (THERMALTAKE, MPN CL-W425-PL12SW-A, EAN 4711475644571)

How to use

Install the radiator and fans into a compatible case mounting location following your case manual. Connect CT EX fans using the MagForce 2.0 quick connect or the provided individual cables as needed. Mount the pump unit to the CPU using the supplied mounting hardware and thermal paste, then connect the pump power and ARGB cables to the motherboard or controller. Use TT RGB Plus 2.0 or your motherboard RGB software to configure lighting and upload images or GIFs to the 2.1" LCD.

Recommendations

For optimal performance, ensure good case airflow, verify compatibility with your motherboard's 5V ARGB header, and use the included mounting parts. Regularly check for secure cable and magnet connections and keep the radiator fins free of dust for sustained cooling efficiency.
