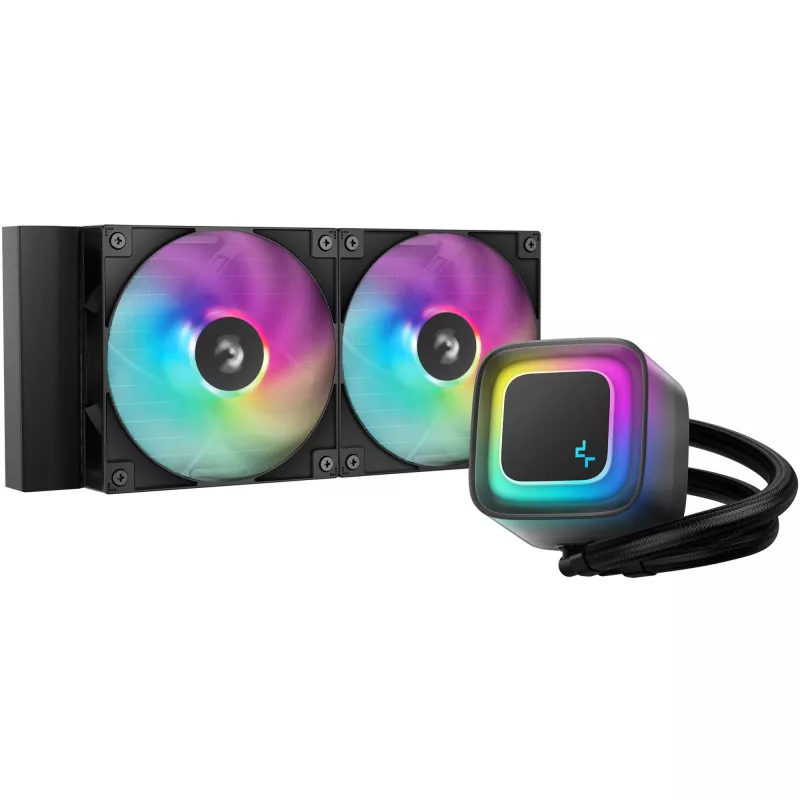

All-in-one liquid cooler DeepCool LE240 V2 240mm, 2x120mm fans, Hydraulic bearing, AM5 support, 41 cm tubes, Black

The DeepCool LE240 V2 is an all-in-one liquid cooler that updates the LE series with improved performance and a refreshed appearance. It uses a frosted pump head for a diffused light effect and comes with pre-installed 120 mm Hydro Bearing ARGB fans and mounting hardware for mainstream CPU sockets, providing straightforward installation and reliable thermal management.

Advantages

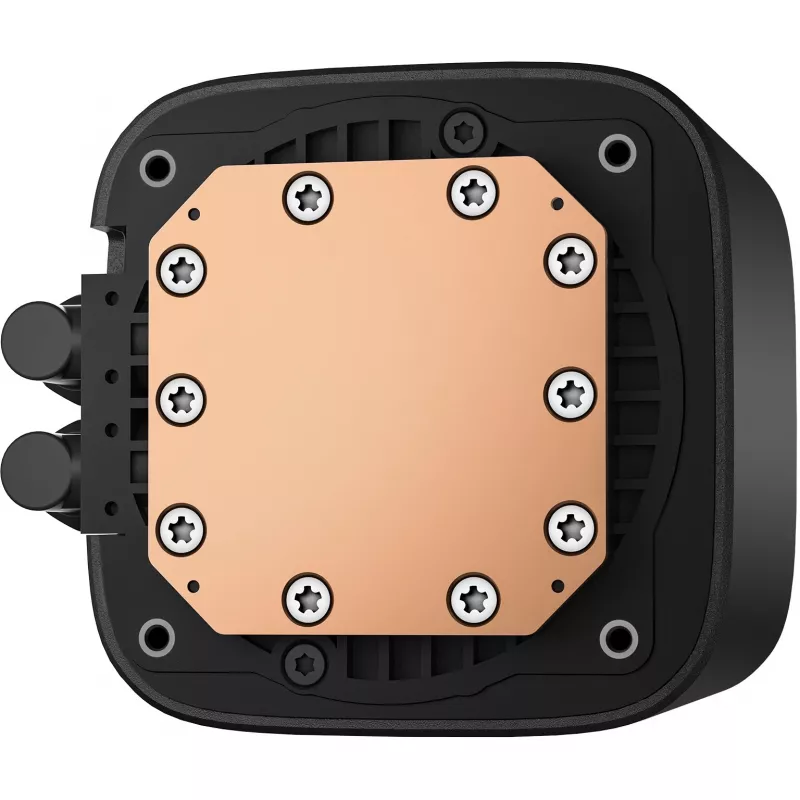

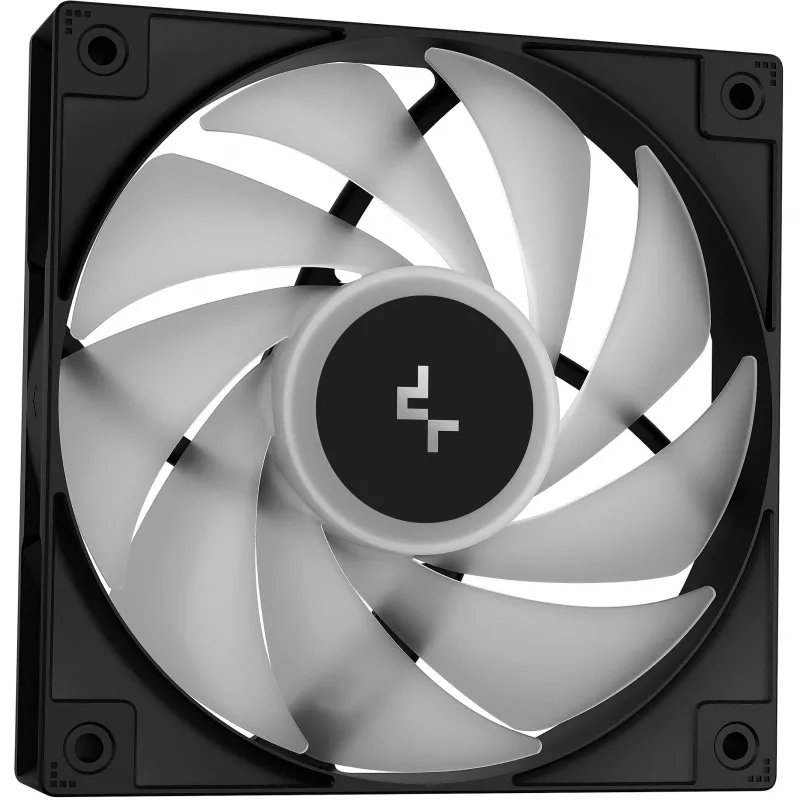

The frosted pump head produces a soft, even glow that integrates into a variety of builds while the minimalist logo plate can be customized or left blank. The pump uses a 3-phase, 6-slot, 4-pole motor with up to 3400 RPM and PWM control via a 4-pin connector for efficient, quiet operation. Included hydraulic-bearing ARGB fans deliver steady airflow and lower noise. DeepCool’s patented Anti-Leak Technology helps regulate internal pressure to reduce the risk of leaks and extend service life.

Suitable for

• Entry-level and mainstream desktop PC cooling
• System builders seeking a compact 120 mm radiator solution
• Users who want ARGB lighting with a subtle frosted pump effect
• Systems using supported Intel and AMD sockets (LGA 1150/1151/1155/1200/1700/1851, AM4, AM5)

Key specifications

• Type: All-in-one liquid cooler
• Fan diameter: 120 x 120 x 25 mm
• Fan airflow/pressure: 75.89 CFM / 2.53 mmH2O (Hydraulic bearing)
• Pump motor: 3-phase, 6-slot, 4-pole, up to 3400 RPM; PWM control via 4-pin cable
• Colour: Black
• Supported sockets: LGA 1150 (H3), LGA 1151 (H4), LGA 1155 (H2), LGA 1200 (H5), LGA 1700, LGA 1851, Socket AM4, Socket AM5

How to use

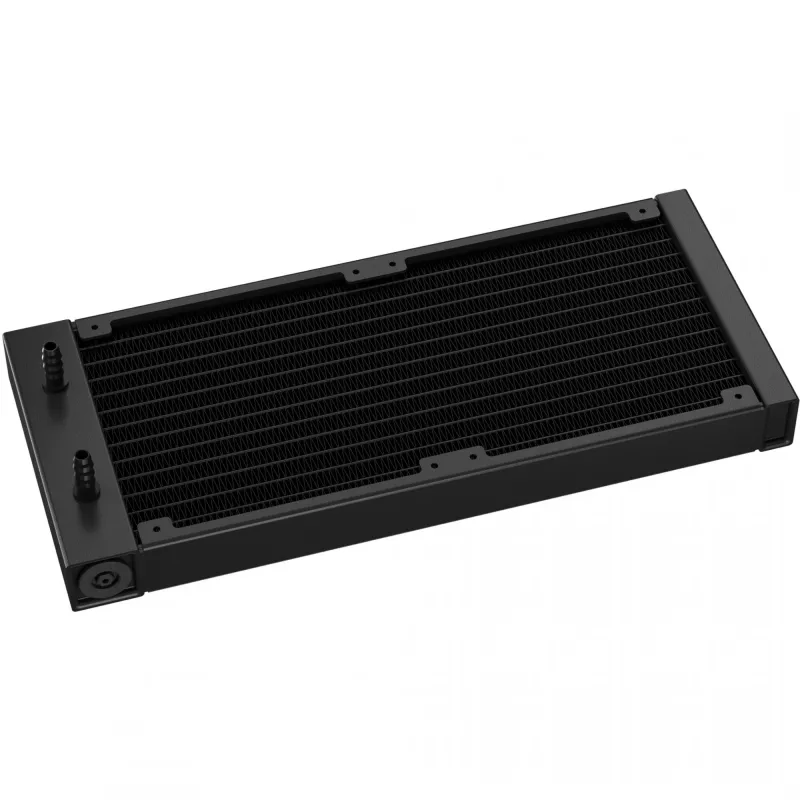

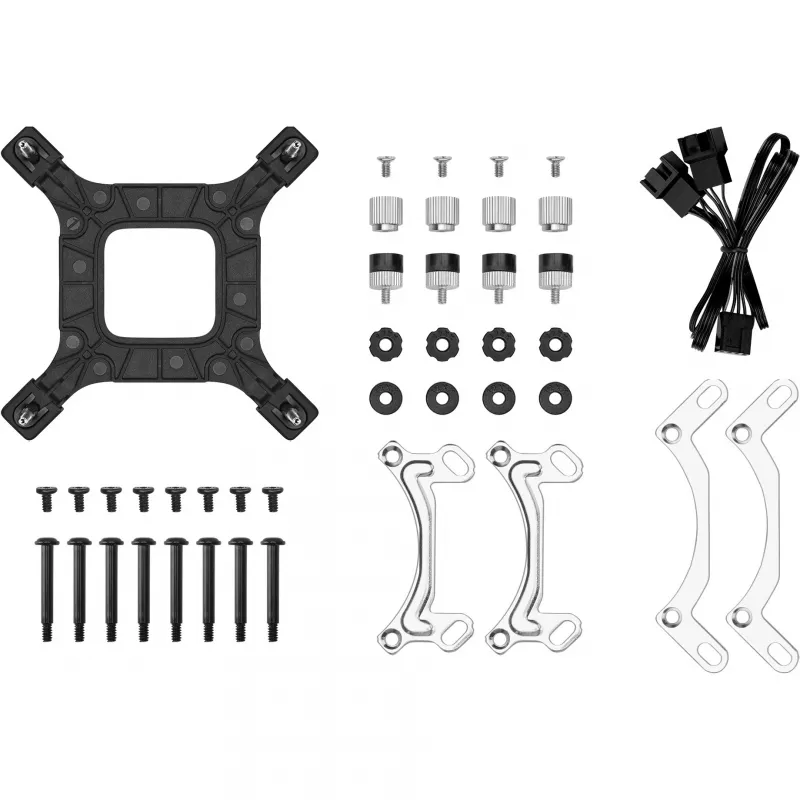

Mount the radiator with the pre-installed 120 mm fans into a compatible case location and attach the pump block to the CPU using the supplied mounting hardware for your CPU socket. Connect the pump to a 4-pin PWM header for speed control and plug the ARGB and fan connectors into appropriate headers or controller hubs as supported by your motherboard. Verify secure fittings and cable routing before powering on the system.

Recommendations

Install the radiator so airflow aligns with your case ventilation (intake or exhaust depending on layout). Use the motherboard’s PWM control to balance pump and fan speeds for lower noise during light loads and higher cooling performance under sustained CPU load. Periodically check fittings and fan operation; Anti-Leak Technology reduces risk but does not remove the need for visual inspections.
