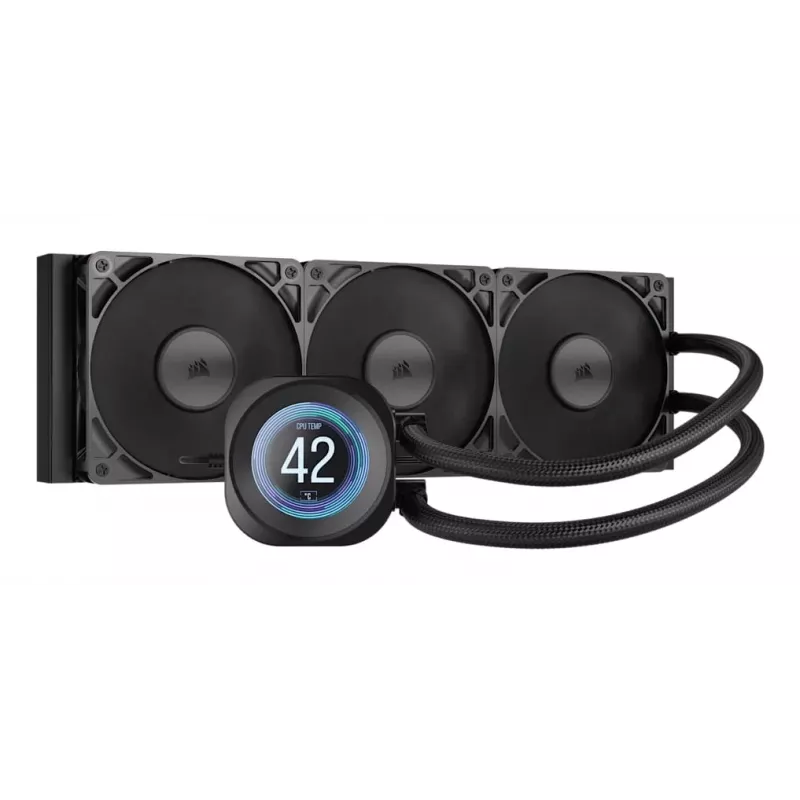

All-in-one liquid cooler Corsair Nautilus 360 RS 12 cm 2100 RPM Black

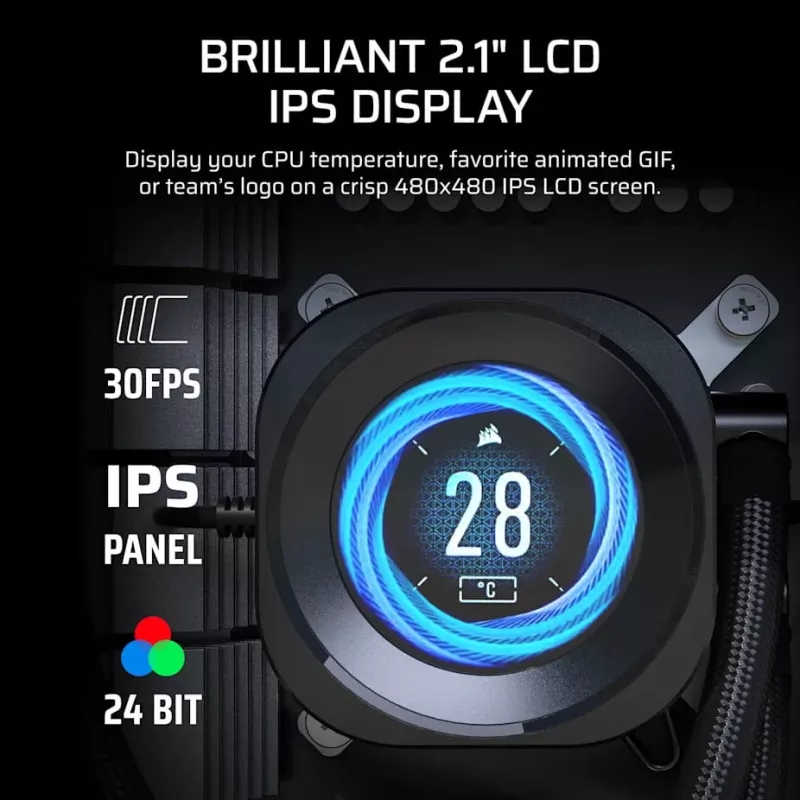

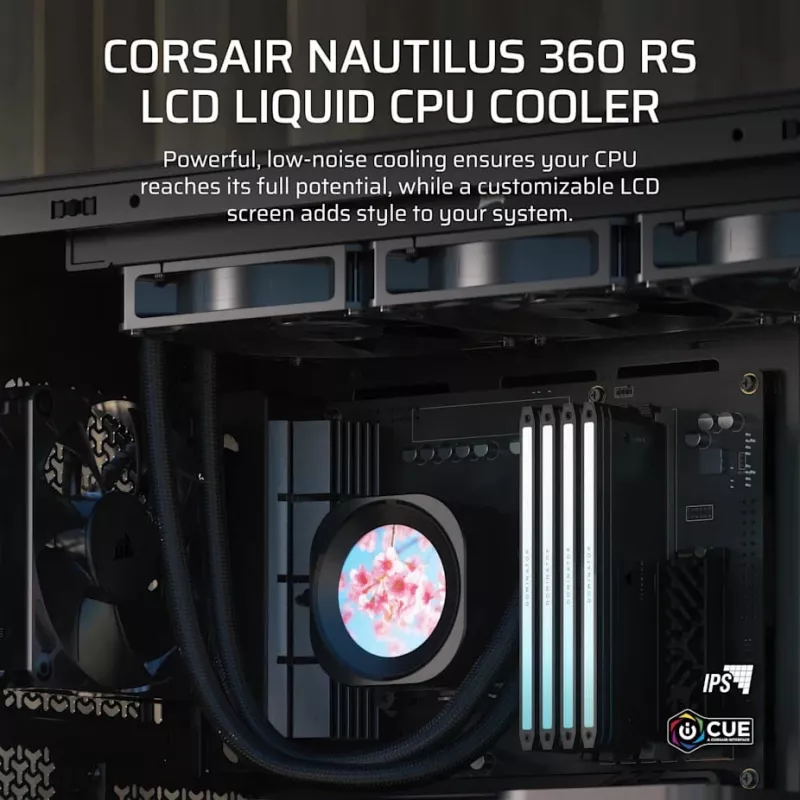

The Corsair Nautilus 360 RS is an all-in-one liquid cooler with a 12 cm fan configuration and a maximum fan speed of 2,100 RPM. It features a 480 x 480 2.1" IPS LCD able to show CPU temperature, animated GIFs and images with an ultra-bright 600 cd/m² backlight and over 16.7 million colors. The pump uses Corsair’s FlowDrive cooling engine with a three‑phase motor for higher flow and reduced noise, and a precision cold plate profile that maximizes contact with the CPU integrated heat spreader. The unit is finished in black and supports Intel LGA 1851, LGA 1700 and AMD AM5/AM4 sockets.

Advantages

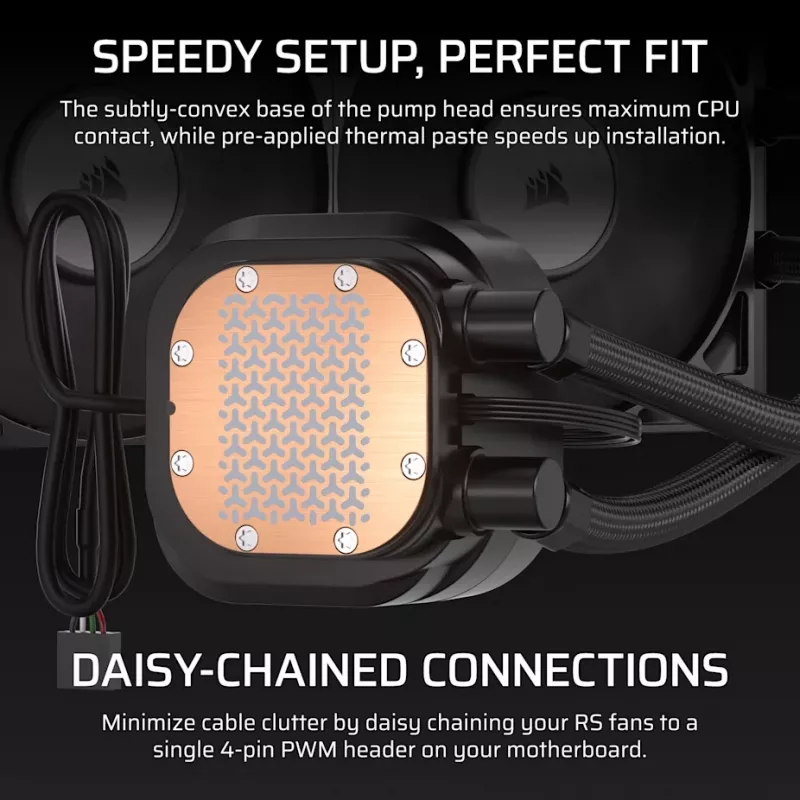

The display offers full in‑app GIPHY integration through iCUE, allowing easy use of animated content on the pump head. The FlowDrive pump delivers a high flow rate while operating quietly (around 20 dBA), and the slightly convex cold plate ensures maximum contact with the CPU IHS. High static pressure RS120 fans and Corsair AirGuide technology provide efficient airflow through the radiator, while magnetic dome bearings and PWM control with Zero RPM mode balance cooling performance and acoustics. Daisy‑chain fan connections reduce cable clutter.

Suitable for

• High‑performance desktop CPUs requiring sustained cooling
• Enthusiast gaming rigs and content‑creation workstations
• Systems where reduced cable clutter and clean internal layout are desired
• Users who want a configurable pump head display for temperatures, GIFs or logos

Key specifications

• Product type: All‑in‑one liquid CPU cooler
• Fan size / model: 120 mm RS fans (high static pressure)
• Max fan speed: 2,100 RPM
• Noise level (pump): approx. 20 dBA
• Radiator cooling performance: up to 4.15 mmH2O static pressure; up to 72.8 CFM (manufacturer data)
• Display: 2.1" IPS LCD, 480 x 480 px, 600 cd/m², 16.7M colors
• Compatibility: Intel LGA 1851, LGA 1700; AMD AM5, AM4
• Control: PWM support, Zero RPM mode, USB 2.0 (9‑pin) header for display control
• Color: Black
• Brand / MPN / EAN: CORSAIR / CW-9061033-WW / 0840440400356

How to use

Mount the radiator and fans in your case according to available space and airflow preference, then install the pump block onto the CPU following the included mounting hardware instructions for your socket (LGA 1851, LGA 1700, AM5, AM4). Apply the pre‑patterned thermal paste on the cold plate as provided, connect the fans to a single 4‑pin PWM header using the daisy‑chain cables, and plug the pump/display cable into an available USB 2.0 9‑pin header on the motherboard to enable iCUE control of the LCD. Configure fan curves and Zero RPM mode in your motherboard BIOS or Corsair iCUE software as needed.

Recommendations

For optimal long‑term performance, ensure good case airflow, periodically check fan and radiator dust buildup, and keep Corsair iCUE updated to access display features and firmware updates for the pump and fans.
