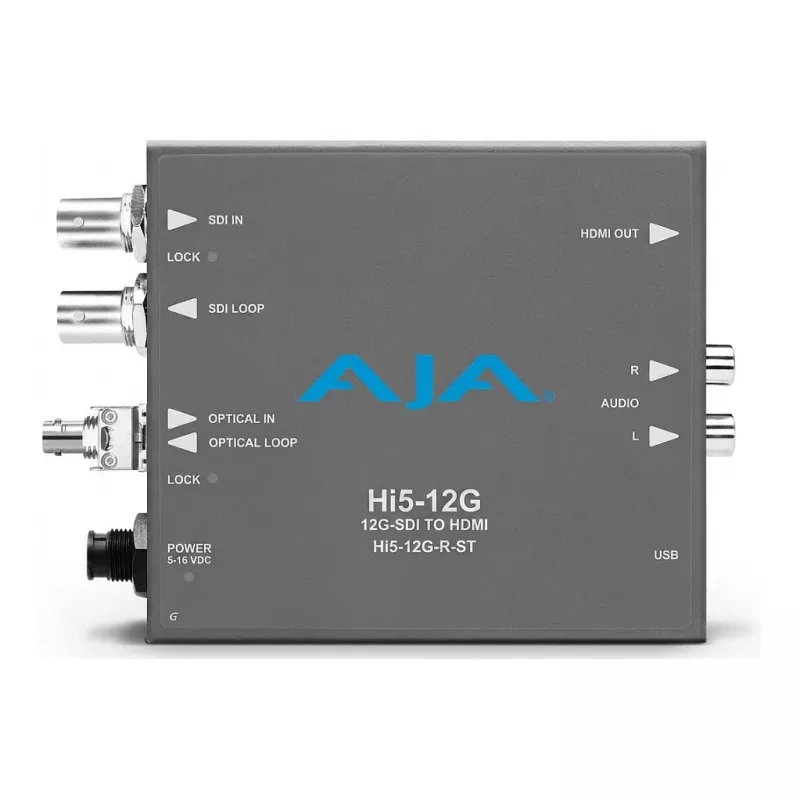

AJA Hi5-12G-R-ST 12G-SDI to HDMI 2.0 Mini-Converter with ST Fiber Input

The AJA Hi5-12G-R-ST is a professional mini-converter that accepts 12G-SDI or single-channel ST fiber optic input and outputs HDMI 2.0, supporting video resolutions up to DCI 4K and UHD 4K at 60p. Ideal for broadcast, production, and post-production environments requiring reliable signal conversion with HDR support.

Advantages

Supports the highest SDI data rates (12G-SDI) and fiber optic input for long-distance transmission. HDMI 2.0 output ensures compatibility with modern displays and projectors. Compact form factor with USB control via AJA Mini-Config software. Includes power supply (AJA DWP-U1-R) for easy deployment.

Suitable for

• Broadcast studios and live production
• Post-production and editing suites
• Digital signage and event AV
• Any application requiring SDI to HDMI conversion with fiber input

Key specifications

• Input: 1x 12G-SDI (BNC), 1x Single-Channel ST Fiber
• Output: 1x HDMI 2.0 (Type A)
• Video Formats: Up to DCI 4K (4096x2160) and UHD (3840x2160) at 60p
• Color Depth: Up to 12-bit 4:4:4 at 4K/UHD 30p, 8-bit 4:4:4 at 4K/UHD 60p
• HDR Support: HDR10, HLG
• Audio: Up to 16-channel embedded SDI audio, 8-channel embedded HDMI audio
• HDCP: HDCP 2.2
• Power: 5-20V DC, 4.5W typical
• Form Factor: AJA Mini-Converter

Recommendations

For reliable 12G-SDI to HDMI conversion with fiber input capability, the AJA Hi5-12G-R-ST is a top choice. Its robust build and comprehensive format support make it a staple in professional video workflows.
