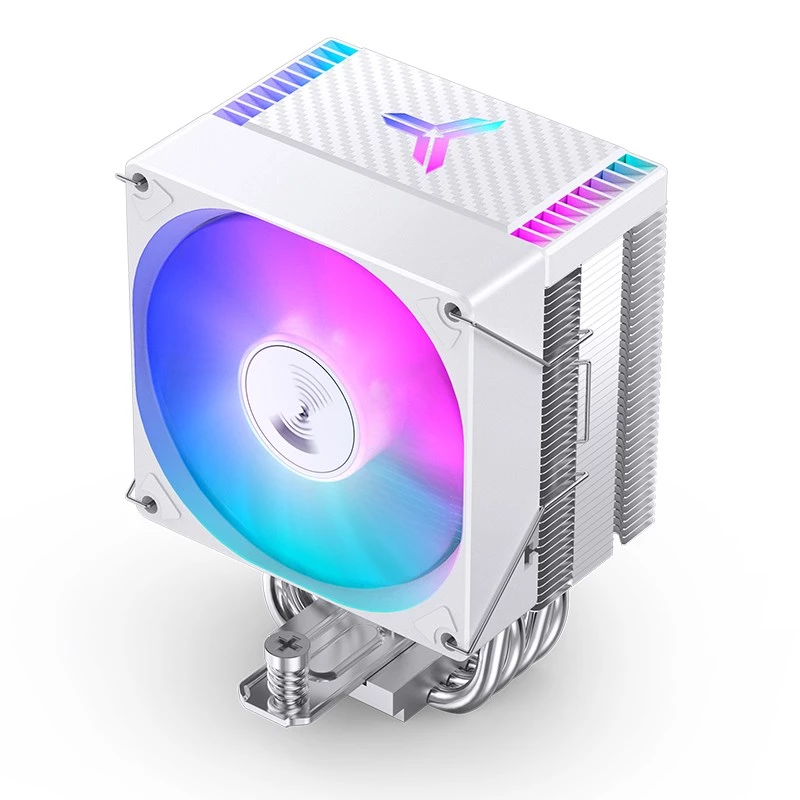

Air cooler Jonsbo CR-1400 EVO 9.2 cm White 800-2200 RPM 22.3-33.8 dB

Jonsbo CR-1400 EVO Color White is a compact air cooler with a 92 mm fan, designed to deliver effective CPU cooling for mainstream desktop systems. The unit supports modern Intel and AMD sockets and combines a modest footprint with a white finish suitable for varied PC builds.

Advantages

The CR-1400 EVO offers a balanced combination of cooling performance and low noise thanks to its fan speed range of 800–2200 RPM and hydraulic bearing for extended service life. With a rated TDP of 180 W and a maximum airflow of 38.2 cfm, it provides sufficient heat dissipation for many consumer processors while maintaining quiet operation (22.3–33.8 dB). The compact 92 mm fan and lightweight design make installation into smaller cases easier.

Suitable for

• Home and office desktop PCs requiring reliable air cooling
• Compact or micro-ATX builds where cooler height and weight matter
• Systems using Intel LGA 1200 or LGA 1700 and AMD AM4 or AM5 sockets

Key specifications

• Type: Air cooler

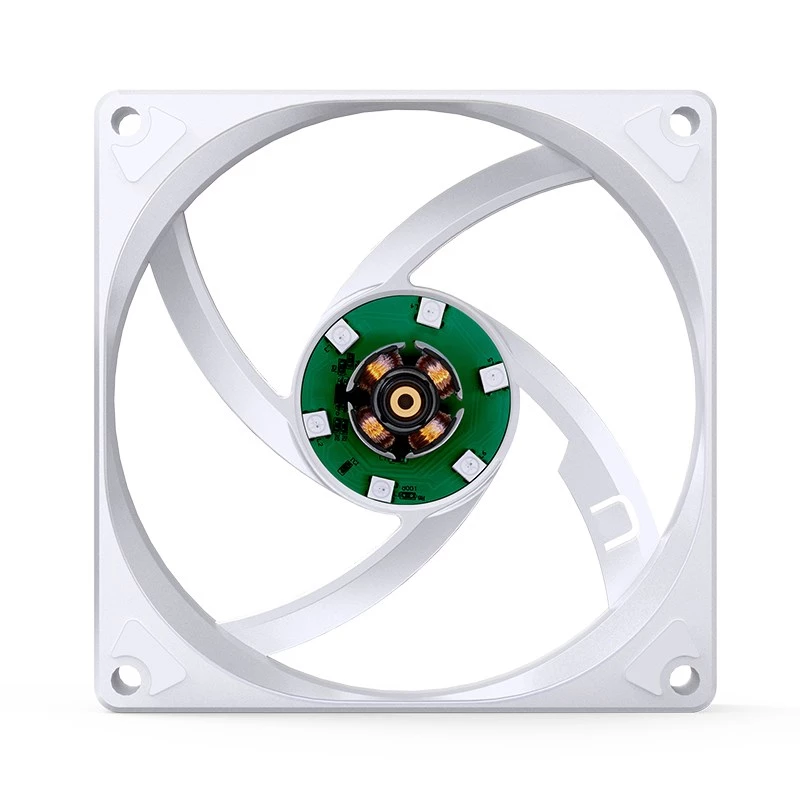

• Fan diameter: 92 mm
• Fan speed: 800–2200 RPM
• Noise level: 22.3–33.8 dB
• Maximum airflow: 38.2 cfm
• Bearing type: Hydraulic
• TDP: 180 W
• Supported sockets: LGA 1200, LGA 1700, AM4, AM5
• Colour: White
• Weight: 0.341 kg

How to use

Mount the cooler to the compatible CPU socket following the included installation instructions and manufacturer mounting kit. Apply an appropriate amount of thermal paste between the CPU heat spreader and the cooler base before fastening. Connect the fan cable to the motherboard CPU_FAN or suitable header and configure fan control in BIOS or through system software to balance noise and cooling performance.

Recommendations

For optimal results, ensure adequate case airflow by using at least one intake and one exhaust fan; check clearance for RAM modules and tall VRM heatsinks when installing the 92 mm cooler. Regularly clean the fan blades and heatsink surfaces to maintain cooling efficiency.
