Air cooler DeepCool AK620 WH 12 cm 500-1850 RPM White

DeepCool AK620 WH is a high-performance dual-tower CPU cooler designed for effective heat dissipation in demanding systems. It uses six copper heat pipes and a dense fin array combined with two 120mm FDB PWM fans to provide strong cooling capacity while maintaining low noise levels. The cooler supports systems up to 160mm height and offers compatibility with both Intel and AMD platforms through an all-metal mounting bracket kit.

Advantages

The AK620 WH delivers up to 260W of heat dissipation, enabling stable operation under high-frequency overclocking and heavy workloads. Dual 120mm fluid dynamic bearing fans balance airflow and quiet operation. A precision-machined convex copper base and six heat pipes improve thermal transfer, and the dual-tower fin layout increases cooling efficiency for high-performance CPUs.

Key specifications

• Model: DeepCool AK620 WH

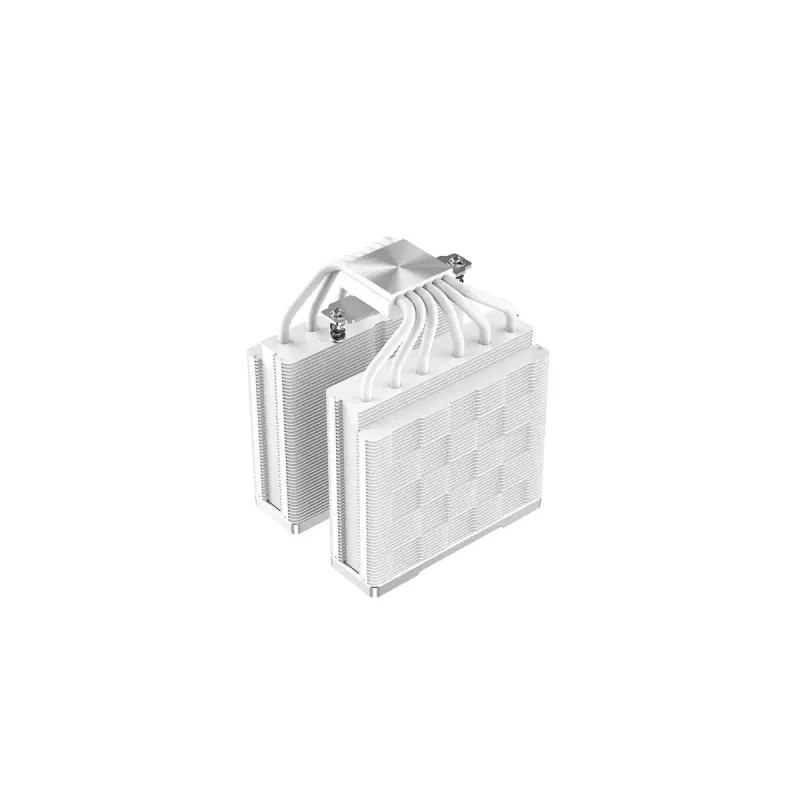

• Cooling design: Dual-tower with six copper heat pipes
• Fans: Two 120mm FDB PWM fans
• Maximum heat dissipation: 260W
• Cooler height compatibility: 160mm
• RAM clearance: 43mm (59mm in single-fan configuration)
• Base: Precision-machined convex copper base

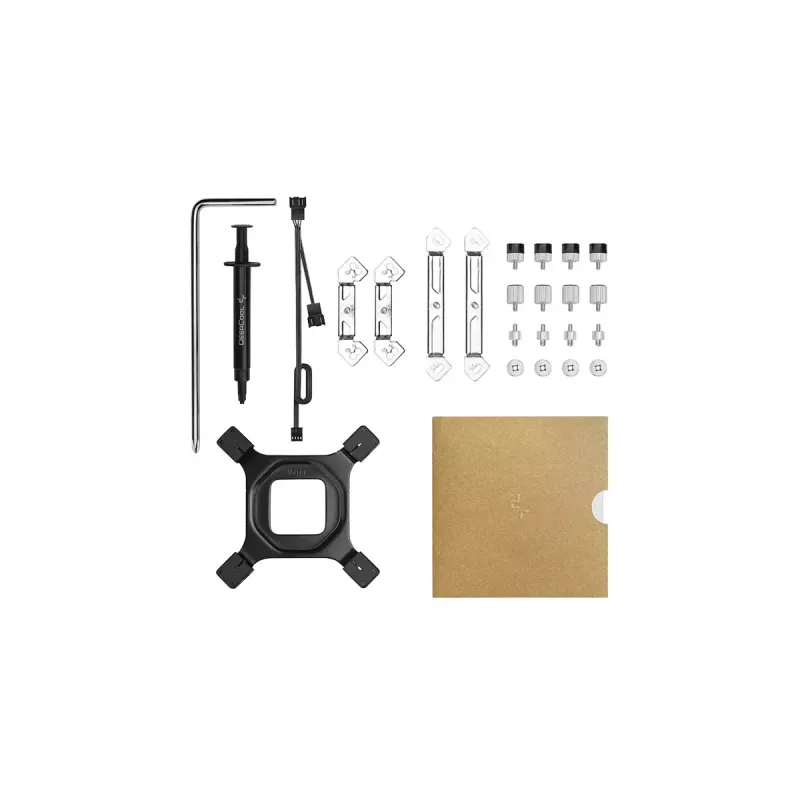

• Mounting: All-metal bracket kit for Intel and AMD

How to use

Install the DeepCool AK620 WH following the included instructions: mount the all-metal bracket for your platform (Intel or AMD), apply a thin, even layer of thermal paste to the CPU, position the cooler so the base contacts the CPU surface, and secure the heatsink with the provided screws. Connect the two 4-pin PWM fan headers to available motherboard fan headers and configure fan curves in BIOS or software if desired. For reduced RAM interference, use a single-fan configuration to obtain 59mm clearance where required.

Recommendations

Use the AK620 WH in cases that provide at least 160mm CPU cooler clearance. Ensure motherboard fan headers support PWM control for optimal balance of cooling and noise. When building for tall memory modules, consider single-fan configuration to increase RAM clearance to 59mm.
