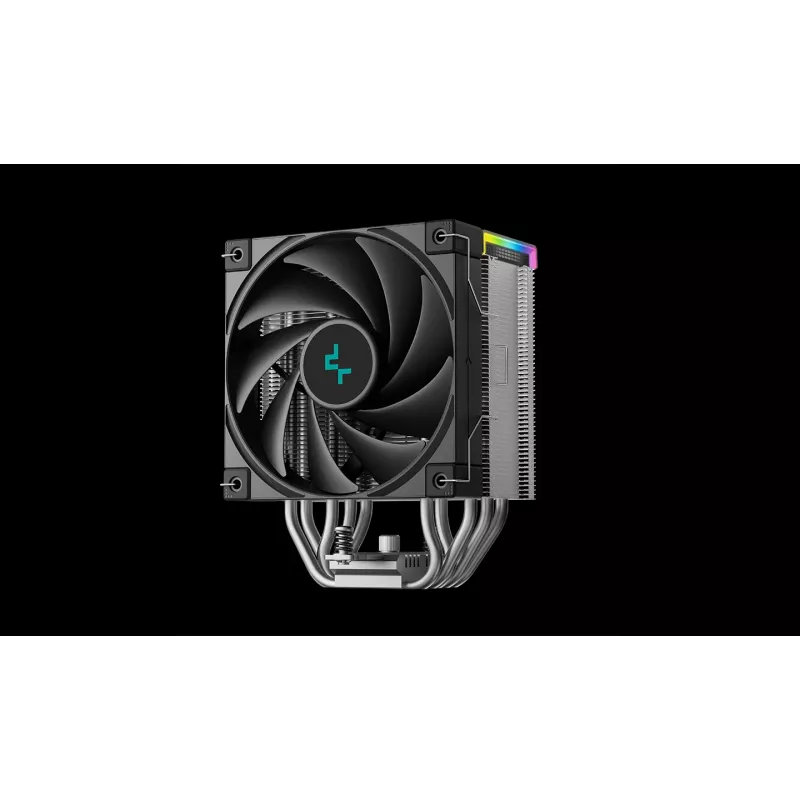

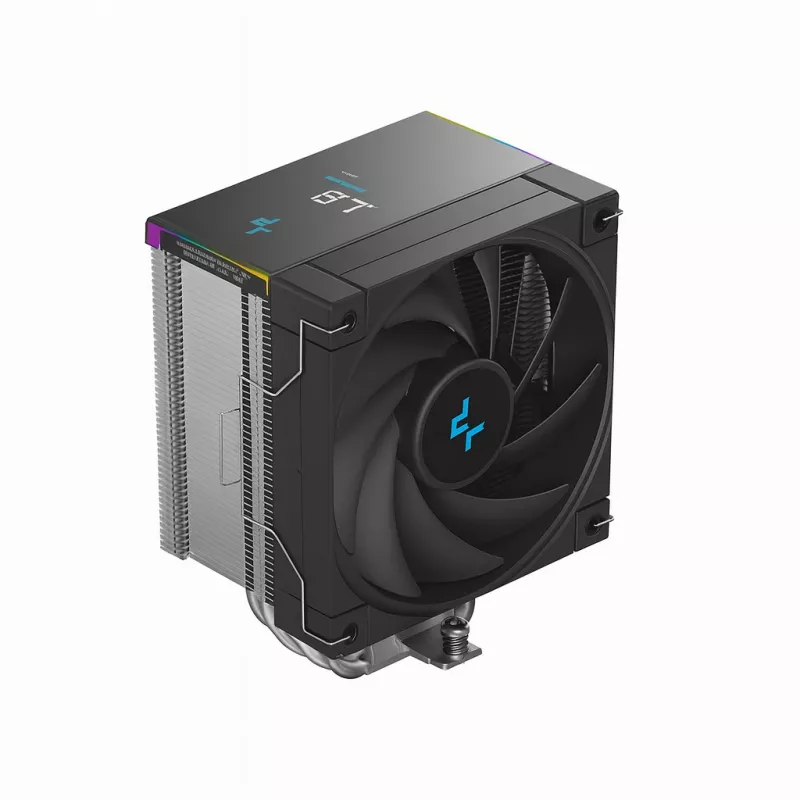

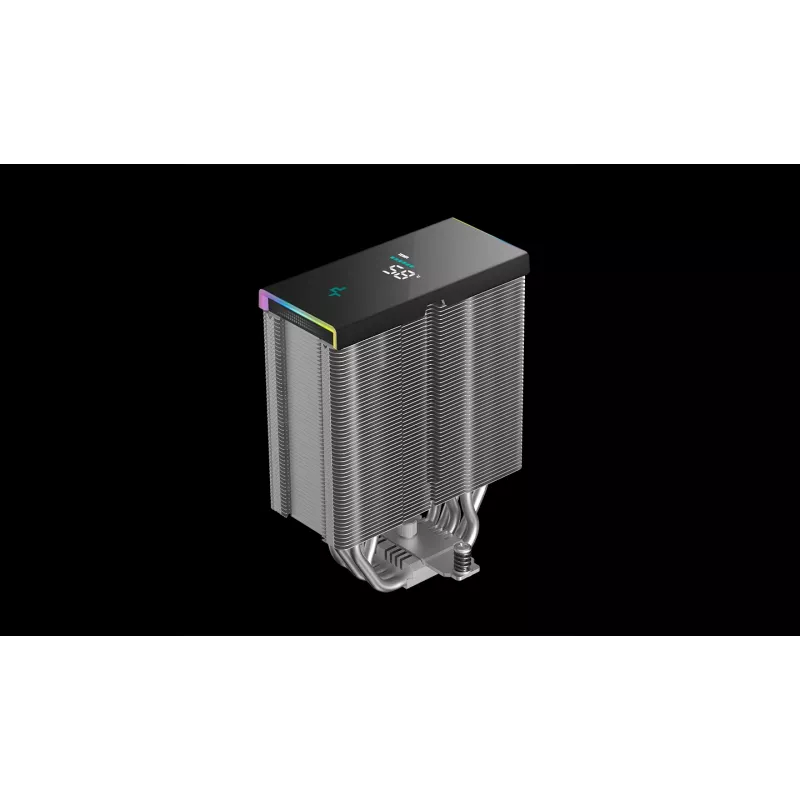

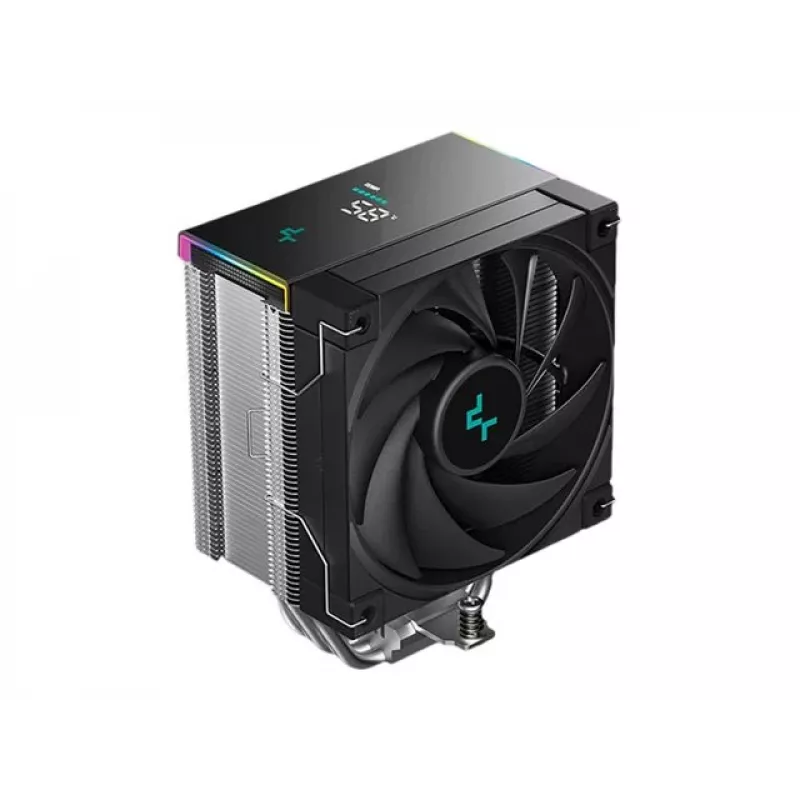

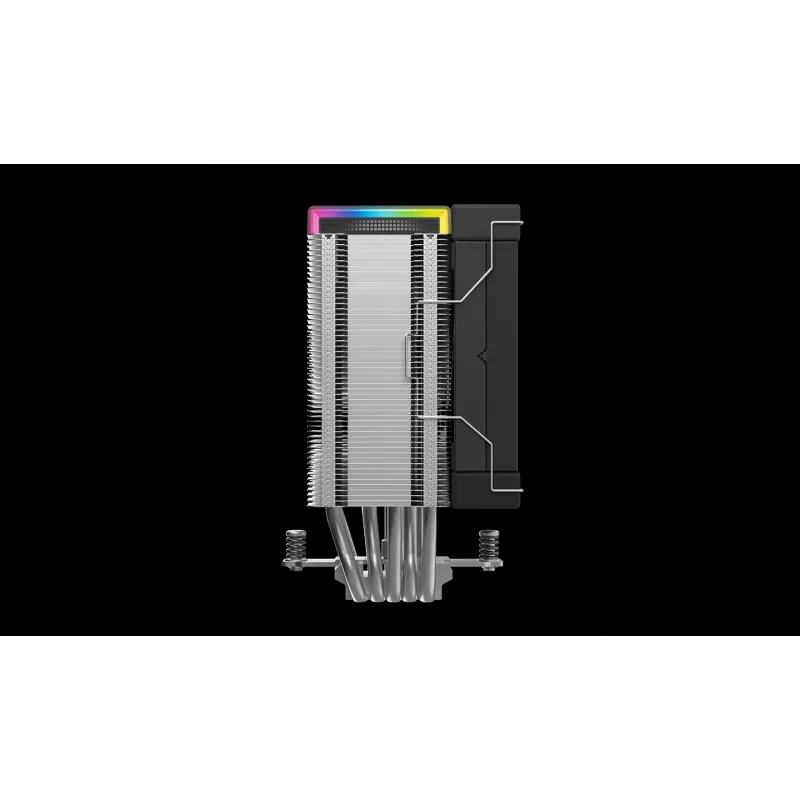

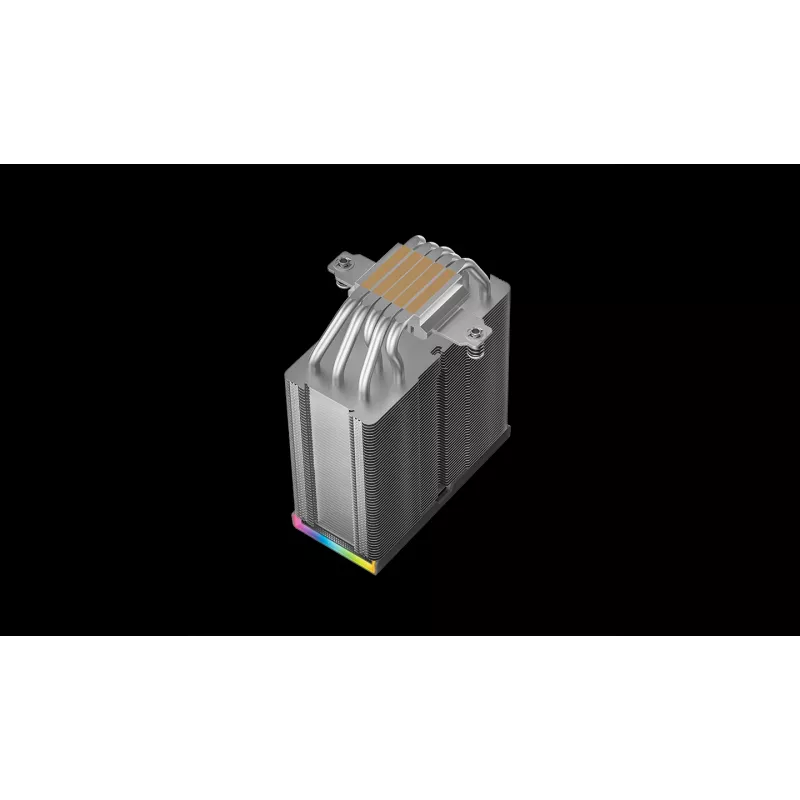

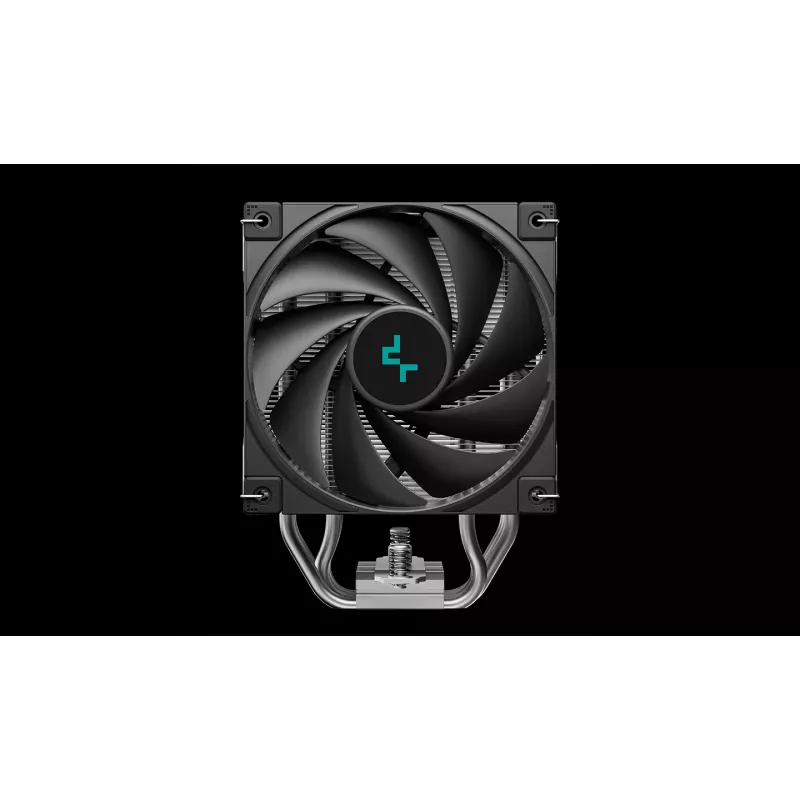

Air cooler DeepCool AK500S Digital SE — 120 mm fan, supports LGA1700/AM5/AM4 and Intel LGA115x/1200 sockets, Black

The DeepCool AK500S Digital SE is a tower air cooler with a 120 mm fan designed for mainstream desktop CPUs. It delivers a rated air pressure of up to 2.19 mmH2O and supports a broad range of Intel and AMD sockets, including LGA1700, LGA1150/1151/1155/1200 and AM4/AM5. The single-fan, black-finished cooler is intended to provide reliable thermal management for gaming PCs and workstations.

Advantages

The AK500S Digital SE combines a compact tower heatsink with a 120 mm PWM fan to offer balanced airflow and reasonable static pressure for most consumer CPU cooling needs. Compatibility with modern Intel and AMD socket generations makes installation flexible across many system builds. The black color and single-fan configuration keep the cooler visually unobtrusive while reducing system complexity.

Suitable for

• Mainstream desktop gaming PCs
• Home and office workstations
• Upgrades where compatibility with LGA1700 or AM5 is required
• Systems with limited space that accept a 120 mm tower cooler

When it may not be suitable

This cooler may not be adequate for users who require extreme overclocking performance or very high TDP processors, where larger air coolers or liquid cooling solutions are normally recommended. It also may not fit in very compact cases that do not support tower coolers of this height or where RAM clearance is restricted.

Key specifications

• Type: Tower air cooler with single fan
• Fan diameter: 120 mm
• Maximum air pressure: 2.19 mmH2O
• Fan control: PWM support
• Supported sockets: Intel LGA1700, LGA1200, LGA1150/1151/1155; AMD AM4, AM5
• Colour: Black
• Weight: 0.864 kg

How to use

Install the cooler following the motherboard and cooler manufacturer instructions: attach the appropriate mounting brackets for your CPU socket, apply a thin, even layer of thermal paste to the CPU heatspreader, seat the cooler onto the CPU and secure the mounting screws. Connect the 4-pin fan header to a PWM-capable CPU fan header on the motherboard to enable automatic speed control.

What to consider before purchase

• Check case clearance and RAM height to ensure the tower cooler fits without interfering with other components.
• Confirm compatibility with your CPU socket (LGA1700, LGA1200/115x or AM4/AM5).
• Evaluate your CPU thermal requirements; consider larger coolers or liquid cooling for high-TDP or overclocked CPUs.

Recommendations

For optimal performance, mount the 120 mm fan to direct airflow through the heatsink toward a chassis exhaust fan, keep dust filters clean, and use the motherboard's PWM control to balance noise and cooling performance.
