Air cooler DeepCool AG620 WH ARGB

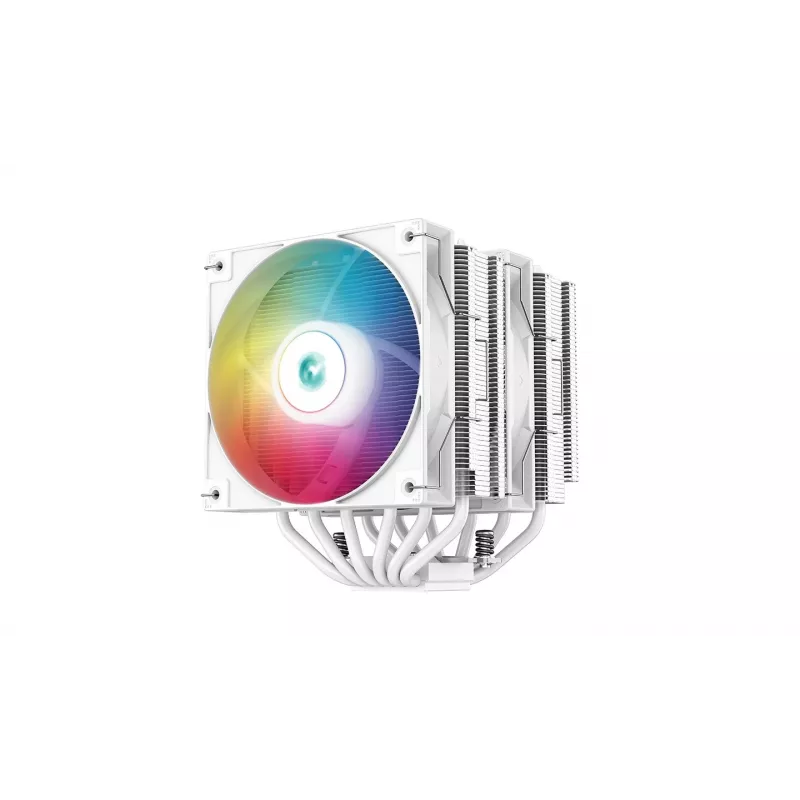

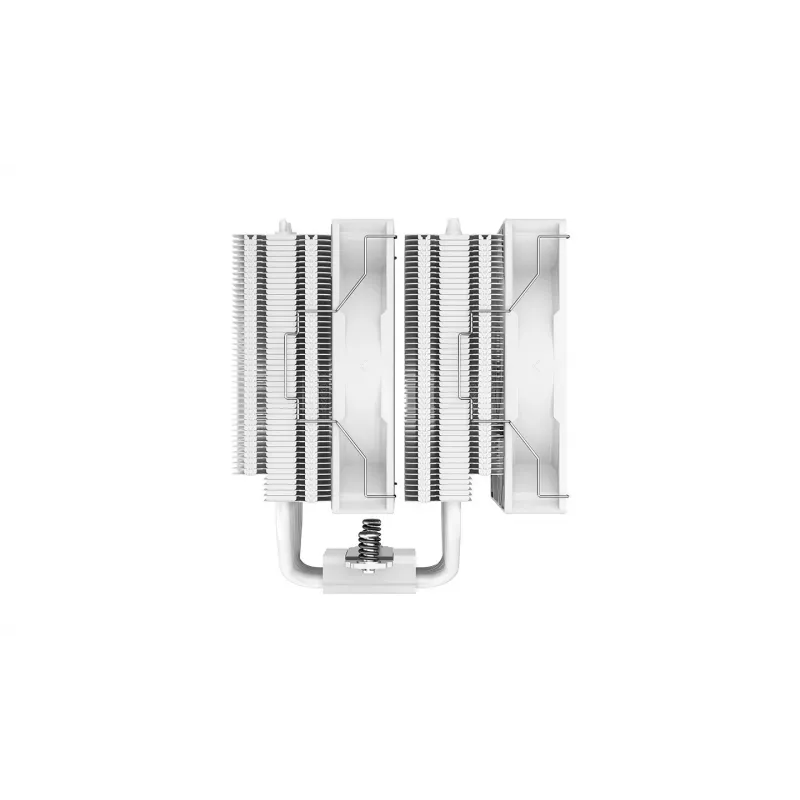

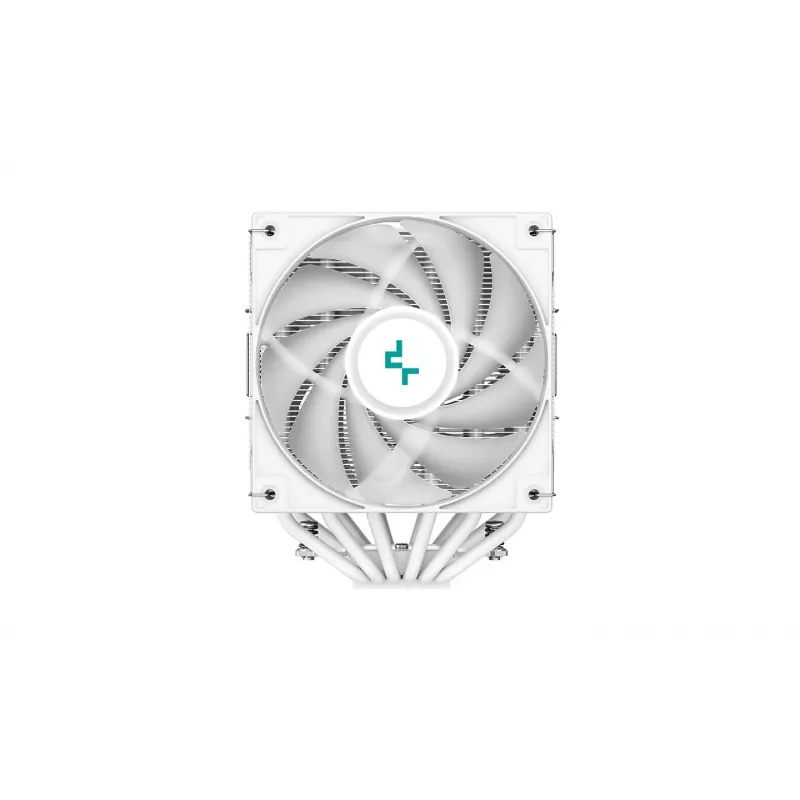

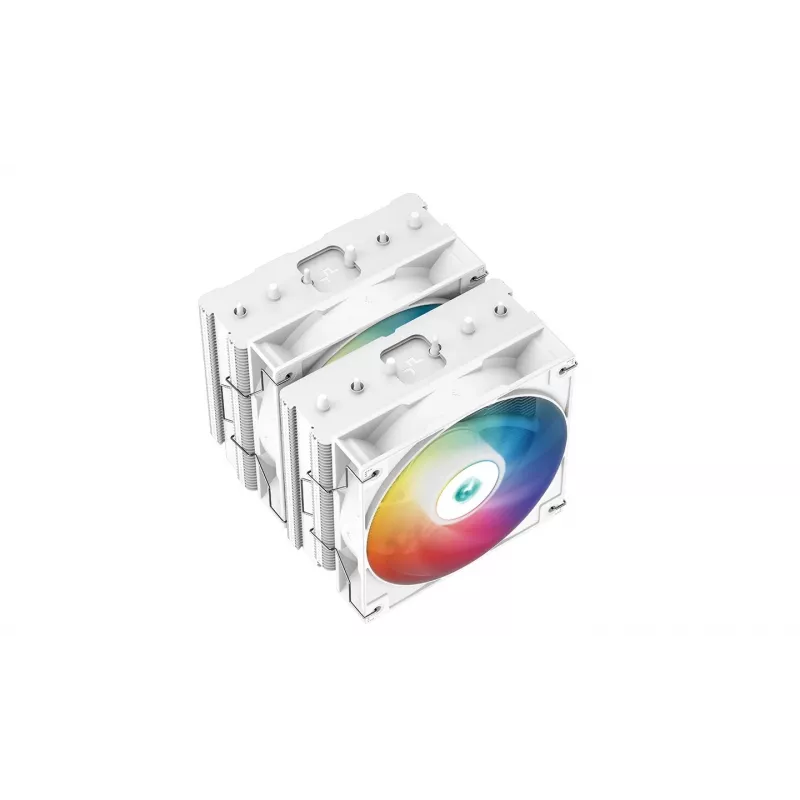

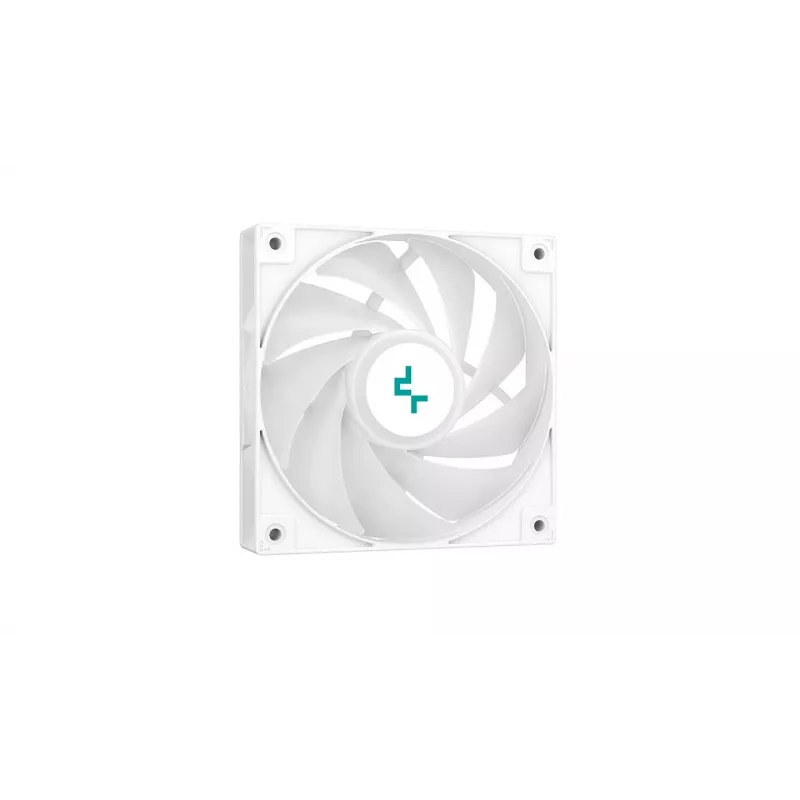

The DeepCool AG620 WH ARGB is a dual-tower 120 mm air cooler designed for efficient CPU heat dissipation. It delivers up to 260 W of cooling capacity and comes in a white finish with ARGB lighting and a hydraulic-bearing 120 mm fan that operates between 300 and 1850 RPM. Its compact dual-tower layout and dense matrix fin array provide high surface area for thermal transfer while remaining compatible with a wide range of Intel and AMD sockets.

Advantages

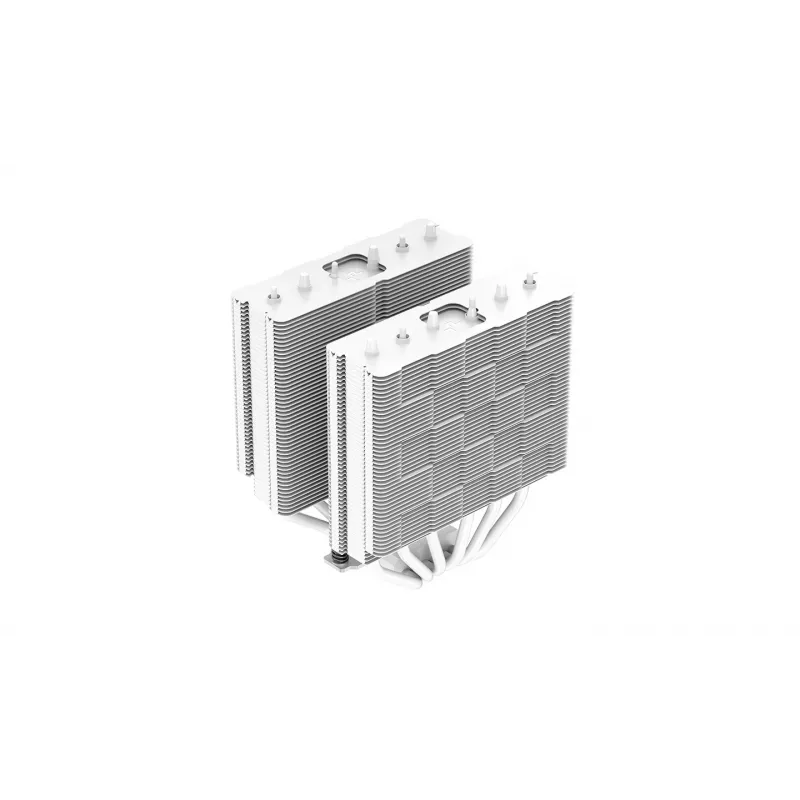

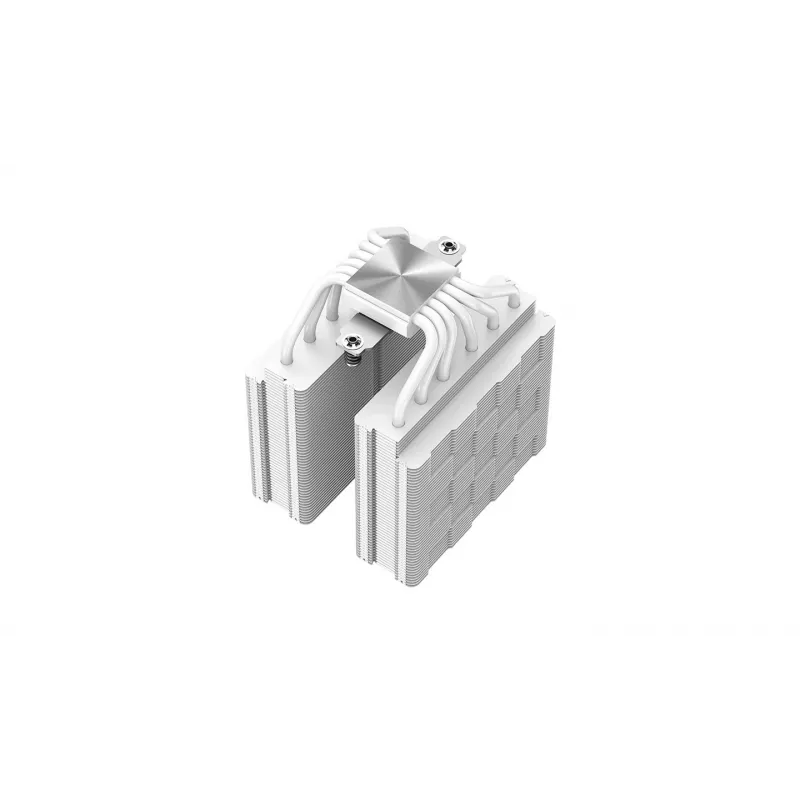

The cooler offers substantial cooling power rated at 260 W TDP while using balanced bidirectional heat pipe technology to maintain low thermal resistance in both vertical and horizontal case orientations. A dense checkerboard-style matrix fin array increases heat dissipation area, and the included high-efficiency PWM fan provides automatic speed control from silent idle to full load. All-metal mounting brackets enable a secure, five-step installation for multiple Intel and AMD sockets.

Suitable for (tasks / use cases)

• Cooling mainstream and high-performance desktop CPUs up to 260 W TDP
• Quiet home or office builds needing efficient air cooling
• White-themed or ARGB-equipped PC builds
• Systems where compatibility with many Intel and AMD sockets is required

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm
• Fan speed: 300–1850 RPM (PWM)
• Noise level: ≤29.4 dB(A)
• Airflow: 67.88 CFM
• Maximum cooling capacity (TDP): 260 W
• Dimensions (W×D×H): 129 × 136 × 157 mm
• Weight: 1.3 kg
• Supported sockets: LGA 1150 / 1151 / 1155 / 1200 / 1700 / 2011 / 2011-v3 / 2066, AM4, AM5
• Colour: White

How to use

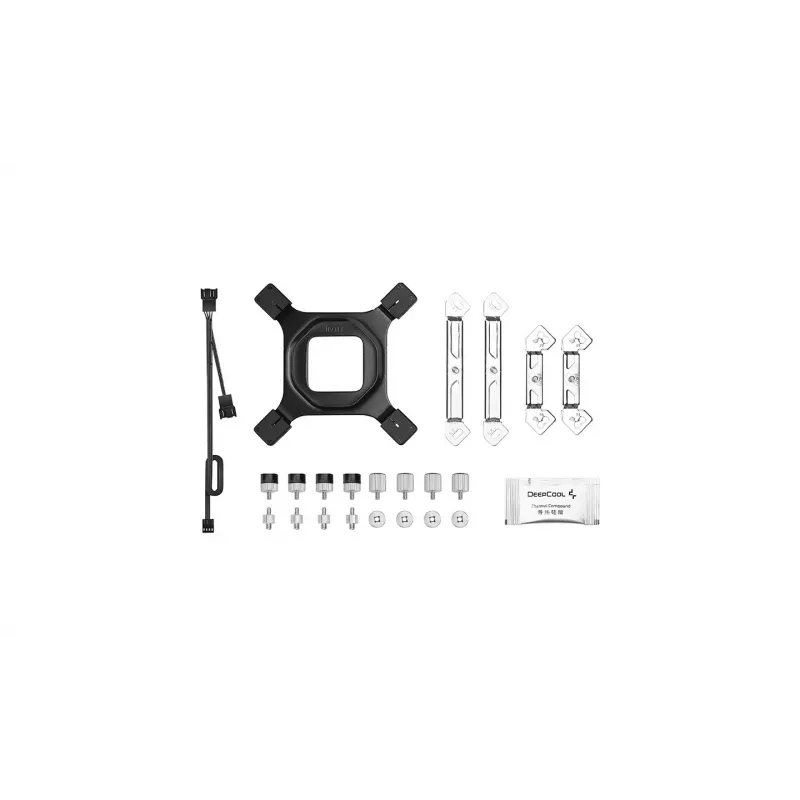

Install the DeepCool AG620 WH ARGB following the provided five-step mounting procedure: attach the appropriate backplate and metal mounting brackets for your motherboard socket, apply thermal paste to the CPU, position the cooler to ensure flat contact with the CPU IHS, secure the heatsink with the mounting screws to achieve correct contact pressure, and connect the fan PWM and ARGB cables to the motherboard headers. Verify that the fan spins and ARGB lighting responds before closing the case.

Recommendations

For best results, use a moderate amount of high-quality thermal paste, ensure unobstructed airflow in the case, and confirm compatibility with your RAM and motherboard layout since the dual-tower design may affect clearance.
