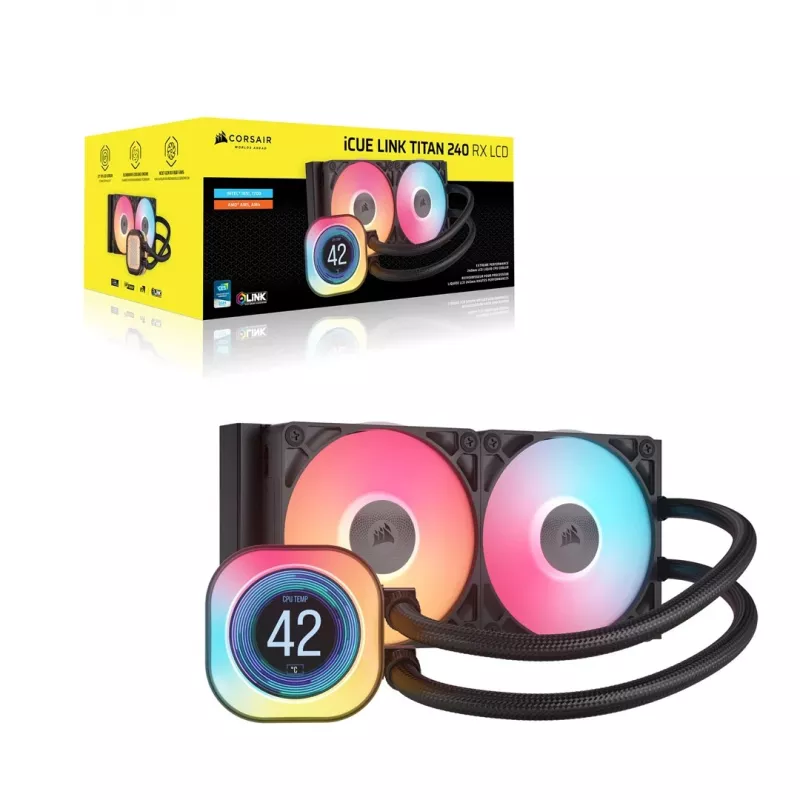

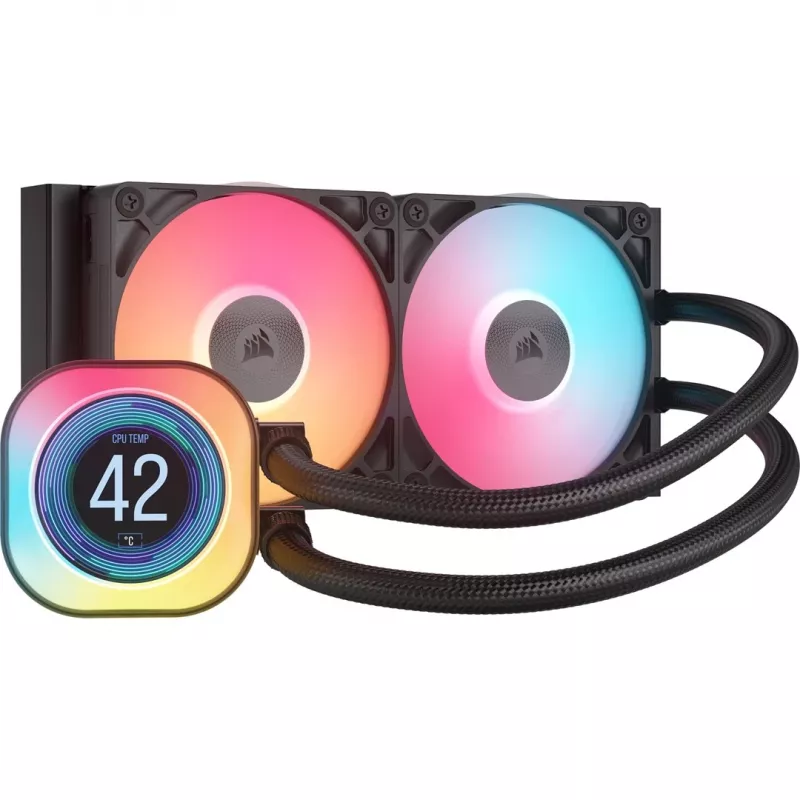

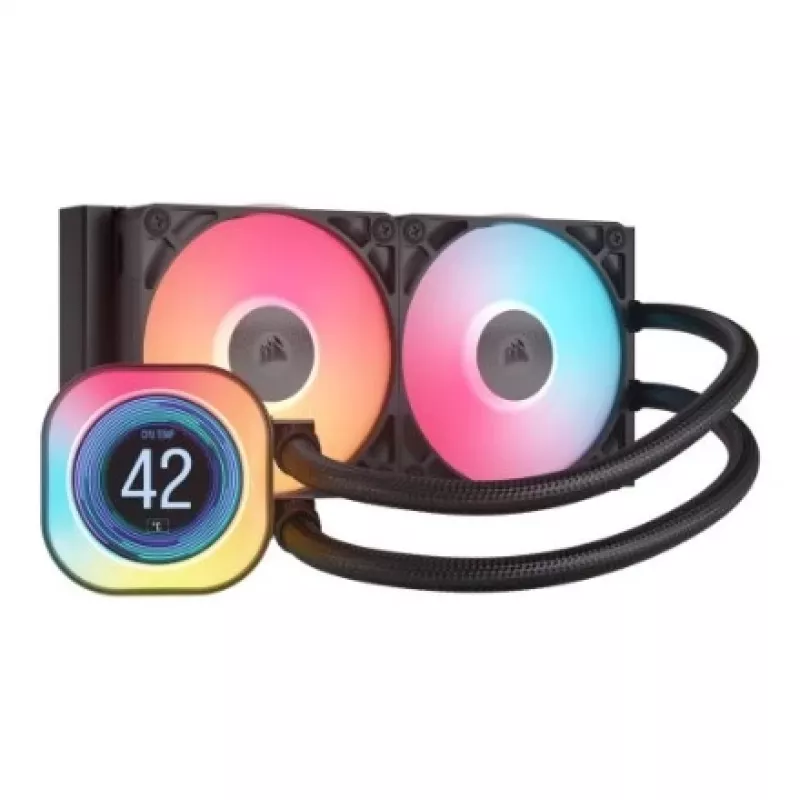

Air cooler Corsair iCUE LINK TITAN 240 RX LCD 12 cm Black 300-2100 RPM

The CORSAIR iCUE LINK TITAN 240 RX LCD is a high-performance CPU cooler designed to provide efficient heat dissipation and quiet operation. This unit features a 120 mm RX series fan with a speed range of 300–2100 RPM, a 2.1" 480×480 IPS LCD on the pump head for custom images, animations and system data, and streamlined iCUE LINK connectivity for unified control of lighting and performance. The cooler is compatible with modern sockets including Intel LGA 1700 and AMD AM4/AM5 and comes pre-applied with CORSAIR XTM70 thermal paste.

Advantages

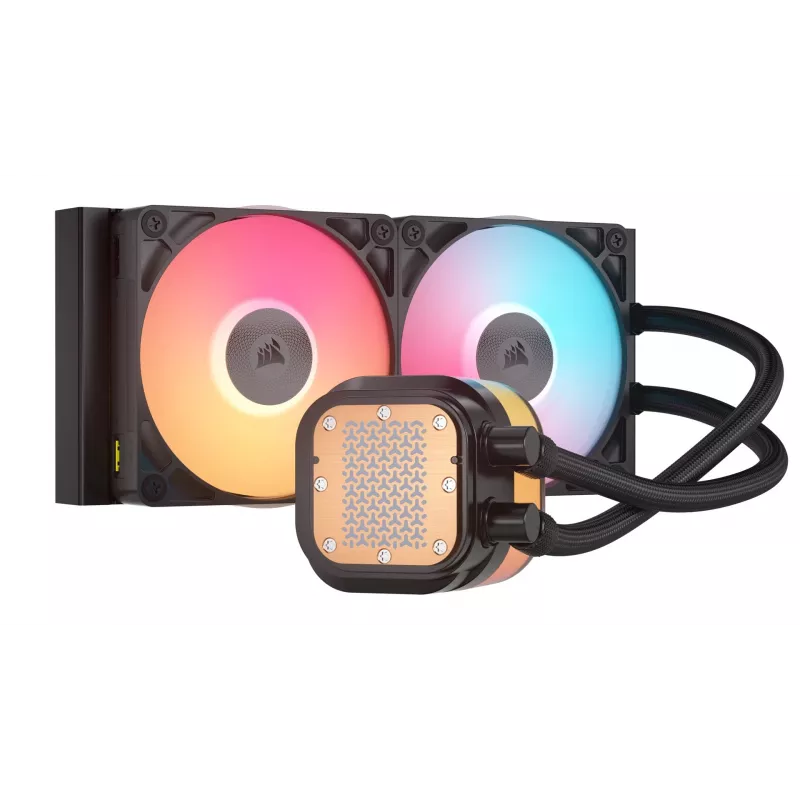

The TITAN 240 RX LCD combines strong cooling capability and low noise through RX fans that balance airflow and static pressure across fan speeds. The built-in 480×480 LCD supports 16.7 million colors, GIPHY integration, and selectable display presets or custom images. A three-phase FlowDrive pump and precision cold plate improve heat transfer while maintaining quieter operation. The CapSwap modular pump cap and detachable fan side plates provide visual customization and easy aesthetic changes.

Suitable for

• Gaming PCs that require consistent CPU cooling under sustained load
• Content creation and rendering workstations with high thermal demands
• Custom-built systems where in-case visual customization and synchronized lighting are desired

Key specifications

• Type: Air cooler
• Fan diameter: 120 mm
• Fan speed: 300–2100 RPM

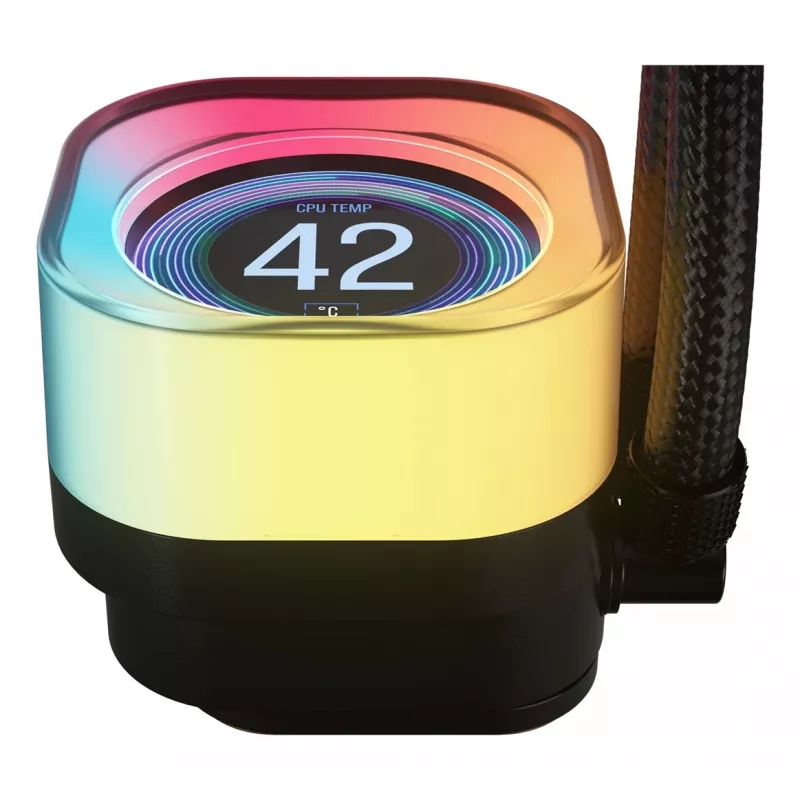

• Display: 2.1" 480×480 IPS LCD (pump head)
• Lighting: Individually addressable RGB LEDs (pump and fans)
• Compatible sockets: Socket AM5, Socket AM4, LGA 1700
• Dimensions (W×D×H): 125 × 125 × 275 mm
• Weight: 2.074 kg
• Colour: Black
• Included thermal paste: CORSAIR XTM70 (pre-applied)

How to use

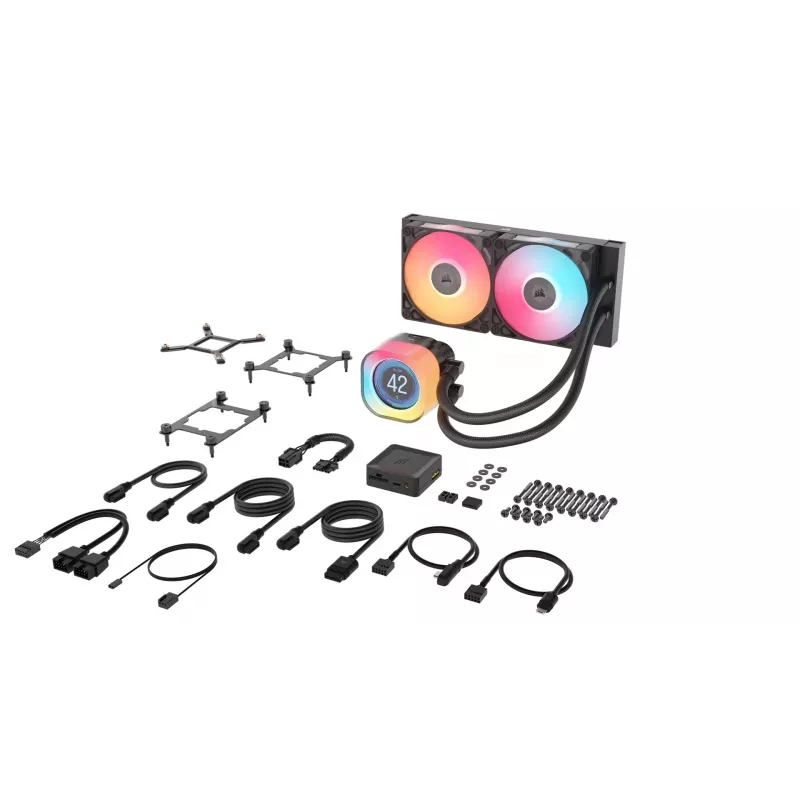

Install the cooler following the included mounting brackets and backplate instructions for your CPU socket (AM4, AM5 or LGA 1700). Connect the fan and pump cables to the iCUE LINK headers or motherboard as directed, then install CORSAIR iCUE software to configure LCD content, lighting profiles and performance settings. Ensure the radiator and fans are mounted to provide unobstructed airflow and that all connectors are secured before powering the system.

Recommendations

For optimal performance, keep iCUE up to date to access the latest LCD animations and GIPHY integration, regularly check fan curves in software to balance cooling and noise, and confirm mounting torque and contact between the cold plate and CPU IHS for consistent heat transfer.
