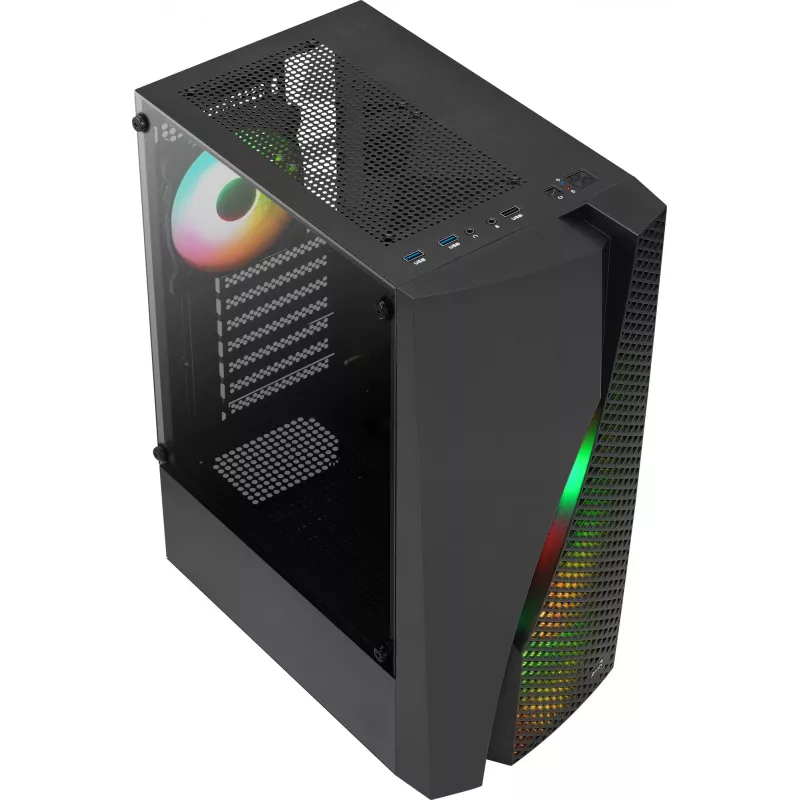

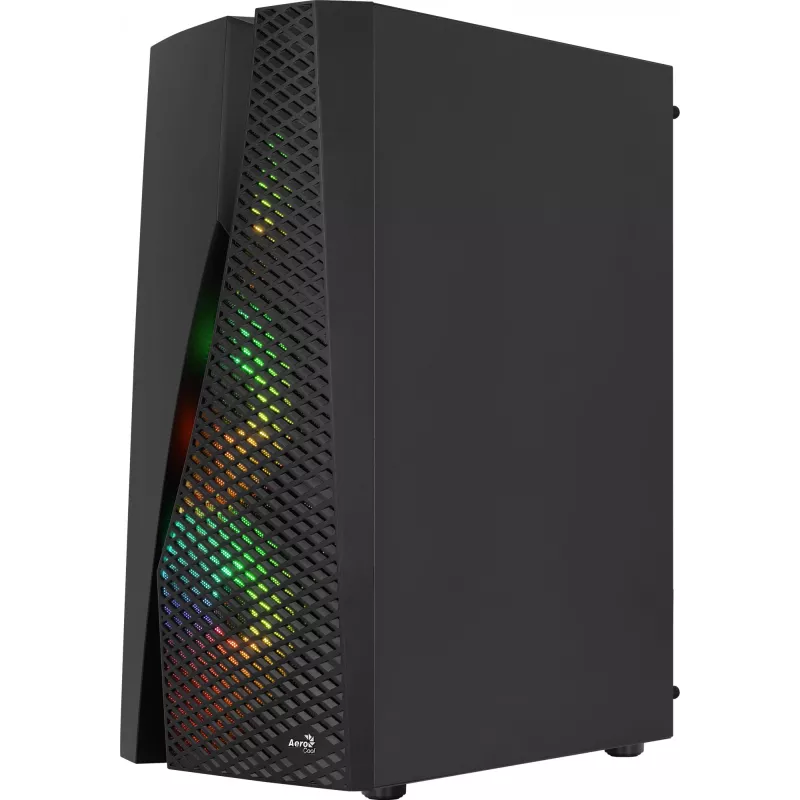

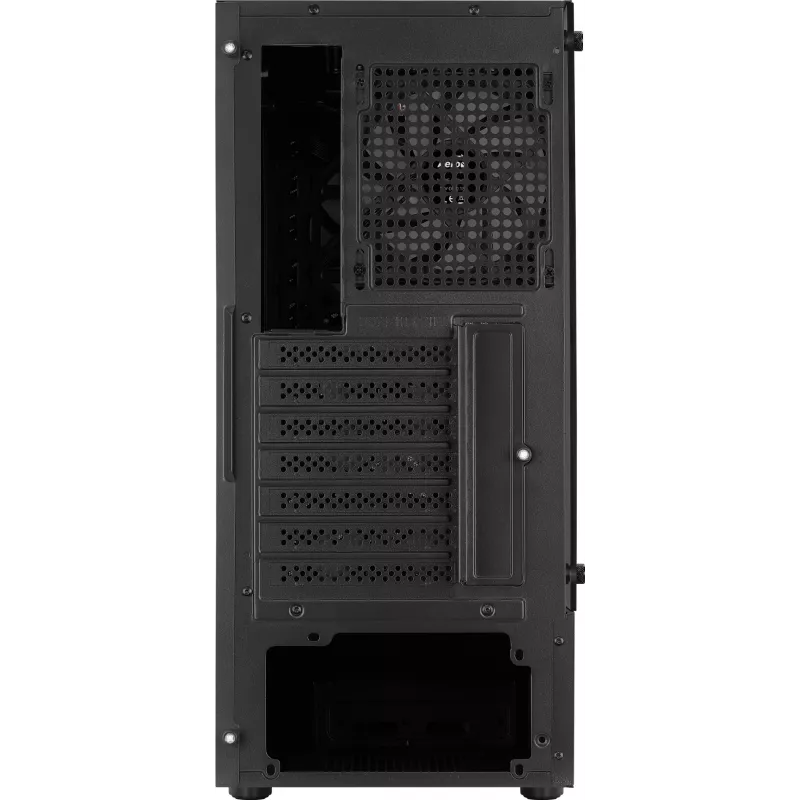

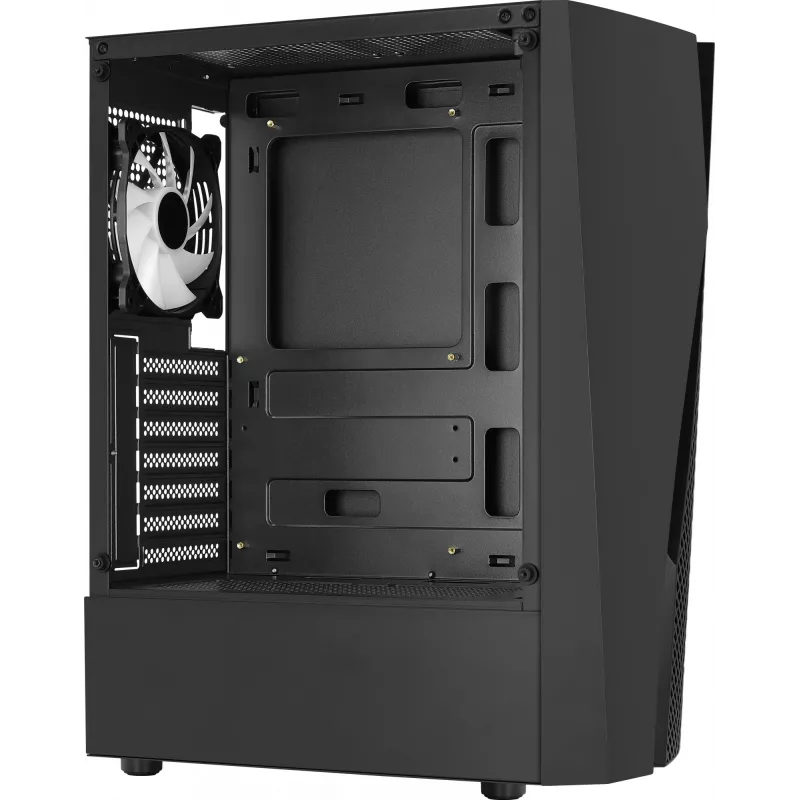

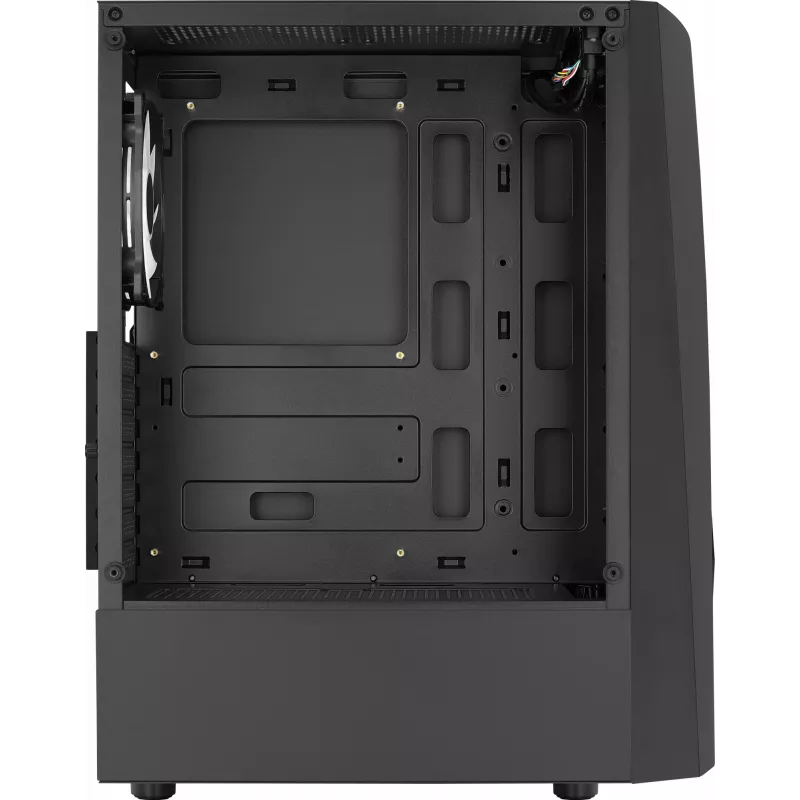

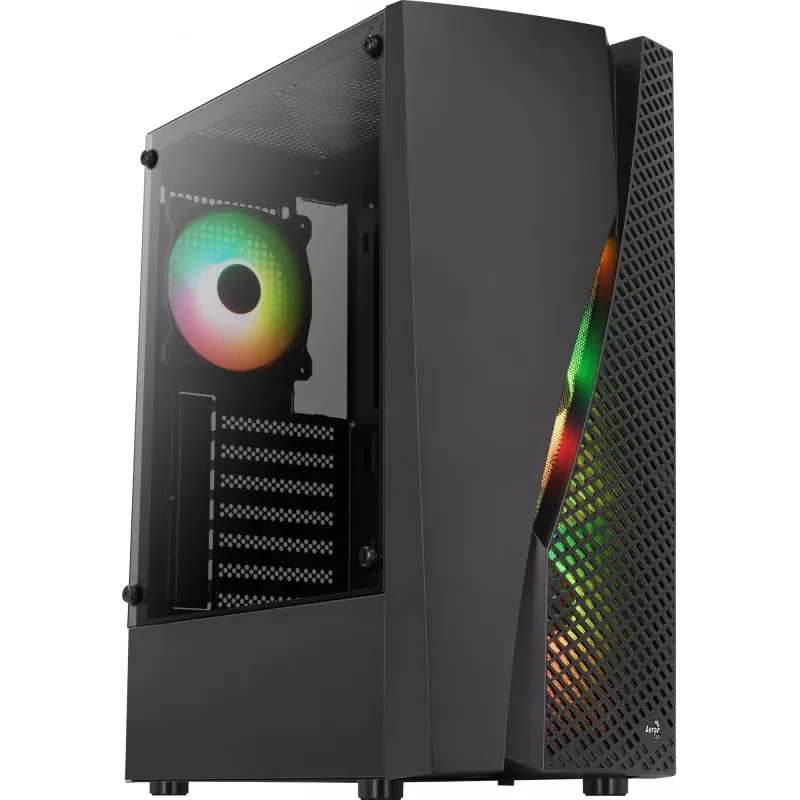

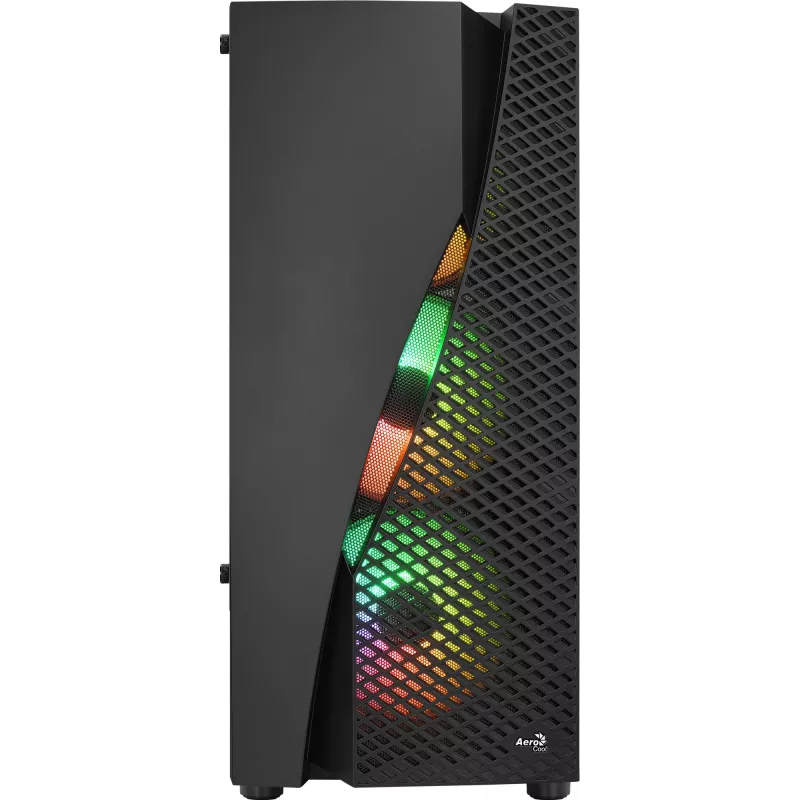

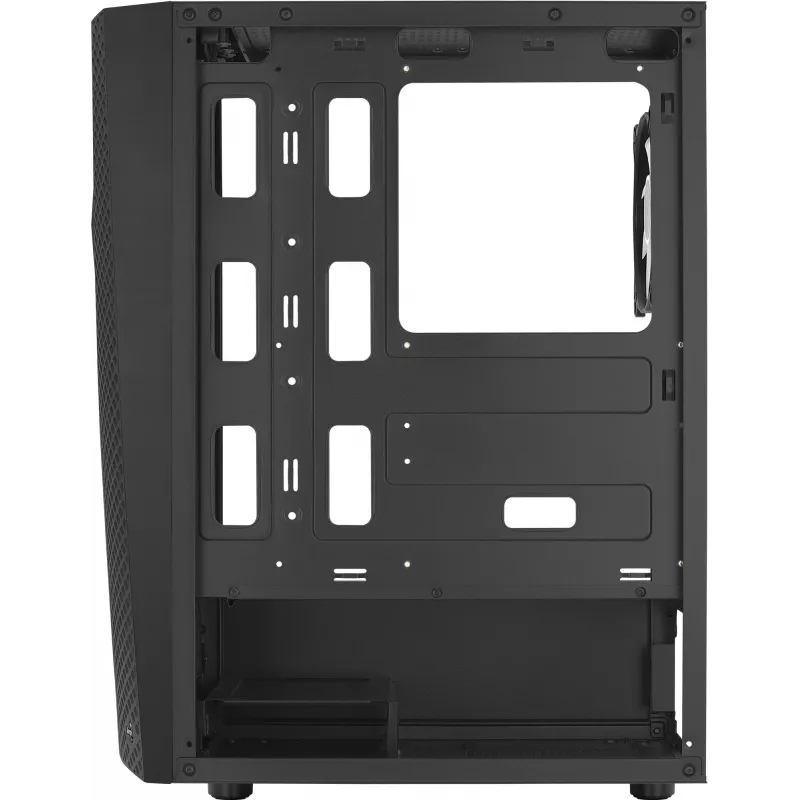

Aerocool WAVEBKV3 ATX PC Case Tempered Glass 4xRGB Fans Black

Designed with ventilation in mind, this mid-tower PC case provides improved airflow while allowing visibility of front LED fans through an elegant front panel. The case includes a tempered glass side panel to display internal components and supports both air and liquid cooling options for efficient thermal management. It is compatible with ATX, Micro-ATX, and Mini-ITX motherboards and offers convenient front I/O access including USB 3.0, USB 2.0, HD audio and mic ports.

Advantages

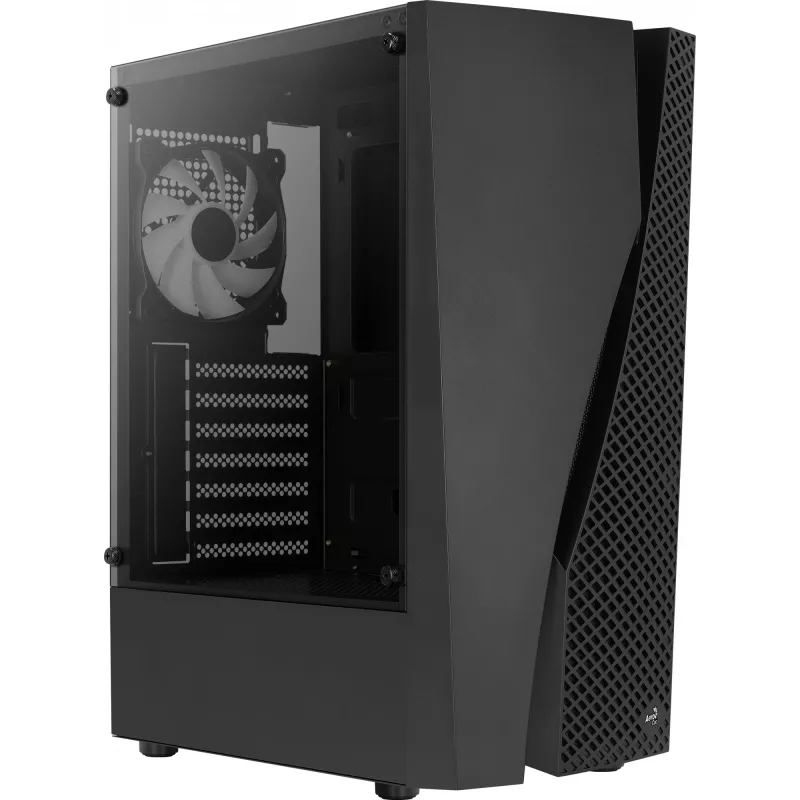

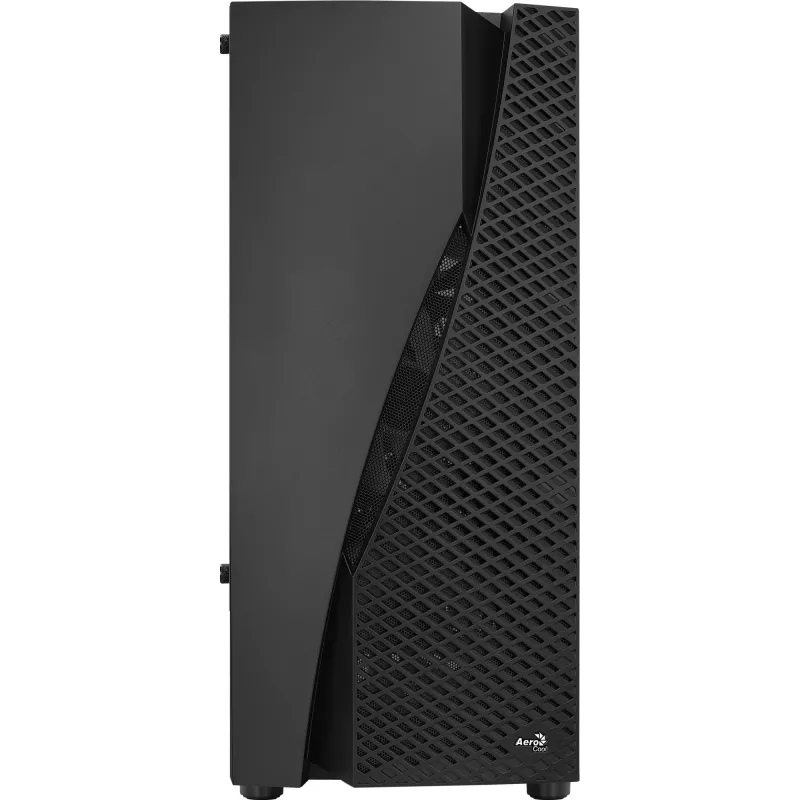

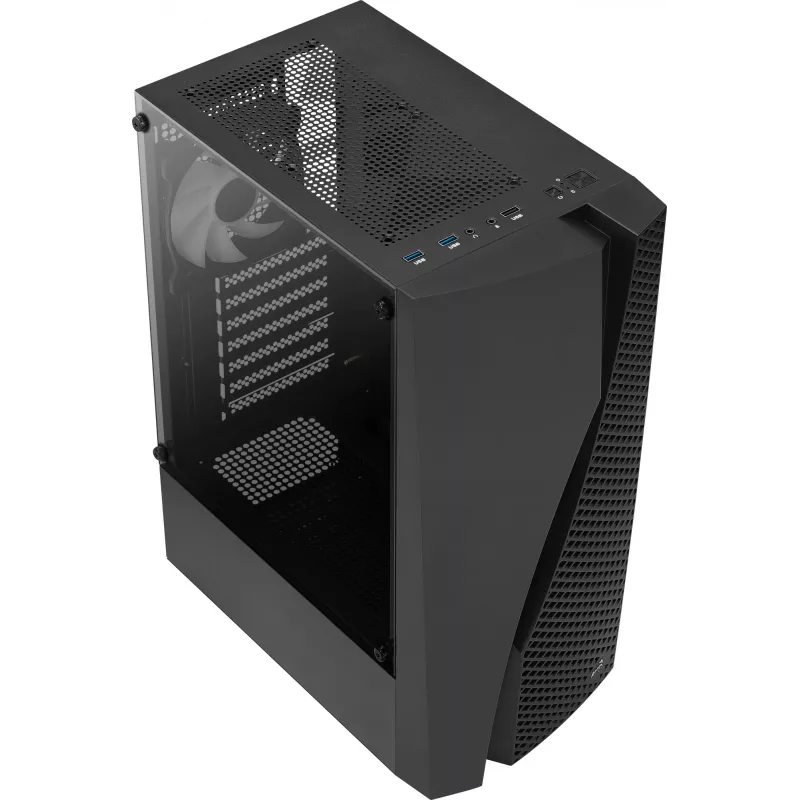

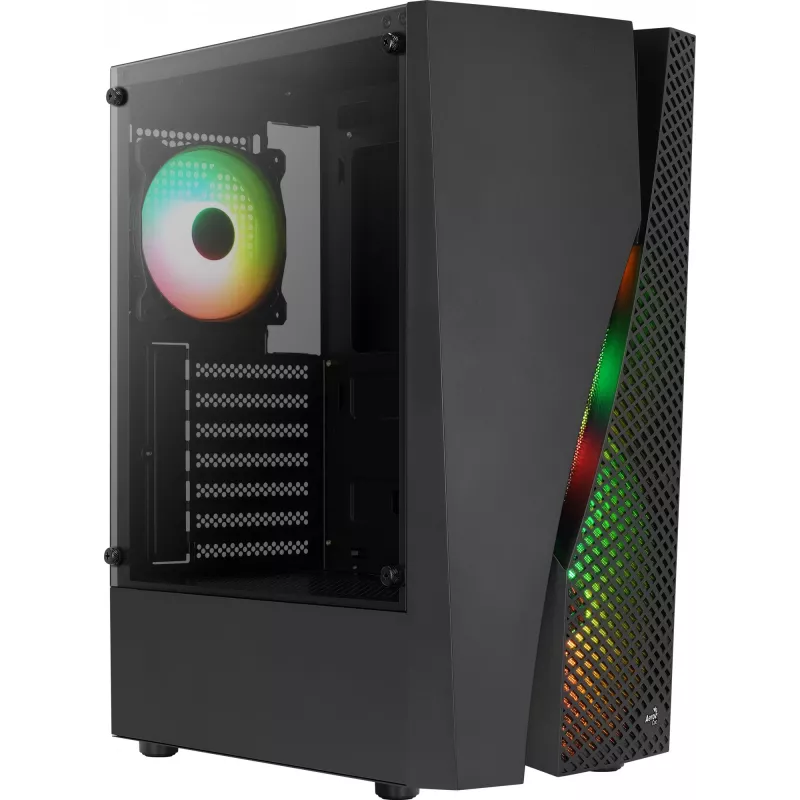

The front panel with built-in air vents increases airflow and allows your LED front fans to remain visible. A tempered glass side panel showcases the build while a dual-chamber interior separates heat-generating components to improve overall cooling. Multiple fan and radiator mounting locations, plus dedicated fan mounts on the PSU shroud for VGA cooling, support high-performance configurations.

Key specifications

• Drive bays: up to 4 x 2.5" SSDs and up to 2 x 3.5" HDDs (configurations vary by motherboard size)
• Motherboard support: ATX, Micro-ATX, Mini-ITX
• CPU cooler clearance: up to 158 mm
• Graphics card clearance: up to 297 mm (without front fan)
• Air cooling support: Front: 3 x 120 mm or 2 x 140 mm; Top: 2 x 120 mm; Rear: 1 x 120 mm; PSU shroud: 2 x 120 mm
• Liquid cooling support: Front: 120/240/280 mm radiator (for 280 mm: max length 323 mm, max thickness 28 mm); Rear: 120 mm radiator
• Side panel: tempered glass

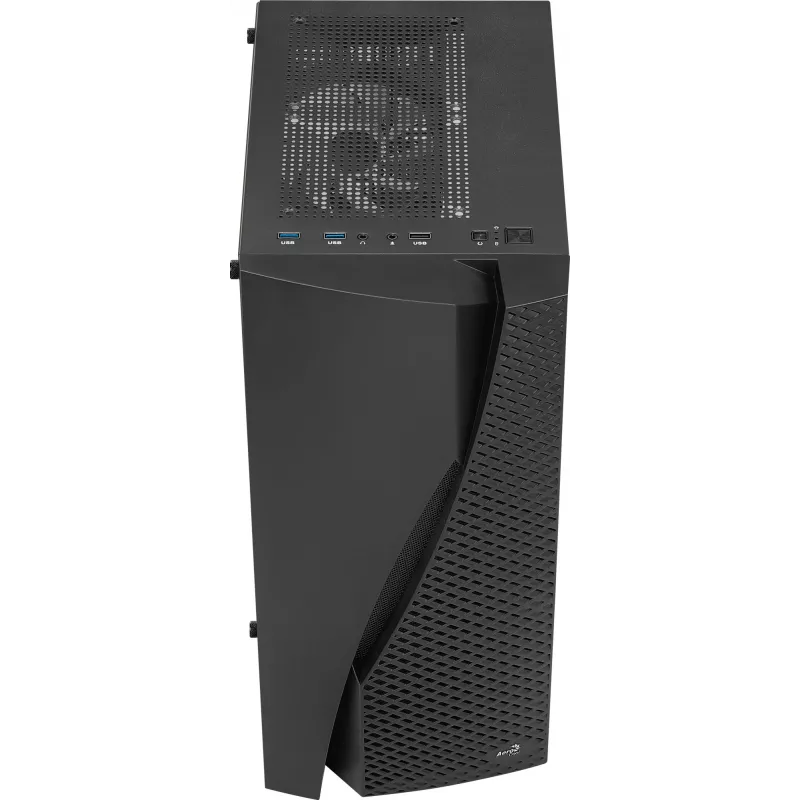

• Front I/O: 2 x USB 3.0, 1 x USB 2.0, HD audio, mic, power button

How to use

Install the chosen motherboard (ATX, Micro-ATX or Mini-ITX) and route cables through the dual-chamber layout to separate power and data lines from the main airflow path. Mount storage drives according to the motherboard form factor: Micro-ATX and ATX systems typically use up to two 2.5"/3.5" bays, while Mini-ITX can accommodate up to four 2.5" drives. Populate fan mounts and radiators based on your cooling strategy—air setup in front, top and rear, or liquid radiators in front and rear. Use the PSU shroud fan mounts if additional graphics card cooling is required.

Recommendations

For optimal cooling, leave at least one front fan position free if planning to install a longer 280 mm radiator; check GPU length against clearance when using front-mounted fans. Regularly clean vents and dust filters to maintain airflow performance.
