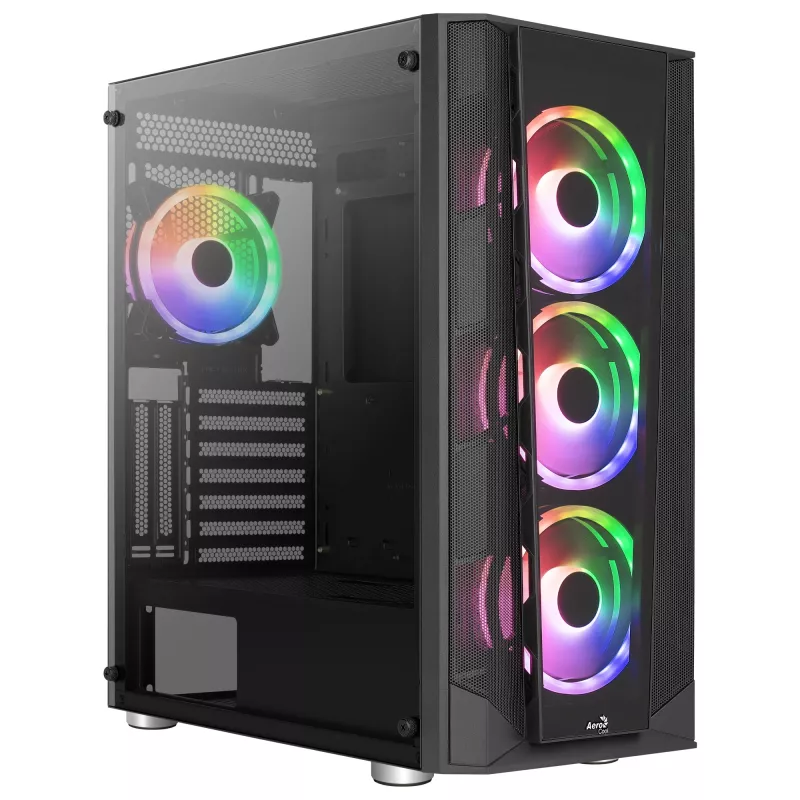

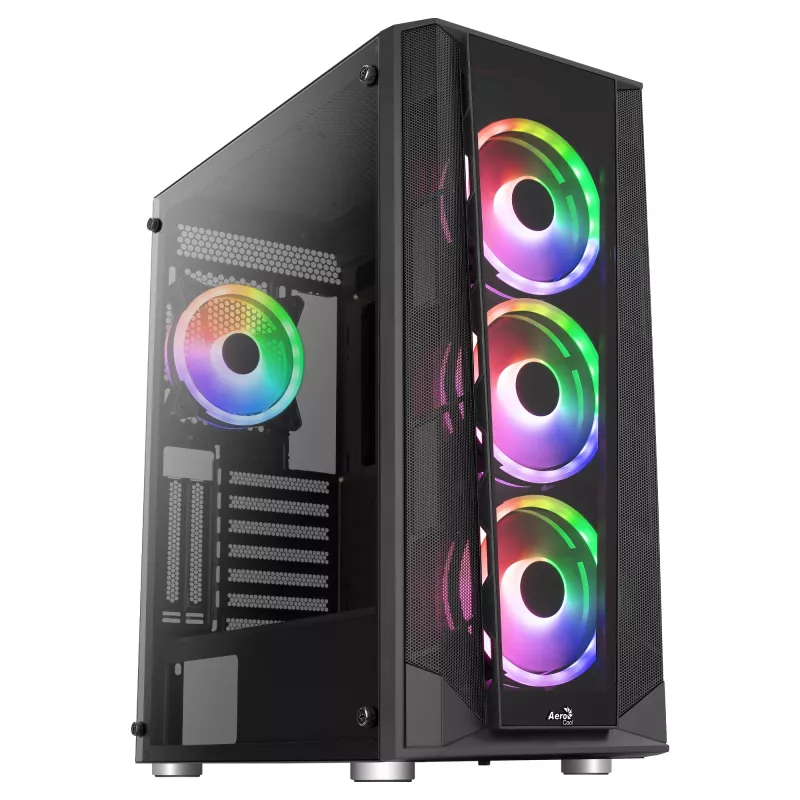

Aerocool PRISMBKV3 PC Case ATX Black 4 Fans ARGB Front Side Side Tempered Glass

High-performance mid tower case with a tempered glass front panel design and full tempered glass side panel, allowing you to showcase the inside of your rig. Comes equipped with four 12cm Addressable RGB fans that can be controlled using LED control button or ARGB motherboard. Includes a 6-port ARGB control hub to connect and control your ARGB fans.

ADDRESSABLE RGB COMPATIBLE
Control your Addressable RGB using compatible ARGB motherboards including ASUS Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion (with 5V 3-Pin ARGB header).

Addressable RGB can be controlled using any of two ways:
LED control button or ARGB motherboard.

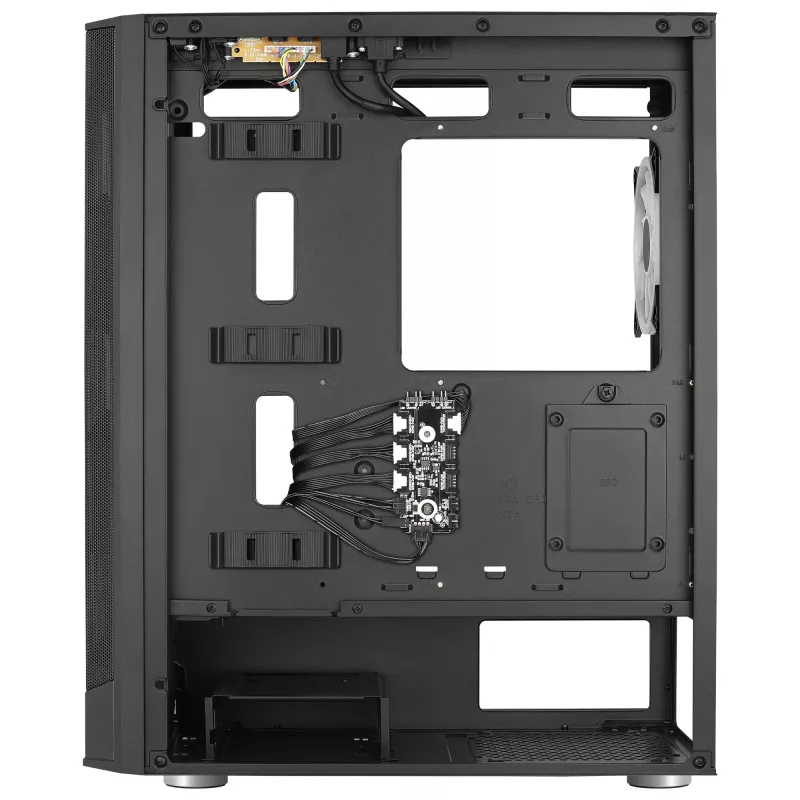

6-PORT ARGB CONTROL HUB
Features a 6-port hub with PWM control functions and allows you to connect up to six 6-Pin AeroCool Addressable RGB fans and up to two 3-Pin Addressable RGB accessories with +5V ARGB connector.

Access 16.8 million colors using compatible Addressable RGB motherboard (Asus Aura Sync, MSI Mystic Light Sync, and Gigabyte RGB Fusion).

PWM COMPATIBILITY
Please check if the 4-Pin fan header on your motherboard is PWM compatible.

- PWM based – PWM compatible
- Voltage based – not PWM compatible

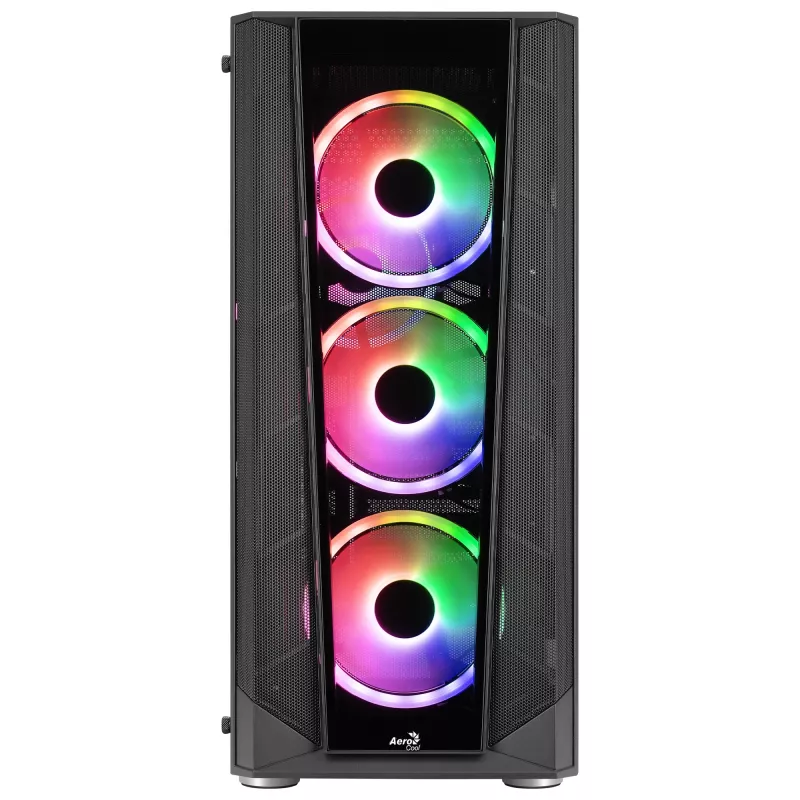

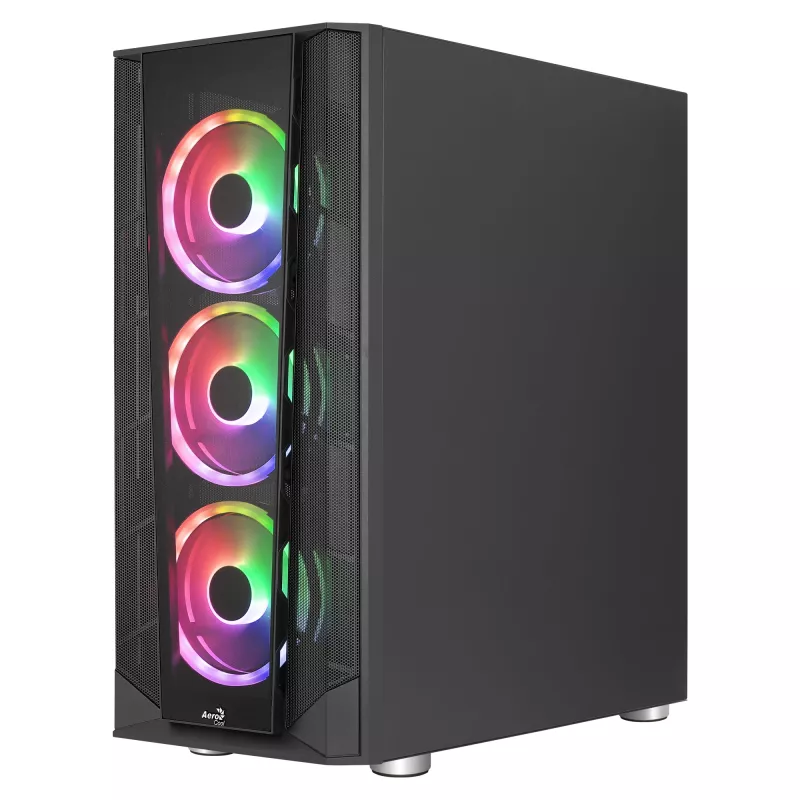

FOUR 12CM ADDRESSABLE RGB FANS INCLUDED​
Comes equipped with three 12cm ARGB fans in the front and one 12cm ARGB fan in the rear of the case.

EXPANSION SLOTS FOR VERTICAL GRAPHICS CARD INSTALLATION
Comes with two additional vertical expansion slots, allowing you to install your graphics card at a vertical position.

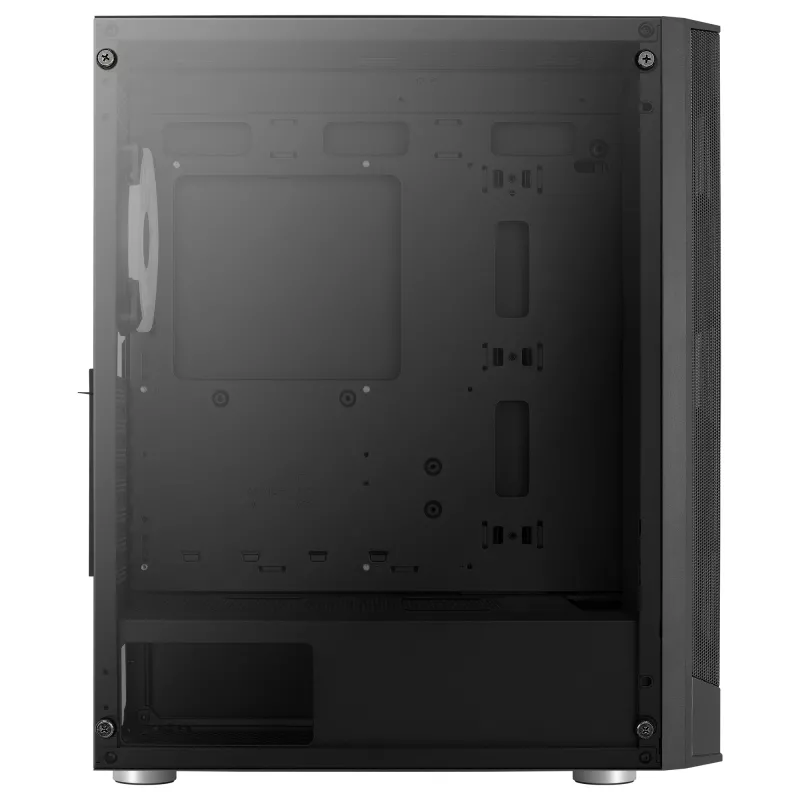

FULL TEMPERED GLASS SIDE PANEL
Comes equipped with a full tempered glass side panel to showcase the inside of your rig and put your components on display.

IMPROVED AIR VENTILATION

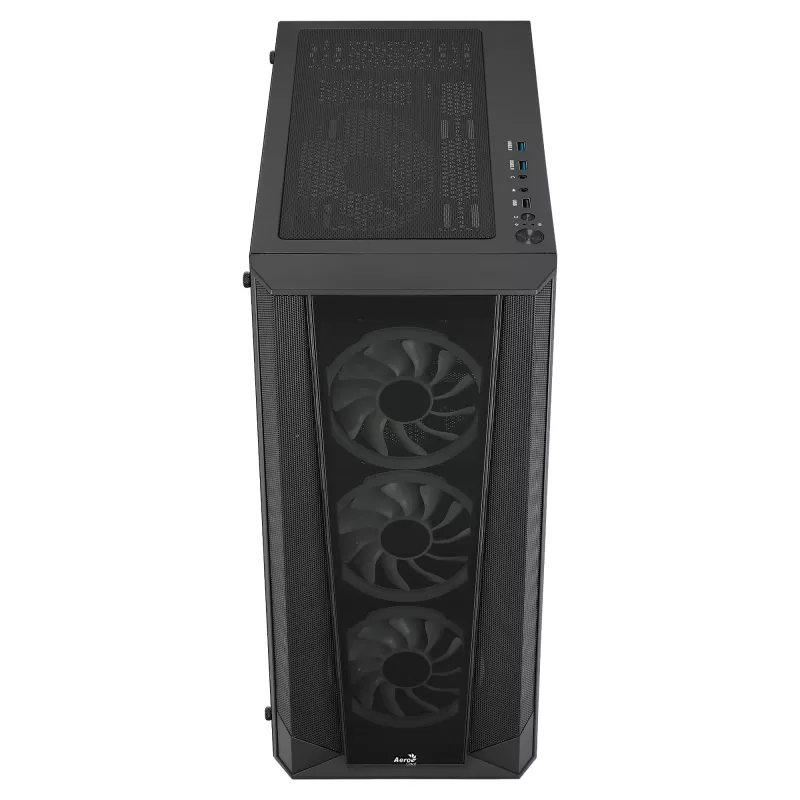

Featuring a mesh front panel design, this case allows for clear viewing of your front LED fans while improving air flow and ventilation.

EFFICIENT CABLE MANAGEMENT
Comes with three convenient cable management clips to keep your cables neat, tidy, and secure.

AIR COOLING
Supports air cooling in the front, top, and rear of the case to enhance cooling performance.

- Front: 120mm x 3 or 140mm x 3 (120mm ARGB Fan x 3 included)
- Top: 120mm x 2 or 140mm x 2 (Max.)

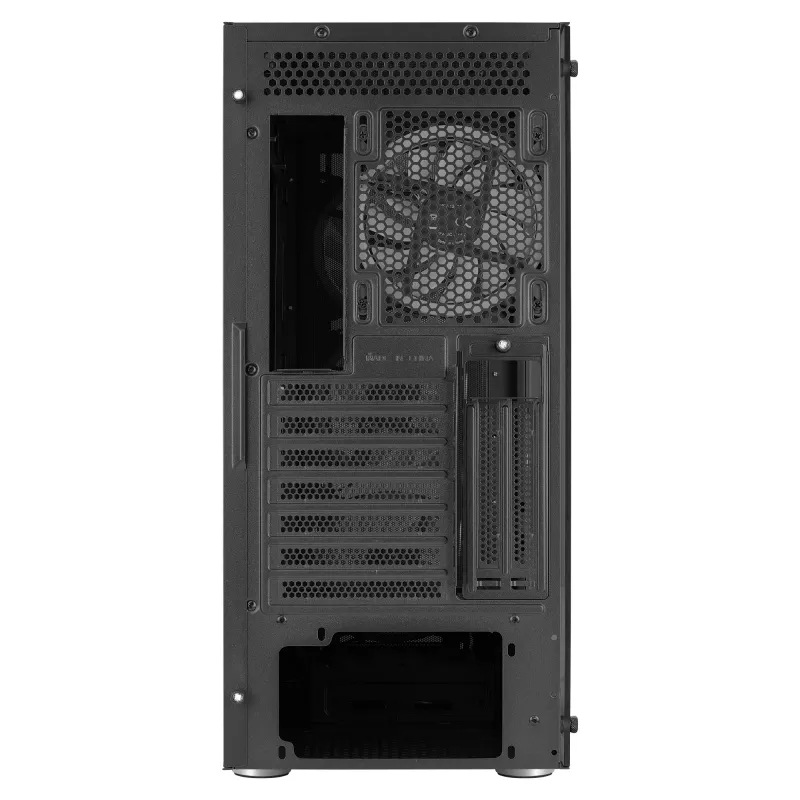

- Rear: 120mm x 1 (120mm ARGB Fan x 1 included)
- PSU Shroud: 120mm x 2 (Max.)

LIQUID COOLING
Supports liquid cooling in the front, top, and rear of the case for maximum efficiency cooling.

- Front: 120/240/280/360mm Radiator (Optional)
- Top: 120/240/280mm Radiator (Optional)
- (Fan + Radiator thickness - Rear: 120mm Radiator (Optional)

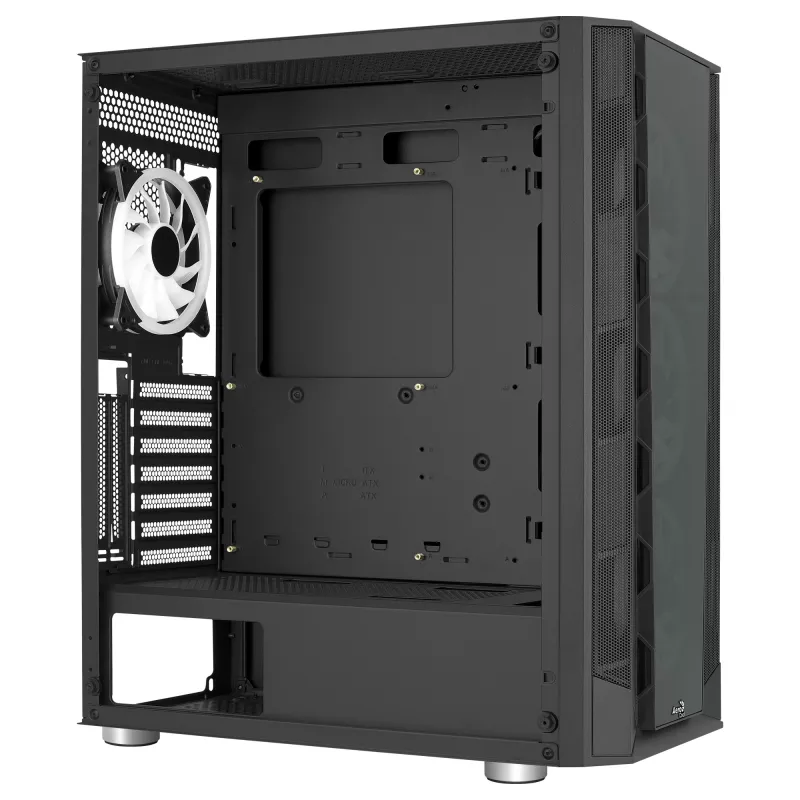

DUAL CHAMBER DESIGN
Built with a dual chamber design to direct heat away from the main chamber for more effective all-around cooling.

BUILT FOR HIGH PERFORMANCE
- Supports ATX, Micro-ATX, and Mini-ITX motherboards
- Supports CPU coolers up to 164mm
- Supports high-end graphics cards up to 346mm (without front radiator)

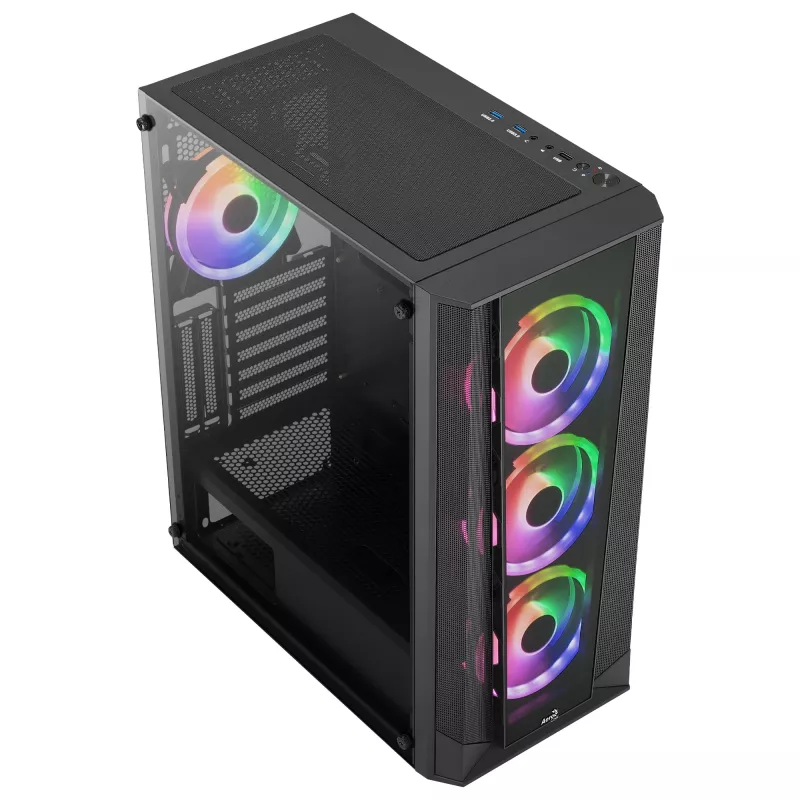

CONVENIENT ACCESS TO YOUR MEDIA
Quick and easy access to 2 x USB 3.0, 1 x USB 2.0, HD audio and mic ports, and power & reset button.

STORAGE CAPABILITY
Supports up to 2 x 3.5” HDDs (1 x 3.5” and 1 x 3.5”/2.5) and 2 x 2.5” SSDs (1 x 2.5” and 1 x 2.5”/3.5”).

EASY MAINTENANCE
Removable dust filters for convenient cleaning and maintenance.

Aerocool PRISMBKV3 PC Case ATX Black 4 Fans ARGB Front Side Side Tempered Glass. Form factor: Midi Tower, Type: PC, Product colour: Black. Supported power supply form factors: ATX. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 120 mm. Width: 216.7 mm, Depth: 403 mm, Height: 477 mm

How to use

Install a compatible 5V 3‑pin ARGB motherboard header or use the included LED control button to operate the Addressable RGB lighting. Connect fans and accessories to the 6‑port ARGB hub following the hub labelling for 6‑pin fans and 3‑pin accessories; connect the hub to the motherboard ARGB header or power as instructed in the case manual. For PWM fan speed control, ensure the motherboard 4‑pin fan header is PWM compatible; if it is voltage based, PWM control will not be available. Mount your chosen motherboard, power supply and drives, route cables using the provided cable management clips, and install front, top or rear cooling components according to radiator and fan clearance limits specified above.

Recommendations

For optimal cooling and RGB control, use a 5V 3‑pin ARGB header on the motherboard with PWM‑capable 4‑pin fan headers where available; keep front dust filters clean and verify radiator plus fan thickness remains under 55mm when fitting liquid cooling.
