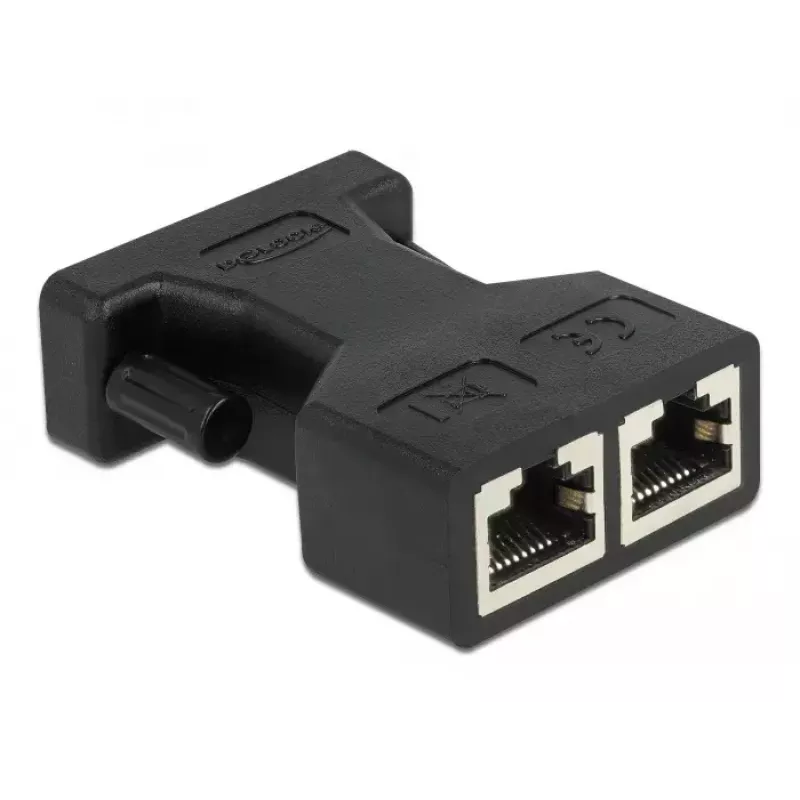

Adapter DeLOCK D-Sub 15 pin female to 2 x RJ45 female AUI 66806

This adapter by Delock features a D-Sub 15 pin female connector on one side and two RJ45 female sockets on the other, allowing devices with AUI (10BASE5/10BASE2 legacy) or D-Sub game/serial style ports to be connected via Cat5 network cables. The compact black adapter provides a simple physical conversion between a D-Sub 15 interface and two RJ45 jacks for network cabling.

Advantages

The adapter provides a direct mechanical conversion from a D-Sub 15 female connector to two RJ45 female sockets, enabling flexible cabling options with standard Cat5 cables. Its compact form factor and black finish make it easy to install and unobtrusive in rack or desktop environments. No additional power or configuration is required for the passive connection.

Suitable for

• Connecting legacy AUI/D-Sub 15 interface devices to RJ45-based cabling
• Extending or redirecting signals over Cat5 network cables between D-Sub and RJ45 endpoints
• Use in environments that require passive adapter conversion between D-Sub and RJ45

Key specifications

• Brand: DELOCK
• Manufacturer part number (MPN): 66806
• EAN: 4043619668069
• Connector 1: D-Sub 15 pin (female)
• Connector 2: 2 × RJ45 (female)
• Product colour: Black

How to use

Attach the D-Sub 15 female side to the corresponding D-Sub port on your device and connect up to two Cat5 cables to the RJ45 female sockets. Route the Cat5 cables to the remote RJ45 terminations or compatible AUI conversion modules as required. Ensure connectors are seated firmly and secured if the device provides fastening screws.

Recommendations

Use standard Cat5 or higher twisted-pair cables for reliable signal transmission. Verify compatibility of the connected devices with passive AUI/D-Sub to RJ45 conversion — some legacy equipment may require specific pin wiring or active transceivers.
