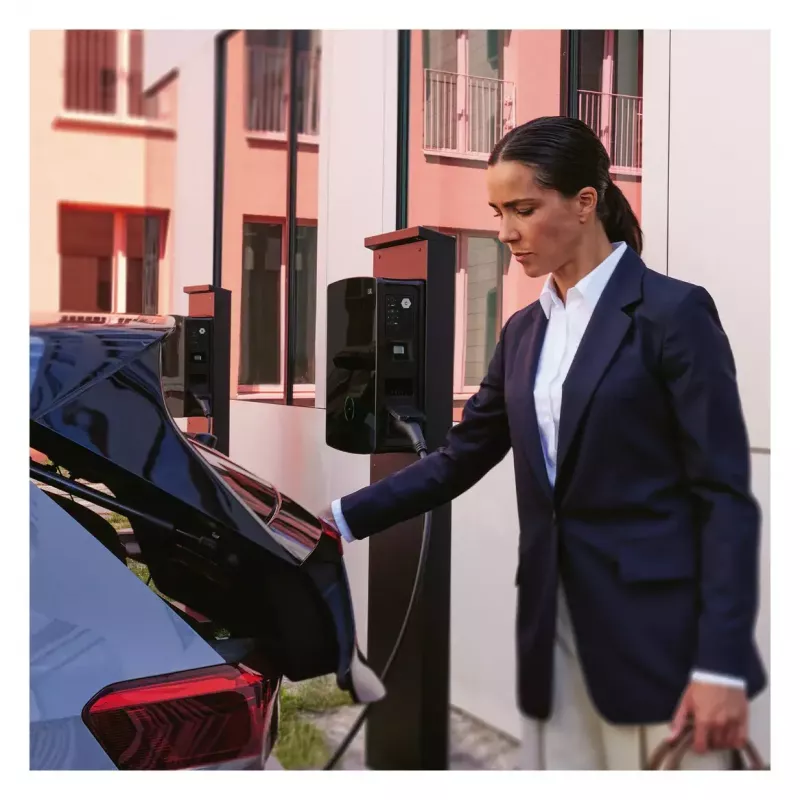

ABL eM4 Twin Black ABL eM4 Twin Power plug Type 2 Output power 22 kW Outdoor

The ABL eM4 Twin Black is an outdoor wallbox with two Type 2 charging sockets and a maximum output power of 22 kW, designed for companies, housing developments, car parks and private households. The unit supports simultaneous charging of two vehicles and offers app-controlled locking and unlocking of permanently connected charging cables. The wallbox is delivered pre-installed with integrated Type A RCCB and DC residual current detection and is manufactured in Germany to applicable safety standards.

Advantages

The wallbox provides flexible cable entry and quick installation that can be carried out by a single person. Configuration is made simple via the ABL Configuration App for Android and iOS, and the intuitive user interface offers visual and acoustic feedback. Available as a Controller or Extender variant, the eM4 Twin allows either independent operation or cost-effective expansion of additional charge points via LAN or WLAN. Static load management can be extended to dynamic load management with the optional ABL Energy Meter. The Controller variant includes pre-configured connectivity (SIM card) and two years of connectivity when used with the ABL reev ready service.

Suitable for

• Commercial properties and business fleets
• Residential buildings and housing developers
• Car parks and shared parking facilities
• Private households requiring outdoor charging

Key specifications

• Brand: ABL
• Model: eM4 Twin Black
• Plug type: Type 2 (two sockets)
• Maximum output power: 22 kW
• Installation: wall-mounted, outdoor use
• Dimensions (W x D x H): 428 mm x 145 mm x 516 mm
• Safety: Integrated Type A RCCB and DC residual current detection
• Variants: Controller (integrated communication) and Extender (expandable via LAN/WLAN)
• Connectivity: reev ready option with SIM pre-installed and two years connectivity for Controller
• MPN: 100000183
• EAN: 4011721191447

How to use

Mount the ABL eM4 Twin to a suitable wall using the flexible cable entry and follow the installation instructions provided by a qualified electrician. Configure the device using the ABL Configuration App for Android or iOS to set user access and charging parameters. For Controller/Extender groups, connect additional Extender units via LAN or WLAN if required. Use the app to lock or unlock permanently connected charging cables and to monitor charging status. If dynamic load management is needed, install the ABL Energy Meter accessory and enable the function according to the product documentation.

Recommendations

Install the wallbox in accordance with local electrical codes and by a qualified installer. Choose the Controller variant for integrated communication and initial connectivity; add Extender units for larger installations. Consider the ABL Energy Meter when multiple charge points are used to optimise load distribution.
