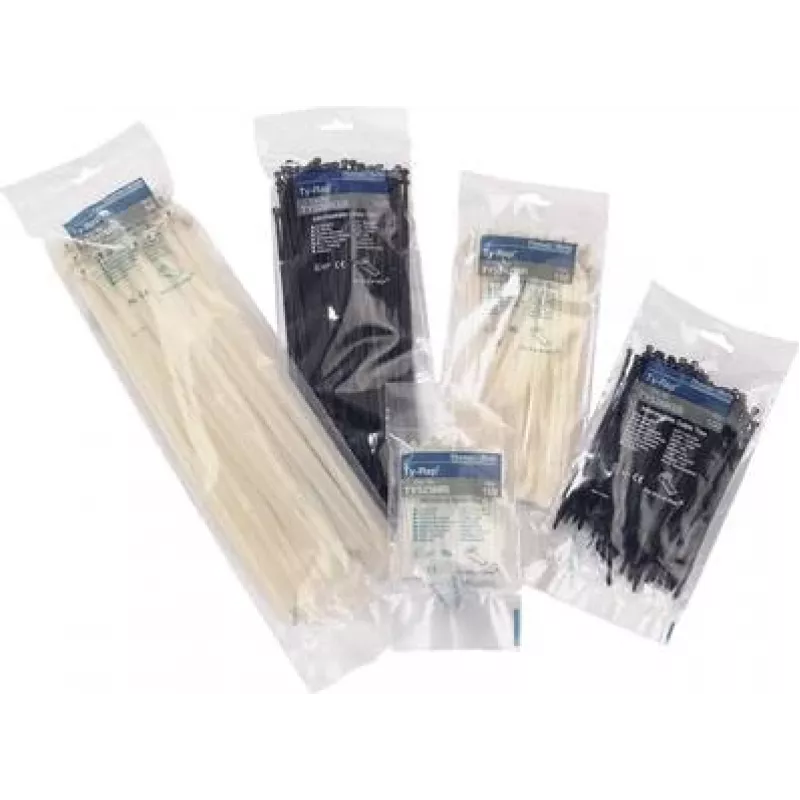

ABB Ty-Rap® Cable Tie with Stainless Steel Barb Lock, 361 mm x 4.8 mm, Black, 100 Pack (TY528MXR)

The ABB Ty-Rap® TY528MXR cable tie is a high-performance fastening solution designed for secure and reliable bundling of wires and cables. Featuring a stainless steel barb locking mechanism, this tie provides exceptional holding strength and is resistant to loosening under vibration or temperature changes. Made from durable polyamide 6.6, it offers excellent UV resistance and halogen-free composition, making it suitable for both indoor and outdoor applications. With a length of 361 mm and a width of 4.8 mm, it can accommodate bundles up to 102 mm in diameter. Each pack contains 100 ties in black color, ideal for professional electricians, installers, and maintenance teams.

Advantages

Stainless steel barb ensures a secure, tamper-resistant lock that does not release under stress. The polyamide 6.6 material provides high tensile strength (222 N) and wide operating temperature range (-40 °C to +85 °C). UV resistance allows for long-term outdoor use without degradation. Halogen-free composition meets environmental and safety standards. UL 94 V-2 flammability rating ensures fire safety.

Suitable for

• Electrical installations and wiring management
• Automotive and aerospace cable bundling
• Industrial control panels and machinery
• Telecommunications and data center cable organization
• Outdoor and harsh environment applications

Key specifications

• Product Type: Standard Cable Tie
• Locking Mechanism: Stainless Steel Barb
• Material: Polyamide 6.6 (PA6.6)
• Color: Black
• Length: 361 mm
• Width: 4.8 mm
• Max Bundle Diameter: 102 mm
• Tensile Strength: 222 N (50 lbs)
• Operating Temperature: -40 °C to +85 °C
• UV Resistance: Yes
• Halogen-Free: Yes
• Flammability Rating: UL 94 V-2
• Quantity per Pack: 100
• Series: Ty-Rap®
• Application Environment: Indoor/Outdoor
• Minimum Installation Temperature: -20 °C

Recommendations

For best results, use with ABB Ty-Rap® installation tools to ensure proper tension and flush cut. Store in a cool, dry place away from direct sunlight. Suitable for use in cable trays, conduit, and surface mounting applications.
