ABB F202B-1603 Type B Residual Current Circuit Breaker, 2-Pole, 16 A, 30 mA, 230/400 V AC 2CSF202568R1160

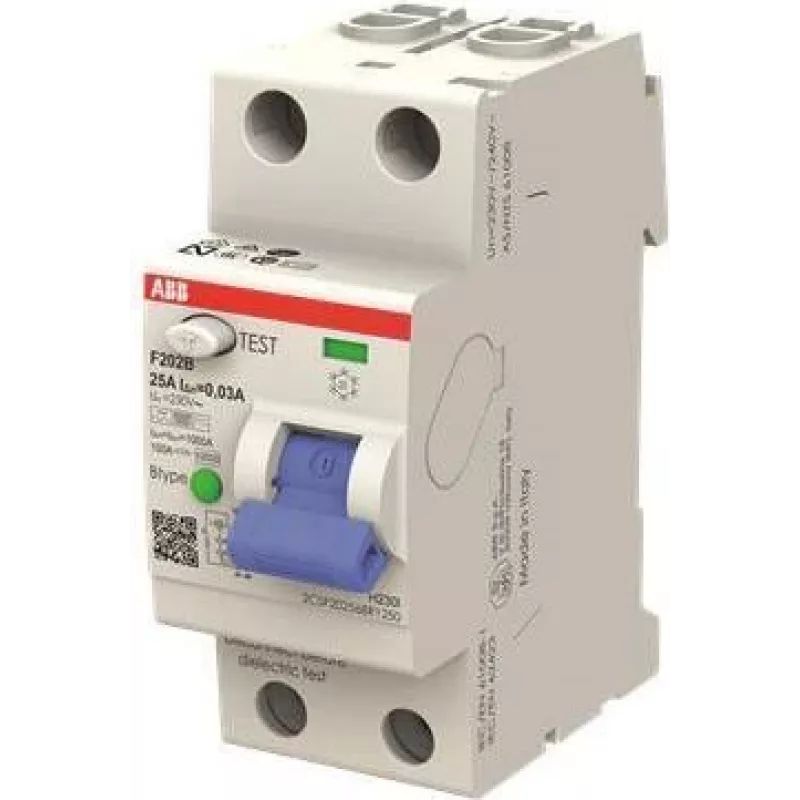

The ABB F202B-1603 stands apart from standard residual current devices by offering Type B protection, which detects AC, pulsating DC, and smooth DC residual currents. This capability is essential for circuits with three-phase rectifiers, frequency converters, EV charging stations, and other equipment that can generate DC fault currents. With a 16 A rated current and 30 mA sensitivity, it provides both personal protection and fire prevention in a compact 2-module DIN rail housing.

Highlights

• Type B residual current protection for AC, pulsating DC, and smooth DC faults
• 2-pole design, 16 A rated current, 30 mA rated residual operating current
• Rated voltage 230/400 V AC, suitable for 50/60 Hz systems
• 10 kA rated conditional short-circuit current (Inc) and residual short-circuit current (IΔc)
• Instantaneous tripping characteristic for rapid disconnection
• DIN rail mounting with screw terminals accepting up to 35 mm² rigid conductors
• IP20 protection (terminals), IP40 when installed in an enclosure
• Complies with IEC/EN 61008-1

In daily use

Installation is straightforward on a standard 35 mm DIN rail. The screw terminals provide secure connections for conductors up to 35 mm² rigid or 25 mm² flexible, ensuring reliable performance in distribution boards. The device operates within a temperature range of -25 °C to +55 °C, making it suitable for a wide range of environments. With an electrical endurance of 10,000 cycles and mechanical endurance of 20,000 cycles, it offers long-term reliability. The instantaneous tripping ensures that any residual current above 30 mA is interrupted without delay, protecting both people and equipment.

Full specifications

• Brand: ABB
• Model: F202B-1603
• MPN: 2CSF202568R1160
• EAN: 8012542341154
• Residual current type: Type B (AC, pulsating DC, smooth DC)
• Number of poles: 2P
• Rated current (In): 16 A
• Rated residual operating current (IΔn): 30 mA
• Rated voltage (Ue): 230/400 V AC
• Rated frequency: 50/60 Hz
• Rated conditional short-circuit current (Inc): 10 kA
• Rated conditional residual short-circuit current (IΔc): 10 kA
• Tripping characteristic: Instantaneous
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Terminal capacity flexible: 25 mm²
• Terminal capacity rigid: 35 mm²
• Degree of protection: IP20 (terminals), IP40 (with enclosure)
• Operating temperature range: -25 °C to +55 °C
• Compliance standards: IEC/EN 61008-1
• Electrical endurance: 10000 cycles
• Mechanical endurance: 20000 cycles
• Width in modular spacings: 2

Final note

The ABB F202B-1603 is a robust and versatile RCCB that delivers advanced Type B protection in a compact form factor, making it an excellent choice for modern electrical installations with DC-capable loads.
