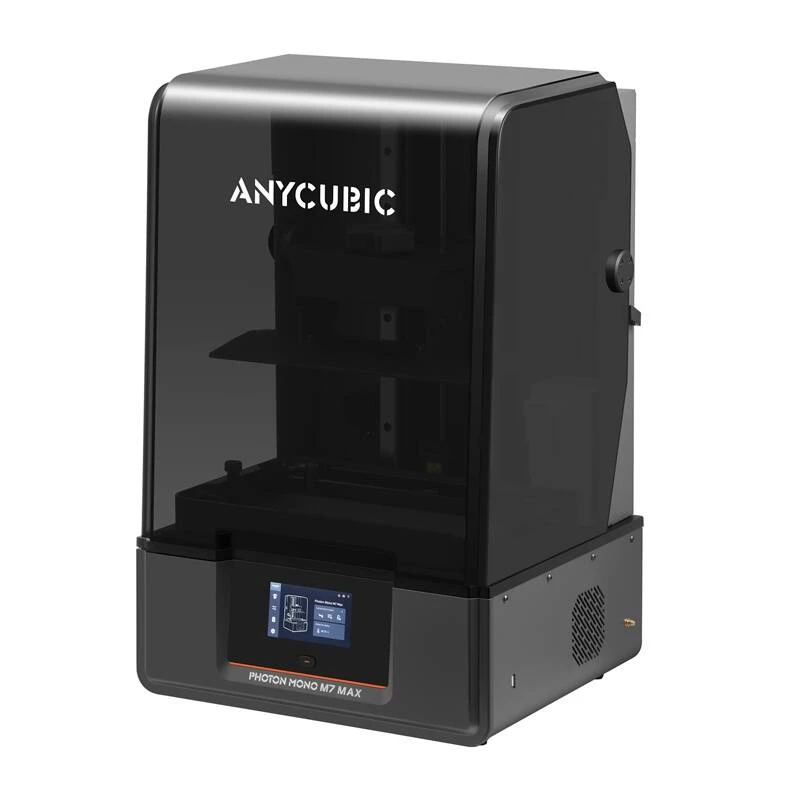

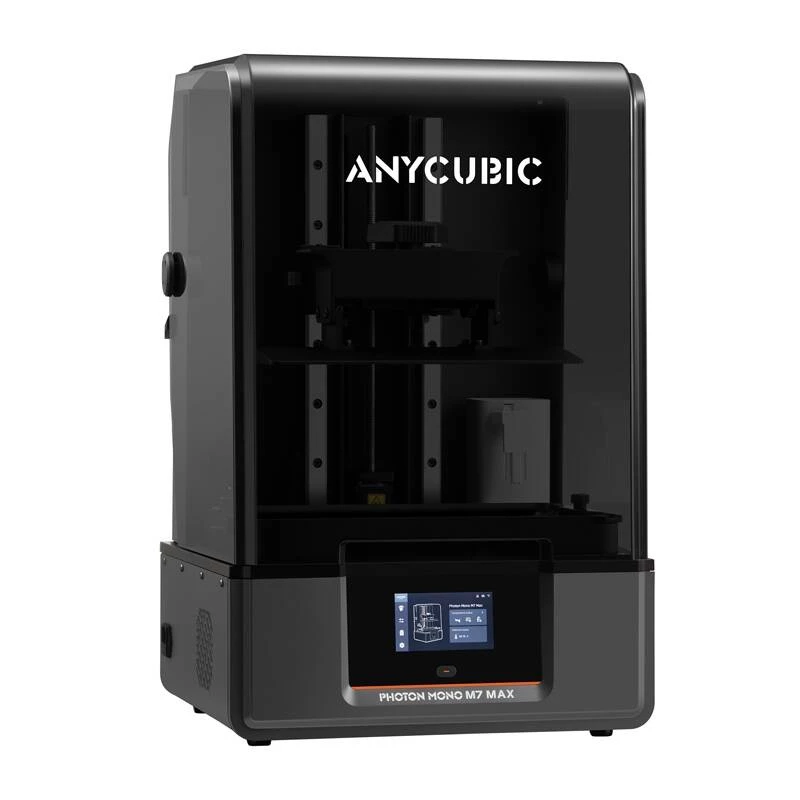

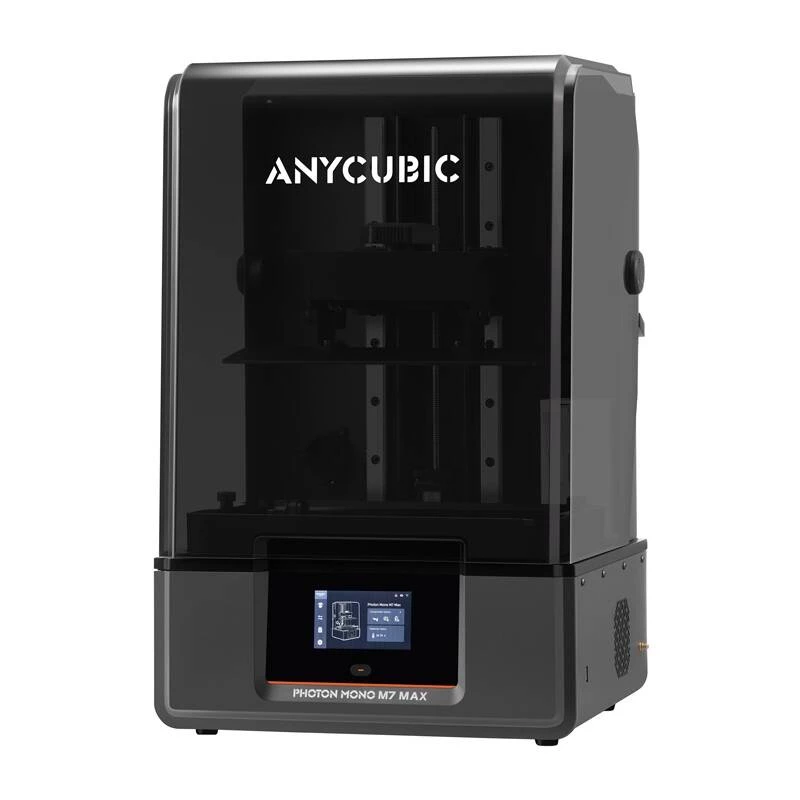

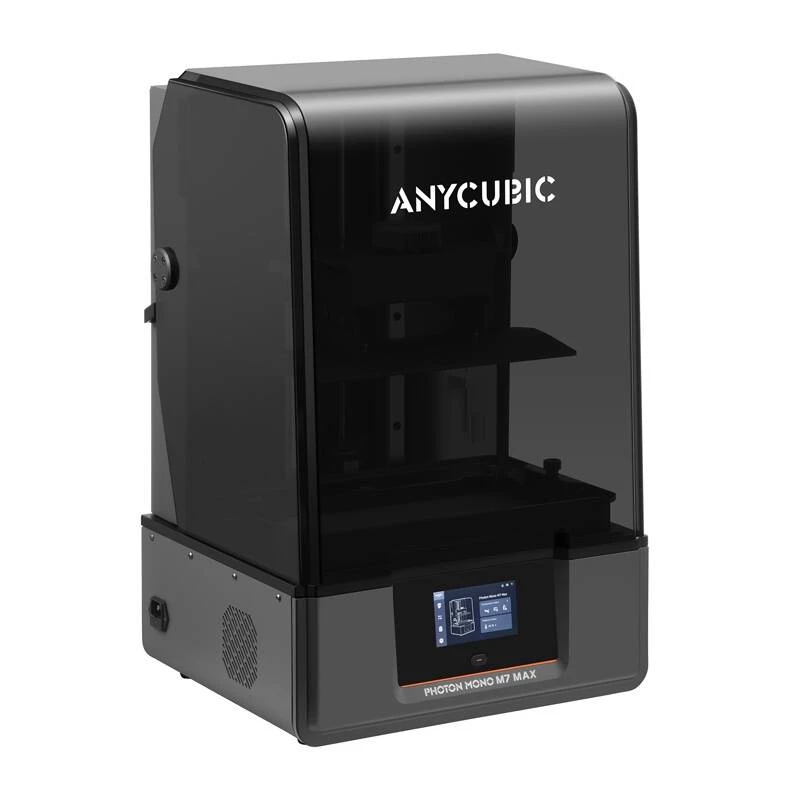

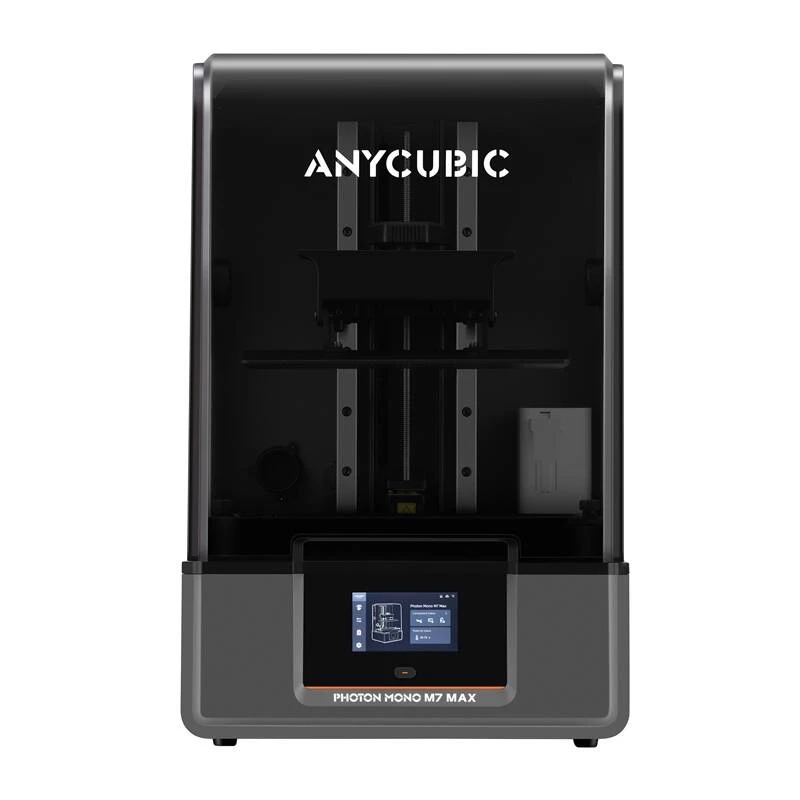

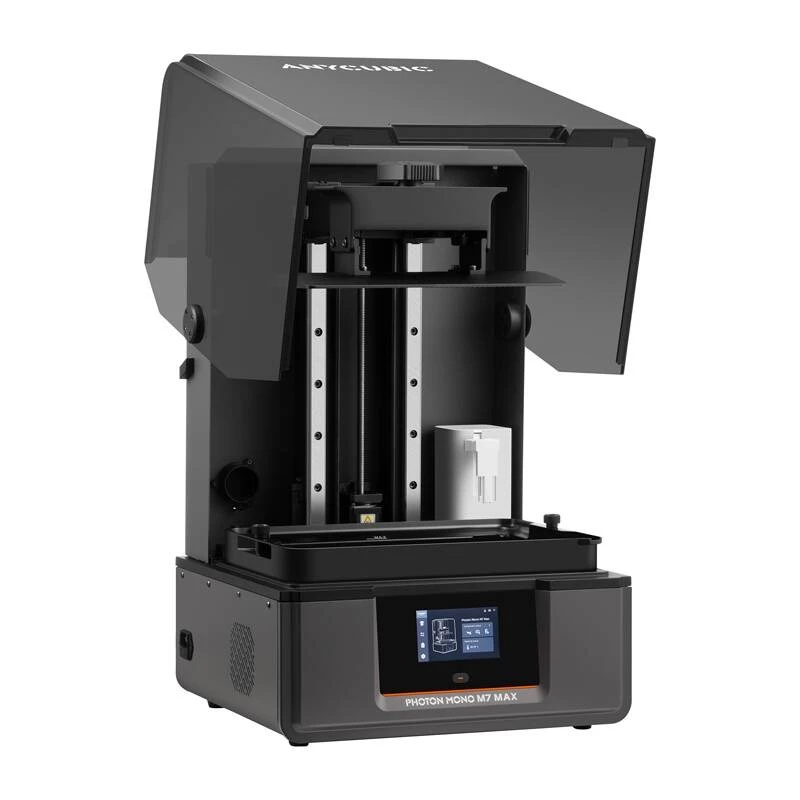

3D printer AnyCubic Photon Mono M7 Max — 8K resolution, large build volume

The Anycubic Photon Mono M7 Max 3D printer combines a high-resolution 7K monochrome LCD matrix and a large build volume to deliver precise, reliable results for professional and advanced hobbyist projects. Its robust construction, integrated cooling and dedicated Anycubic software support make it suitable for detailed miniatures, engineering prototypes, architectural parts and other applications that require fine surface quality and dimensional accuracy.

Advantages

The Photon Mono M7 Max features a 13.6-inch 7K exposure screen (6480 × 3600) for superior detail reproduction and a spacious printing area (298 × 164 × 300 mm) that allows larger models to be printed without segmentation. An advanced UV curing system and a COB light source with fresnel lens enable fast layer exposure while maintaining consistent quality. The printer includes a precise dual-linear Z-axis with 10 µm accuracy, a laser-engraved aluminum build platform and a replaceable protective film to extend component life. Built-in cooling, stable power delivery and clear touchscreen controls simplify long print runs and everyday operation.

Key specifications

• Manufacturer: Anycubic
• Model: PM7M-IP-O (Photon Mono M7 Max)
• Exposure screen: 13.6" monochrome 7K (6480 × 3600), typical life ~2000 hours
• Light source: COB light source with forward-facing reflectors and fresnel lens
• Resin tank: 1.3 L unibody design with scale lines
• Print volume: 298 × 164 × 300 mm (14.7 L)
• Z axis: Dual linear rails, 10 µm accuracy
• Build platform: Laser-engraved aluminum alloy
• Layer heights and peak speeds: 0.05 mm — up to 31 mm/h; 0.1 mm — up to 63 mm/h
• Control panel: 4.3" TFT touchscreen
• Data input: USB Type-A 2.0, Wi‑Fi
• Power supply: Rated 180 W
• Machine leveling: 4-point manual leveling
• Dimensions (W×D×H): 425 × 362 × 652 mm
• Weight: 24 kg

How to use

Install the printer on a stable, level surface and connect the power cord. Fill the unibody resin tank to the recommended level using compatible resins and secure the build platform after performing the 4-point manual leveling procedure. Prepare models in the Anycubic slicing software, export via USB or Wi‑Fi and select appropriate exposure settings and layer height based on resin type. Monitor initial layers to confirm adhesion, use the touchscreen to pause or stop a print if necessary, and allow completed prints to fully cure and clean according to resin manufacturer instructions.

Recommendations

Use resins recommended for MSLA printing and follow safety precautions: wear protective equipment, work in a ventilated area and handle uncured resin with care. Replace the protective film in the resin tank when scratched, perform regular maintenance on the build platform and Z-axis rails, and keep firmware and Anycubic software updated for best results.
