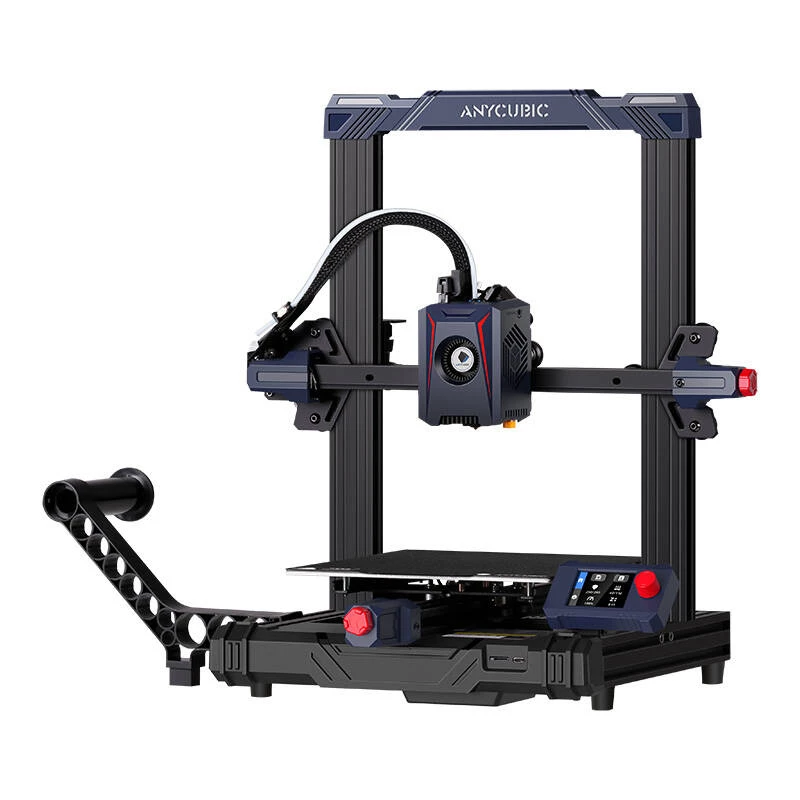

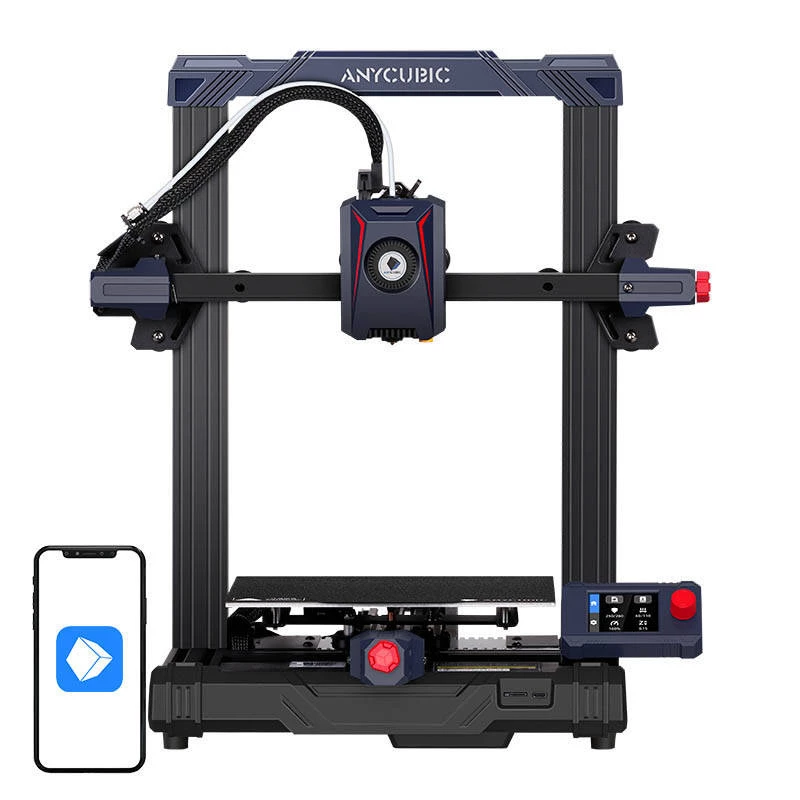

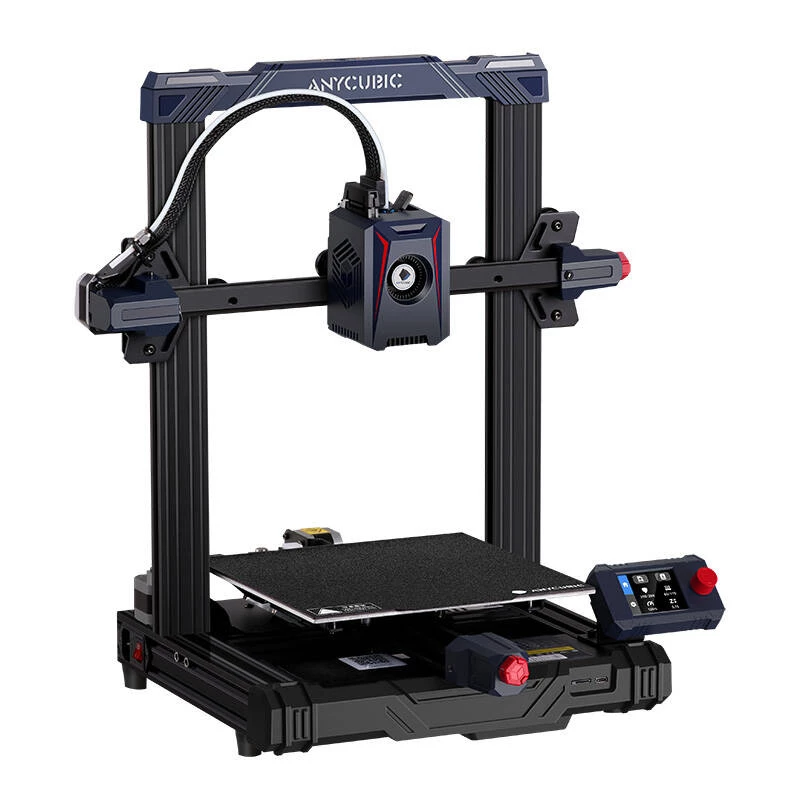

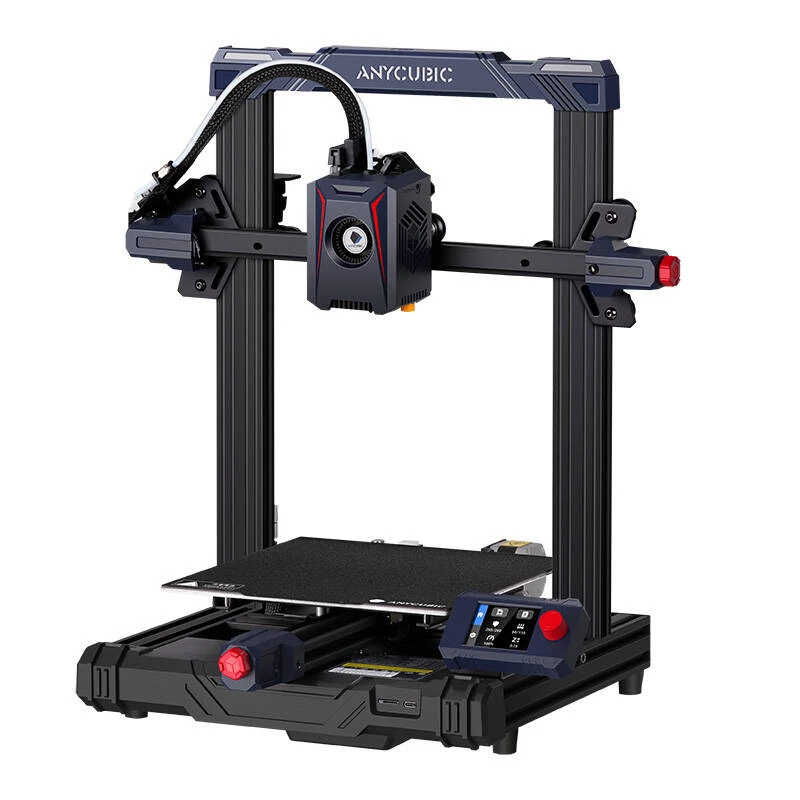

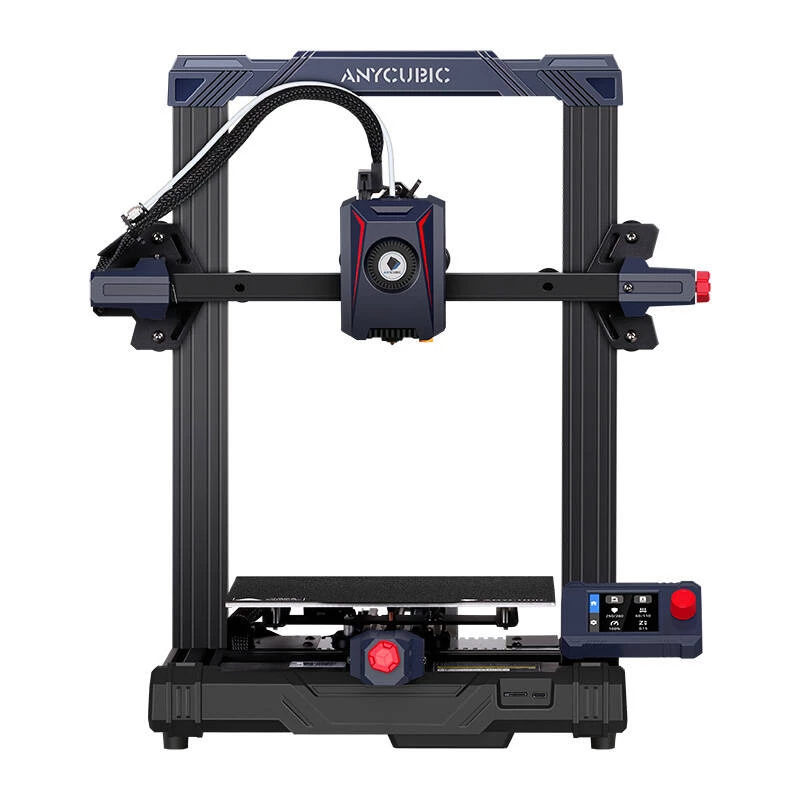

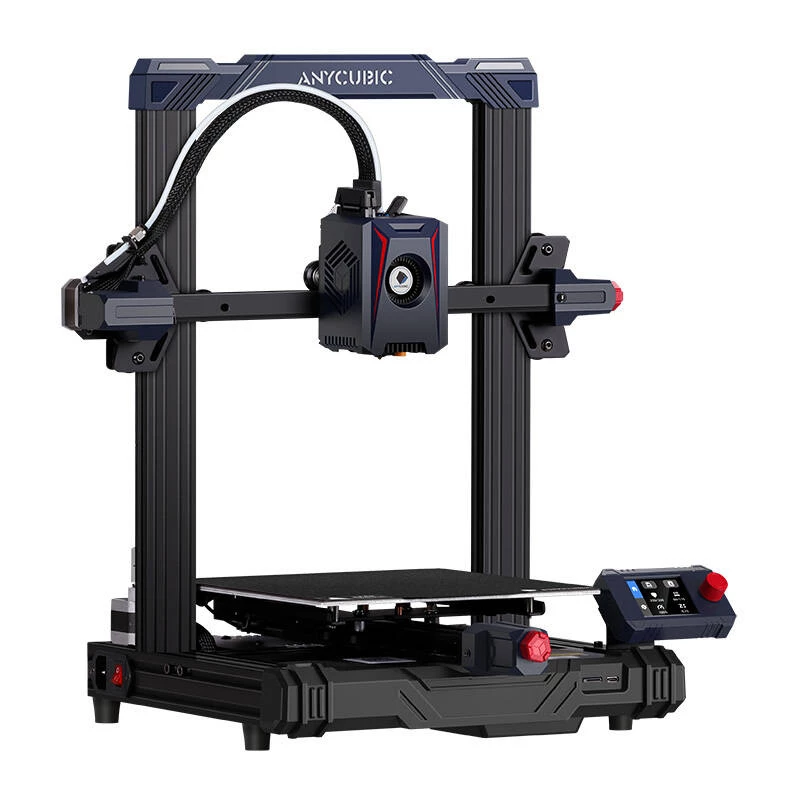

3D printer AnyCubic KOBRA 2 NEO FDM — build volume 256×256×260 mm

AnyCubic Kobra 2 Neo 3D Printer is a Cartesian FDM/FFF desktop printer designed for fast, accurate production of models. It features an integrated extruder mounted above the printhead, a magnetic PEI spring steel platform (220 x 220 mm) and a 32-bit motherboard. The printer supports LeviQ 2.0 automatic leveling with 25-point compensation, accepts MicroSD cards for file input and is compatible with PLA, TPU, ABS and PETG filaments. Maximum print dimensions are 250 x 220 x 220 mm and the device weighs 7.3 kg.

Advantages

The Kobra 2 Neo provides high printing speeds up to 250 mm/s while recommending standard use at 150 mm/s for balanced quality. Its new integrated extruder with a 60 W heater and a 7,000 rpm cooling fan accelerates filament melting and part cooling. Features such as linear drive and input shaping improve surface smoothness, detail and stability of prints. The modular five-part assembly and a 2.4-inch LCD with rotary knob make setup and operation straightforward.

Key specifications

• Manufacturer: AnyCubic
• Model: KNVA0BK-Y-O
• Type: FDM / FFF
• Structure: Cartesian
• Leveling: LeviQ 2.0 automatic system (25-point)
• Build plate: Magnetic PEI spring steel platform, 220 x 220 mm
• Max. printing dimensions: 250 x 220 x 220 mm (W x D x H)
• Max. printing volume: 12.1 l
• Max. printing speed: ≤ 250 mm/s (recommended 150 mm/s)
• Extruder: Integrated, located above the printhead; heater power 60 W
• Nozzle: ≤ 260°C, Ø 0.4 mm (replaceable)
• Table temperature: ≤ 110°C
• Compatible filaments: PLA / TPU / ABS / PETG
• Cooling fan speed: 7000 rpm
• Control panel: 2.4-inch LCD with rotary knob
• Data input: MicroSD card (TF card included, 8 GB)
• Power supply: 400 W
• Motherboard: 32-bit
• Filament detection: Optional
• Y axis: x1 rail
• Z axis: Threaded rod
• X/Y belt tensioner: Adjustable button
• Weight: 7.3 kg
• Dimensions: 485 x 440 x 440 mm

How to use

Assemble the printer from its five modules following the supplied user manual. Insert the MicroSD card with G-code files or connect the printer as specified in the manual. Load filament into the integrated extruder and set the nozzle temperature according to the filament type (nozzle rated up to 260 °C). Start automatic LeviQ 2.0 leveling to compensate Z-axis deviation before each print. Use the 2.4-inch LCD and rotary knob to select files and adjust printing parameters such as speed and temperature. Monitor the first layers to ensure good bed adhesion on the magnetic PEI spring steel platform.

Recommendations

For balanced print quality and speed, use the standard printing speed of around 150 mm/s. Preheat the build plate (up to 110 °C) and nozzle to temperatures appropriate for the chosen filament; ensure the cooling fan runs during bridging or small features for better detail. Keep spare nozzles and a basic tool kit on hand; the included test filament can be used for initial calibration and test prints.
