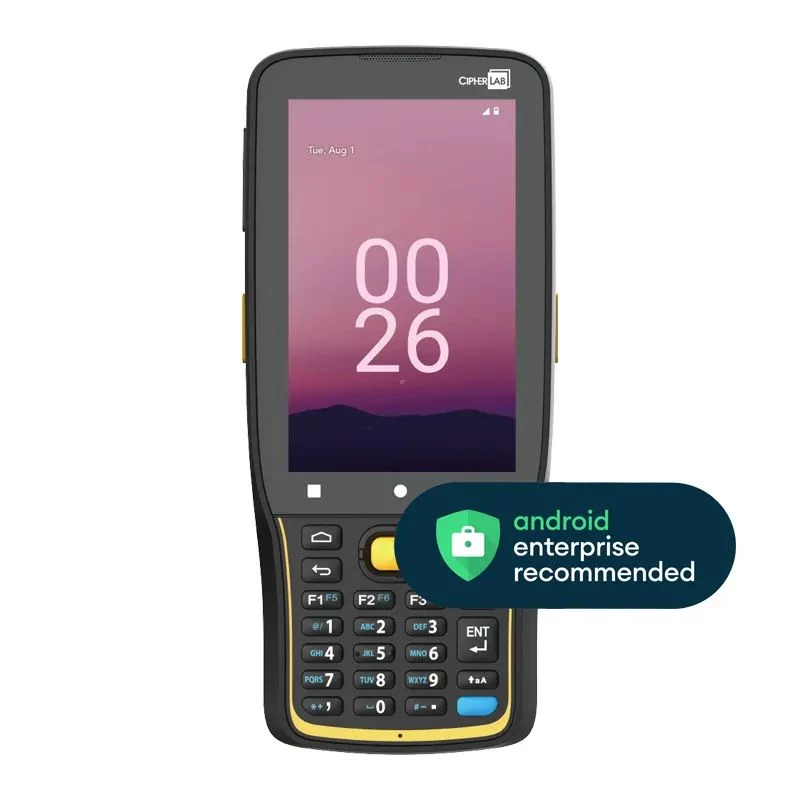

2D Scanner CIPHERLAB RK26 Series SE4750 with Bluetooth and Wi‑Fi

The CIPHERLAB RK26 Series SE4750 is a handheld portable data collection device with an SE4750 medium-range 2D imager, 4.0" (10.5 cm) display (480x800) and a 16 MP camera. It runs Android 12 with Google Mobile Services, is powered by a Qualcomm octa-core 2.0 GHz processor with 4 GB RAM and 64 GB flash, and supports wired and wireless connectivity including USB-C, Bluetooth, Wi‑Fi 802.11ac, NFC and microSD expansion. The unit includes a 4000 mAh battery; the power supply unit is ordered separately. The housing meets IP65 protection for dust and water resistance.

Advantages

The RK26 Series SE4750 combines a medium-range 2D imager with a high-resolution camera and a bright 4.0" display, enabling reliable barcode capture and visual verification. Its octa-core processor with 4 GB RAM and 64 GB flash provides responsive operation for mobile applications, while multiple connectivity options (Bluetooth, Wi‑Fi, USB‑C and NFC) allow flexible integration into existing systems. The device is ruggedized to IP65 and uses a removable 4000 mAh battery to support extended field use.

Suitable for

• Retail POS and inventory counting
• Warehouse picking and logistics tracking
• Mobile field service and asset management
• Ticketing and event check-in

Key specifications

• Scanner: 2D imager SE4750 (medium range)
• Display: 10.5 cm (4.0"), 480 x 800 pixels
• Camera: 16 MP
• Processor: Qualcomm octa-core, 2.0 GHz
• Memory: 4 GB RAM
• Storage: 64 GB flash + microSD slot
• Operating system: Android 12 with Google Mobile Services
• Connectivity: USB‑C, Bluetooth, Wi‑Fi 802.11ac, NFC
• Battery: 4000 mAh (included); power supply sold separately
• Protection class: IP65

How to use

Power on the device and set up Wi‑Fi or Bluetooth to connect to your host system. Open your data capture or POS application, aim the SE4750 imager at the barcode within the recommended scanning range, and pull the trigger or use the on‑screen control to capture. Use the 16 MP camera for photographic documentation where required. Insert a microSD card if additional storage is needed. Charge the battery with an appropriate power supply (sold separately) or replace the battery for continuous operation.

Recommendations

For reliable scanning, keep the imager window clean and ensure adequate lighting when reading poorly printed or damaged barcodes. Use Wi‑Fi 802.11ac for high-bandwidth tasks and Bluetooth for quick tethered connections; store the device within its IP65-rated range to protect against dust and water exposure.
