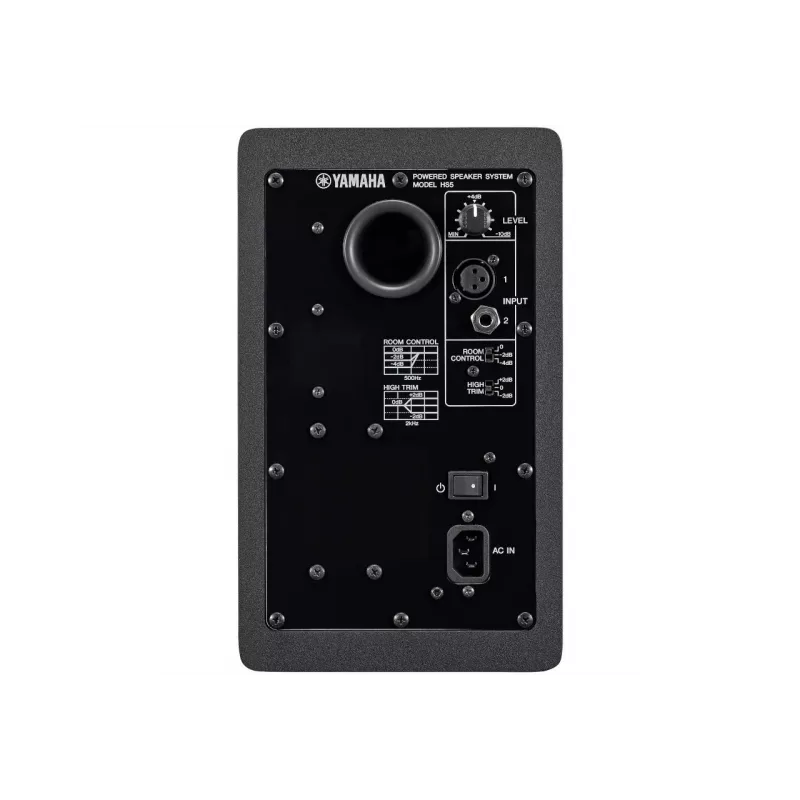

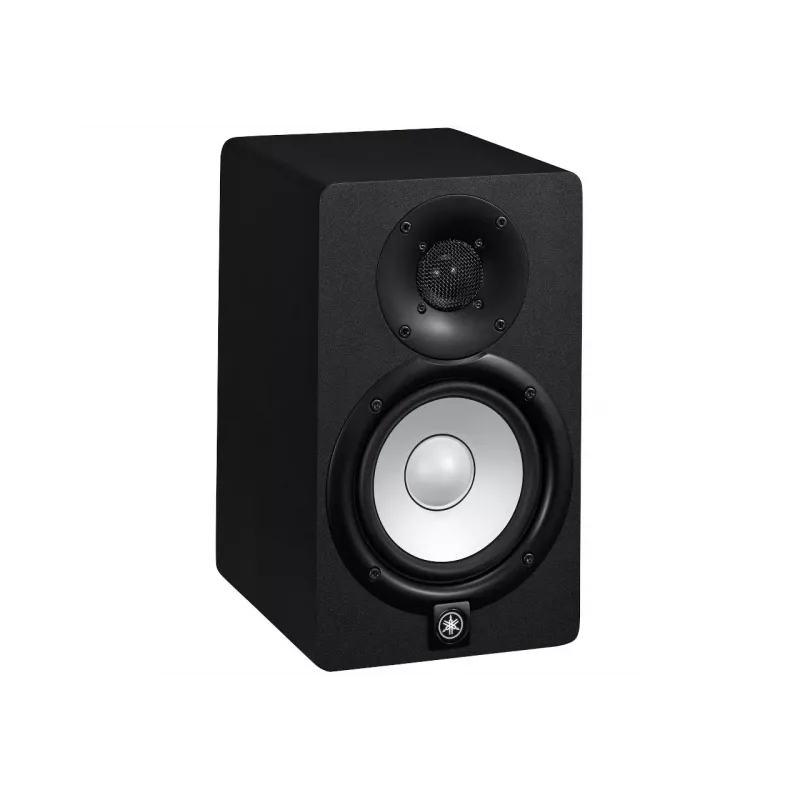

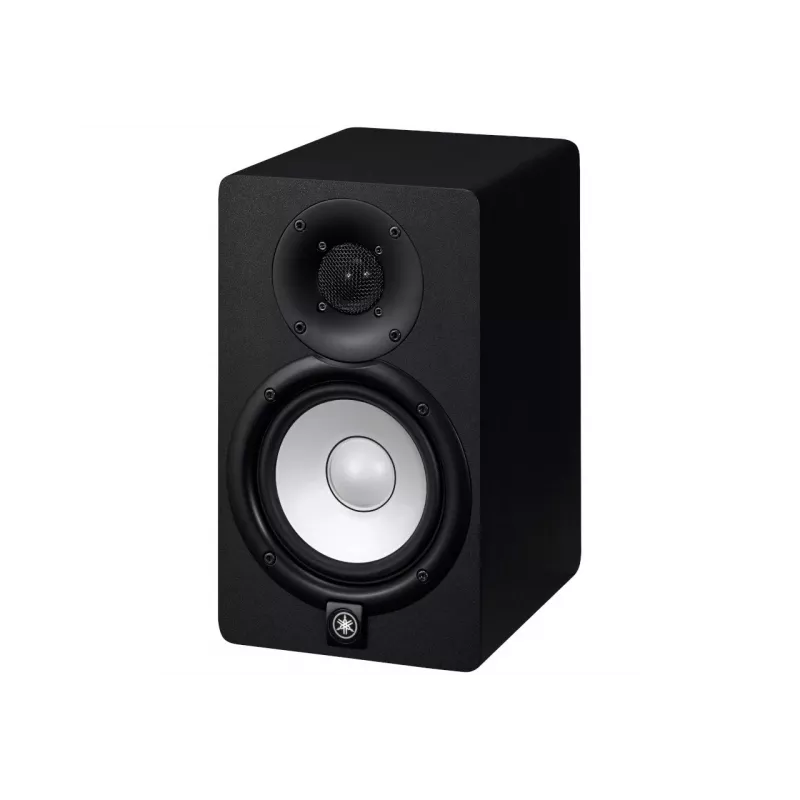

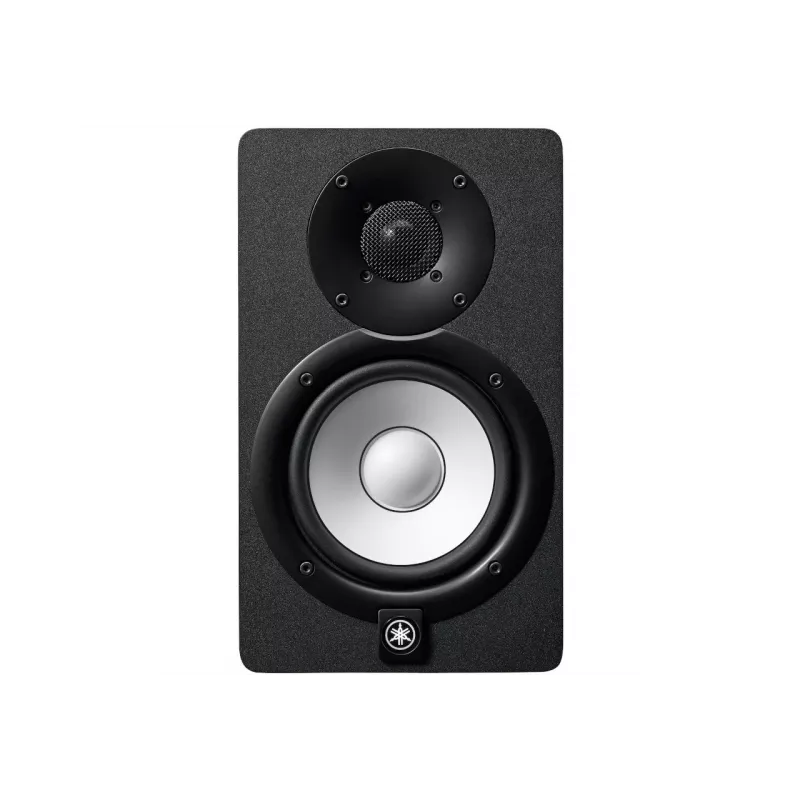

2-way loudspeaker YAMAHA HS5 — 5 inch woofer, 1 inch tweeter, 70 W RMS, 54–30000 Hz, wired, XLR input, MDF cabinet

Active 2-way loudspeaker YAMAHA HS5 with a 5" woofer and 1" tweeter offering 70 W RMS output and a frequency response of 54–30000 Hz. The loudspeaker features a bass-reflex MDF cabinet in black, wired connectivity with an XLR input, bi-amping capability and a built-in equalizer. Compact and relatively lightweight, it is designed for floor placement and provides a plug-and-play setup for universal indoor use.

Advantages

The YAMAHA HS5 combines accurate nearfield monitoring with a compact MDF bass-reflex enclosure, delivering a neutral frequency response from low to high range. With 70 W RMS power and XLR wired connectivity, it supports professional audio chains and bi-amping for improved driver control. Built-in equalization and plug-and-play operation simplify setup while the robust construction and floor placement option suit studio and home environments.

Suitable for

• Studio nearfield monitoring
• Home recording and mixing
• Multimedia production and content creation
• General indoor sound reinforcement

Key specifications

• Design: Active 2-way loudspeaker with woofer and tweeter
• Woofer: 5" (12.7 cm)
• Tweeter: 1" (2.54 cm)
• Frequency range: 54–30000 Hz
• RMS power: 70 W
• Crossover frequency: 2000 Hz
• Cabinet material: MDF, bass-reflex
• Connectivity: Wired, XLR input
• Bi-amping: Supported
• Built-in equalizer: Yes
• Placement: Floor
• Colour: Black
• Weight: 5.3 kg
• Dimensions (W×D×H): 170 × 222 × 285 mm

How to use

Place the loudspeaker on a stable floor surface or an appropriate speaker stand at ear level for nearfield monitoring. Connect the audio source or interface using the wired XLR input, set the desired EQ and crossover settings if required, and power the unit. For bi-amping, use separate amplifier channels according to the manufacturer's wiring recommendations. Allow a short warm-up period for the drivers to reach stable performance before critical listening or mixing.

Recommendations

For accurate monitoring, position the HS5 as part of a stereo pair at equal distance from the listening position and away from reflective surfaces. Use the built-in equalizer sparingly and calibrate levels to avoid clipping; the speaker is intended for indoor use and should not be exposed to outdoor elements.
