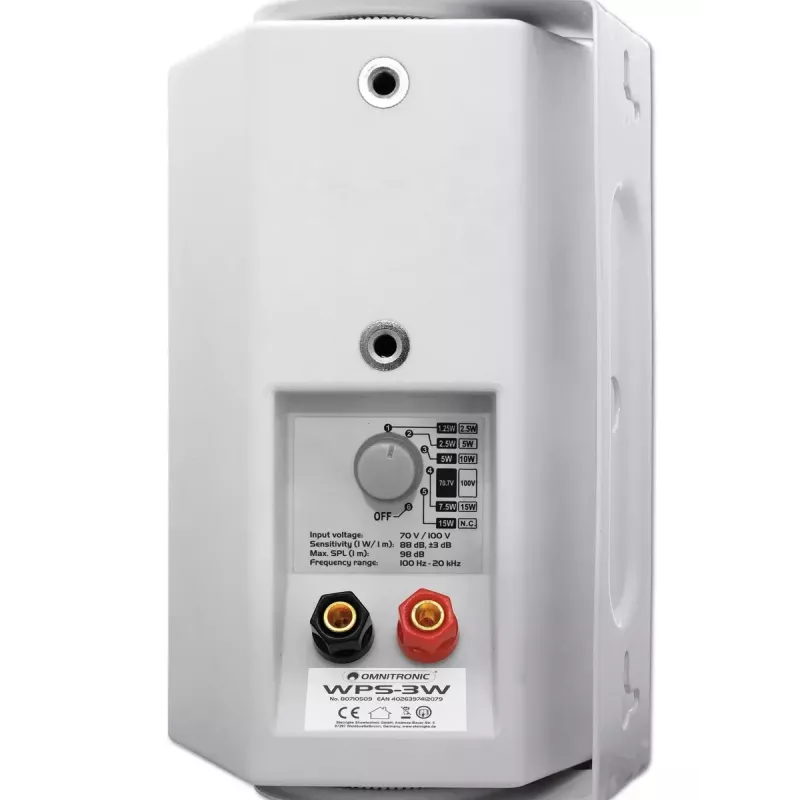

2-way loudspeaker Omnitronic 80710509 White Wired 15 W

The Omnitronic 80710509 is a compact 2-way wired loudspeaker with a rated power of 15 W, designed for clear reproduction of music and speech. Its white ABS enclosure, metal safety grille and pivoting mounting bracket allow discreet installation in a variety of public and private spaces. The speaker covers a frequency range from 100 to 20,000 Hz with a sensitivity of 88 dB.

Advantages

The WPS-series construction used in this model combines a trapezoid cabinet that facilitates corner mounting, a multi-step potentiometer for level adjustment and rugged materials such as ABS plastic and a metal guard for long-term reliability. The pivotable bracket provides flexible aiming while the wired connection ensures stable signal transmission.

Suitable for

Key specifications

How to use

Mount the speaker using the included pivoting bracket on a wall or in a corner, aligning the trapezoid cabinet for the desired coverage angle. Connect the loudspeaker to a compatible amplifier or mixer via the wired input, set the multi-step potentiometer to the required level and check sound for even coverage. Adjust aim and level as needed to achieve intelligible speech or balanced background music.

Recommendations

For optimal performance, use the Omnitronic 80710509 with a suitable amplifier that matches the 15 W power rating and maintain a clear line of sight between speaker and listening area; avoid placing the speaker directly against highly reflective surfaces to reduce tonal imbalance.
