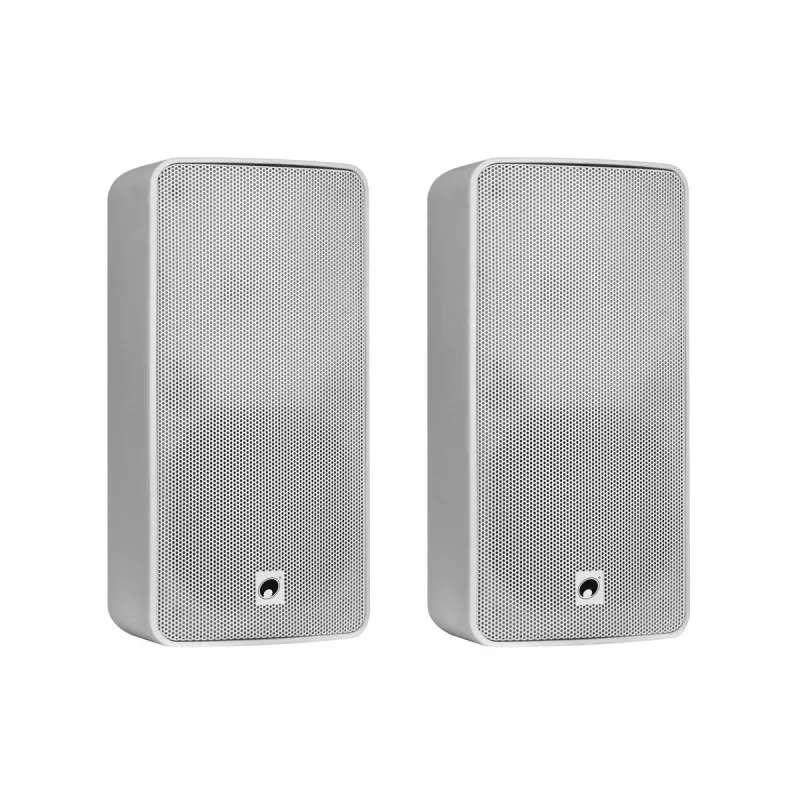

2-way Loudspeaker Omnitronic 11036957 White Wired 160 W

The Omnitronic 11036957 is a 2-way wired loudspeaker designed for reliable, balanced sound in bars, restaurants, shops and hotel conference areas. It delivers clear audio with an RMS power of 160 W and covers a frequency range from 60 to 18,000 Hz. The speaker is available in a low-impedance version (16 Ω) and a 100 V version for larger installations, and comes in a white, weatherproof plastic cabinet with IP54 protection.

Advantages

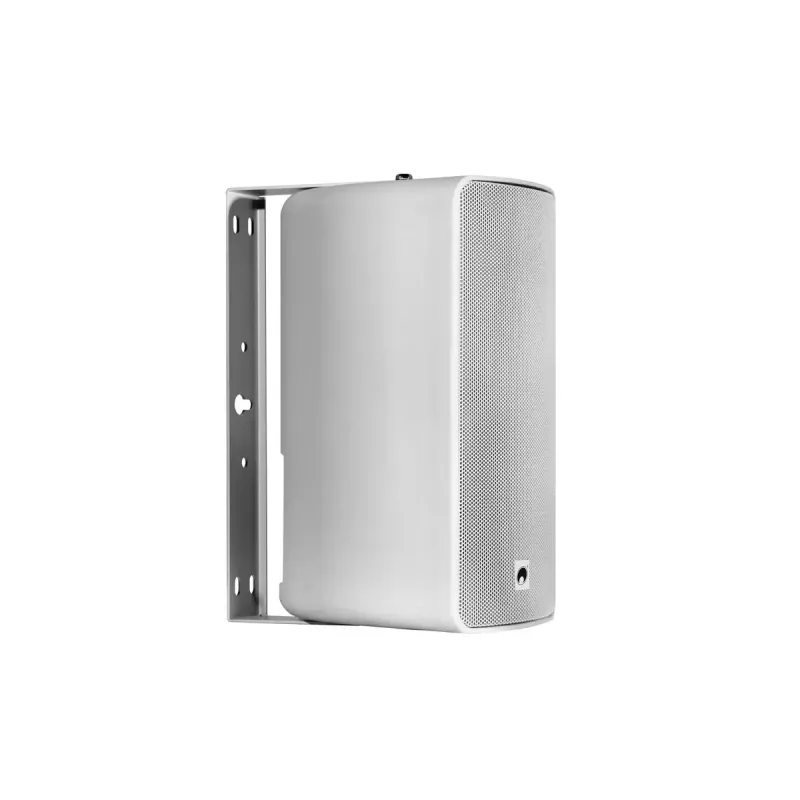

The loudspeaker provides a wide frequency response and 89 dB sensitivity for efficient sound reproduction. It supports both 16 Ω systems and 100 V line systems, making it suitable for small and large installations. The housing is weatherproof (IP54), allowing for both indoor and outdoor placement. A rotatable mounting bracket is included, and an optional swivel wall mount in matching colors is available.

Suitable for

Key specifications

How to use

Connect the speaker to a compatible amplifier or 100 V line system depending on the installation type. Use the included rotatable mounting bracket to position the speaker for optimal coverage; adjust the angle to direct sound toward the listening area. For outdoor installations, mount under a covered area when possible and ensure cables and connections are protected against moisture.

Recommendations

For best results, match amplifier power output to the speaker’s RMS rating and use appropriate attenuation or tapping when connecting to 100 V lines. Regularly inspect mounts and cable terminations when installed outdoors to maintain performance and safety.
