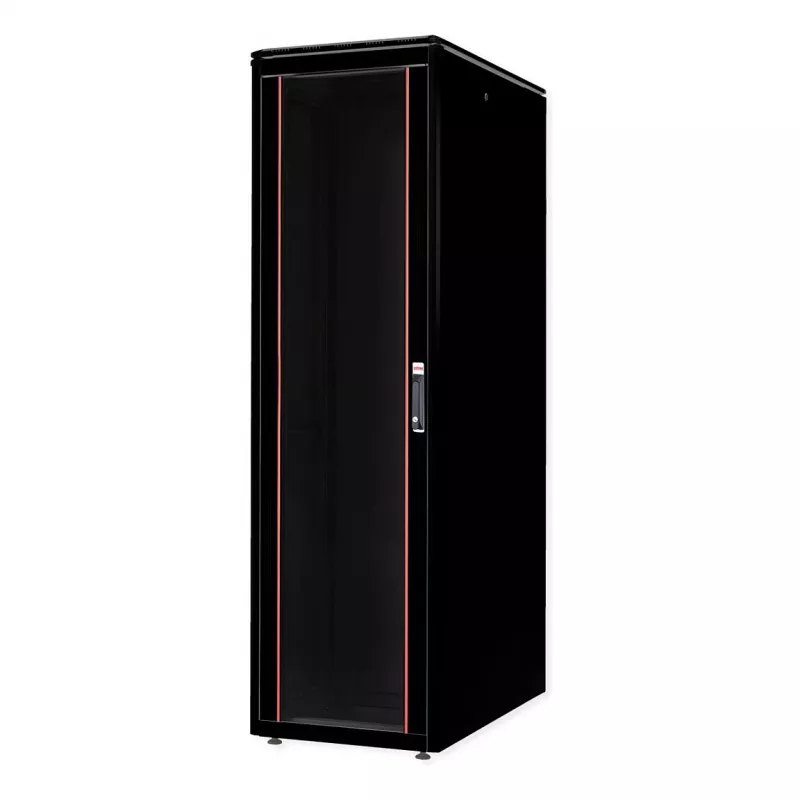

19-inch Network Cabinet ROLINE Pro 47U 600x1000 mm WxD freestanding rack, glass door, black, IP20, 600 kg

ROLINE Pro 19-inch network cabinet, 47U, freestanding rack with external dimensions of 600 x 1000 mm (W x D) and a rated load capacity up to 600 kg. Constructed from robust steel with sheet thickness up to 1.5 mm and electrostatic powder coating in black (RAL 9005). The cabinet includes two pairs of galvanised adjustable 19" profile rails that can be read in both directions, a glass front door for equipment visibility, removable rear door and side panels for quick access, and adjustable feet for level placement. Designed for server, network and telecom equipment installation in data centres, server rooms and network closets. The enclosure provides IP20 protection.

Advantages

The cabinet combines a high 47U equipment capacity with a compact footprint (600 x 1000 mm), supporting heavy installations up to 600 kg. Removable doors and side panels allow straightforward access for maintenance and cabling. Galvanised, depth-adjustable profile rails provide flexible mounting for servers, switches and patch panels, while the glass front door enables visual monitoring of installed equipment without opening the cabinet. A stepped removable top cover with ventilation slots improves passive airflow and allows installation of fan modules if active cooling is required.

Suitable for

• Installation of rack servers, network switches and storage units in small to medium data centres
• Telecom and networking equipment in server rooms and network closets
• Patch panel and cable management for structured cabling systems
• Laboratory, AV racks and technical rooms requiring visible front access

Key specifications

• Rack size: 19-inch, 47U usable rack units
• External dimensions (W x D): 600 x 1000 mm
• Rated load capacity: up to 600 kg
• Material: steel construction with up to 1.5 mm sheet thickness
• Finish: electrostatic powder coating, black (RAL 9005)
• Protection rating: IP20
• Front door: tempered glass, lockable
• Rear door and side panels: removable for maintenance
• Rails: two pairs of galvanised 19" profile rails, depth-adjustable and reversible
• Cable management: brush inlets and slide-on base inlet with foam seal (features available depending on configuration)
• Top cover: stepped removable cover with ventilation slots for improved airflow and fan module installation
• Adjustable feet for leveling

How to use

Position the freestanding cabinet on a level surface and adjust the feet to ensure stability. Remove the side panels and doors as required to install equipment on the 19" profile rails, adjusting rail depth to accommodate different server depths. Route power and network cabling through the provided brush inlets, base inlet or vertical cable ducts where available, and secure cables to maintain clear airflow paths. Reinstall doors and panels after equipment and cabling are complete. If additional cooling is required, fit fan modules into the removable top cover ventilation area and follow recommended mounting guidelines for the chosen fans.

Recommendations

Verify rack unit requirements and weight distribution before mounting heavy equipment. Maintain clear airflow by organizing cabling and leaving space for ventilation; consider installing fan modules for higher-density or heat-generating installations. Use appropriate grounding and follow local safety standards when connecting power and earthing the cabinet.
