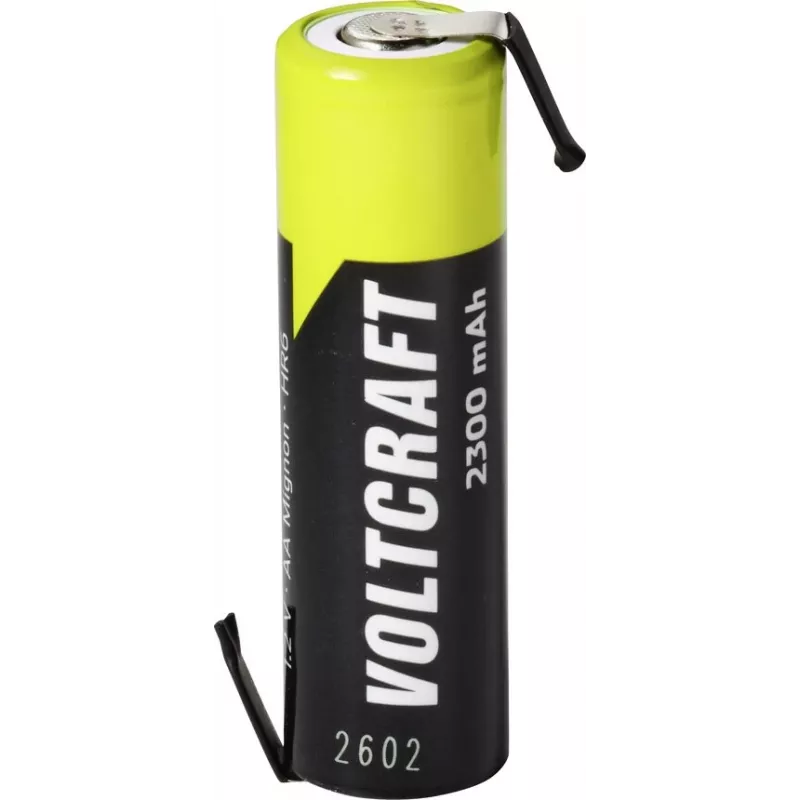

VOLTCRAFT AA Rechargeable Battery NiMH 1.2 V 2300 mAh with Z-Solder Tabs, High-Current, Ready to Use, 1 Pack VC-17666050

Industrial-grade AA (Mignon) rechargeable battery cell with Z-solder tabs, engineered for high-current applications and custom battery pack assembly. This NiMH cell delivers 2300 mAh capacity at 1.2 V nominal voltage, with low self-discharge technology that retains 85% charge after one year, so it's ready to use straight from the pack.

Advantages

High-current capability makes it suitable for demanding devices and power tools. Z-solder tabs allow easy soldering into custom battery configurations. Low self-discharge (LSD) ensures long shelf life and minimal capacity loss when not in use. Pre-charged and ready to use, no initial charging required. Up to 1000 recharge cycles for long-term cost savings. Wide operating temperature range from -20 to +50 °C for reliable performance in various environments.

Suitable for

• Industrial applications and OEM battery pack assembly
• DIY electronics projects and custom battery builds
• High-drain devices such as flashlights, motorized tools, and medical equipment
• Replacement for non-rechargeable AA batteries in high-cycle devices

Key specifications

• Battery size: AA (Mignon)
• Chemistry: Nickel-Metal Hydride (NiMH)
• Nominal voltage: 1.2 V
• Capacity: 2300 mAh
• Energy content: 2.76 Wh
• Terminal type: Z-solder tabs
• IEC designation: HR6
• Number of cells: 1
• Max. recharge cycles: up to 1000
• Operating temperature: -20 to +50 °C
• Self-discharge: retains approx. 85% charge after 1 year
• Packaging unit: 1 piece

Recommendations

For optimal performance and longevity, use a compatible NiMH charger and avoid over-discharging. When soldering to the tabs, apply heat quickly and avoid excessive temperature to prevent damage to the cell.
