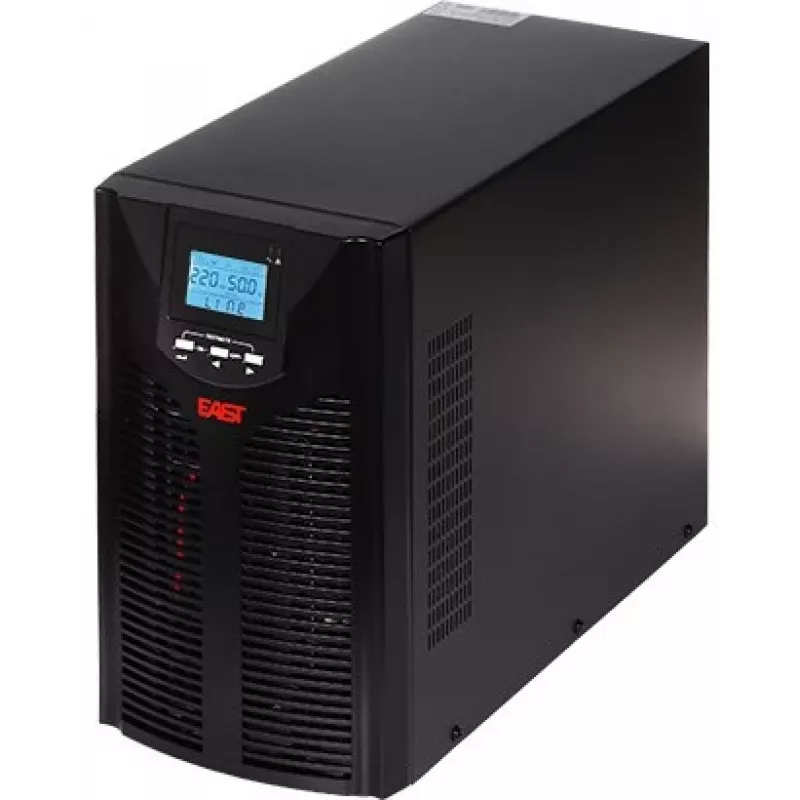

UPS Power Supply AT-UPS3000/3-LCD 3000 VA Line-Interactive 2400 W

The AT-UPS3000/3-LCD is a high-performance line-interactive UPS designed to provide reliable power protection for servers, network equipment, and critical devices. With a capacity of 3000 VA / 2400 W, it ensures stable operation during power fluctuations and outages. The LCD display offers real-time status monitoring, while multiple output sockets and communication ports enable flexible integration.

Advantages

Line-interactive topology with automatic voltage regulation (AVR) corrects minor power fluctuations without switching to battery, extending battery life. Simulated sine wave output ensures compatibility with a wide range of devices. Fast transfer time (2-6 ms) protects sensitive electronics. Maintenance-free sealed lead-acid batteries provide reliable backup power.

Suitable for

• Servers and data centers
• Network switches and routers
• Telecommunications equipment
• Medical devices and industrial controls

Key specifications

• Capacity: 3000 VA / 2400 W
• Topology: Line-Interactive
• Output Waveform: Simulated Sine Wave
• Input Voltage: 162-290 VAC
• Output Voltage: 230 VAC ±10% (AC mode), 230 VAC ±5% (battery mode)
• Frequency: 50/60 Hz auto-sensing
• Transfer Time: 2-6 ms typical
• Battery: 4 x 12V / 9Ah Sealed Lead Acid
• Recharge Time: 4-6 hours to 90%
• Output Sockets: 4 x IEC C13, 2 x Schuko
• Display: LCD
• Communication: USB, RS232
• Noise Level: <45 dB
• Operating Temperature: 0-40°C
• Humidity: 0-90% RH non-condensing

Recommendations

For optimal performance, connect critical loads only and avoid overloading. Place in a well-ventilated area. Regularly test battery function. This UPS is ideal for protecting sensitive electronic equipment in small to medium business environments.
