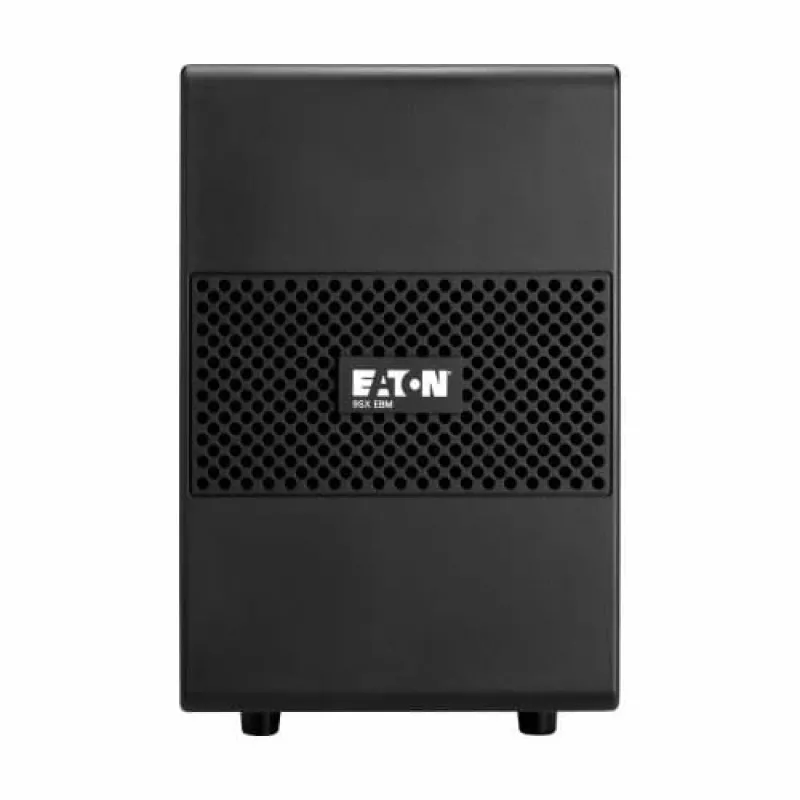

UPS battery cabinet Tower Eaton 9SXEBM96T

The Eaton 9SXEBM96T UPS battery cabinet is a Tower-format external battery module designed to extend run time for compatible Eaton 9SX UPS models. Finished in black and built to house sealed lead acid (VRLA) batteries, this cabinet provides additional backup capacity for data center racks, server rooms, and critical IT equipment. Its compact footprint (214 mm W x 412 mm D x 346 mm H) and robust construction allow placement near the UPS unit for straightforward connection and integration.

Advantages

The external battery cabinet supports seamless runtime extension for Eaton 9SX2000I, 9SX3000I, 9SX3000IM, and 9SX3000INB UPS models without changing the core UPS configuration. Using Sealed Lead Acid (VRLA) battery technology with 12 V/9 Ah cells, the cabinet delivers stable, predictable discharge characteristics and simple maintenance compared with flooded battery types. The cabinet's tower design and black finish make it suitable for varied IT environments where space efficiency and visual consistency are important.

Suitable for

Key specifications

How to use

Install the Eaton 9SXEBM96T battery cabinet near the compatible Eaton 9SX UPS and connect according to the UPS installation guide and local electrical codes. Ensure the UPS is powered down or in a maintenance state as required by the manufacturer before making battery connections. Follow the UPS vendor instructions for cable routing, polarity, and any mounting or securing procedures. After connection, verify communication and runtime reporting in the UPS management interface to confirm the cabinet is recognized and delivering additional runtime.

Recommendations

Place the cabinet in a well-ventilated, temperature-controlled environment away from direct heat sources. Regularly inspect battery terminals and connections for corrosion and tightness, and schedule periodic runtime tests according to Eaton guidelines to validate expected backup durations.
