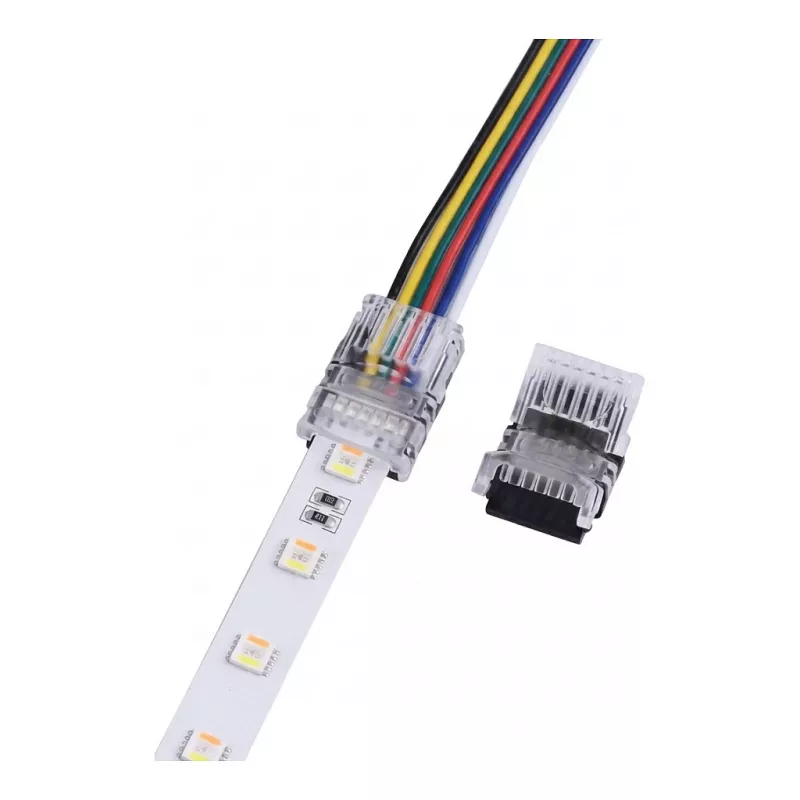

SYNERGY21 LED FLEX Strip Easy Connect Strip to Wire 12mm RGB-CCT (RGB-WW) Connector

The SYNERGY21 LED FLEX Strip Easy Connect Strip to Wire 12mm RGB-CCT (RGB-WW) is a solderless, clamp-on connector designed for quick and reliable connections between LED strips and wires. Ideal for RGB-CCT (RGB + Tunable White) strips, this 5-pin connector supports 12V/24V DC systems and is compatible with 12mm wide strips. Its tool-free installation and flame-retardant materials make it a safe and convenient choice for indoor lighting projects.

Advantages

Tool-free, quick connect design saves installation time. Solderless clamp-on mechanism ensures secure connections without heat damage. Compatible with both 12V and 24V systems for versatile use. Flame-retardant PC plastic and copper conductors provide durability and safety.

Suitable for

• RGB-CCT LED strip installations requiring strip-to-wire connections
• Indoor lighting projects where solderless connections are preferred
• 12mm wide LED strips with 5-pin configuration

Key specifications

• Connector Style: Strip to Wire
• Connection Method: Solderless, Clamp-on
• Compatible Strip Width: 12 mm
• Number of Pins: 5-Pin
• Voltage Compatibility: 12V / 24V DC
• Current Rating: Max. 5A (Total)
• Material: Flame-retardant PC Plastic, Copper Conductors
• Colour: White / Transparent
• IP Rating: IP20 (Indoor Use)
• Wire Gauge Compatibility: 20-22 AWG

Recommendations

For best results, ensure the LED strip is cut at a designated cut line and the connector is firmly pressed to achieve a secure electrical connection. Suitable for use with SYNERGY21 LED strips and other compatible 12mm RGB-CCT strips.
