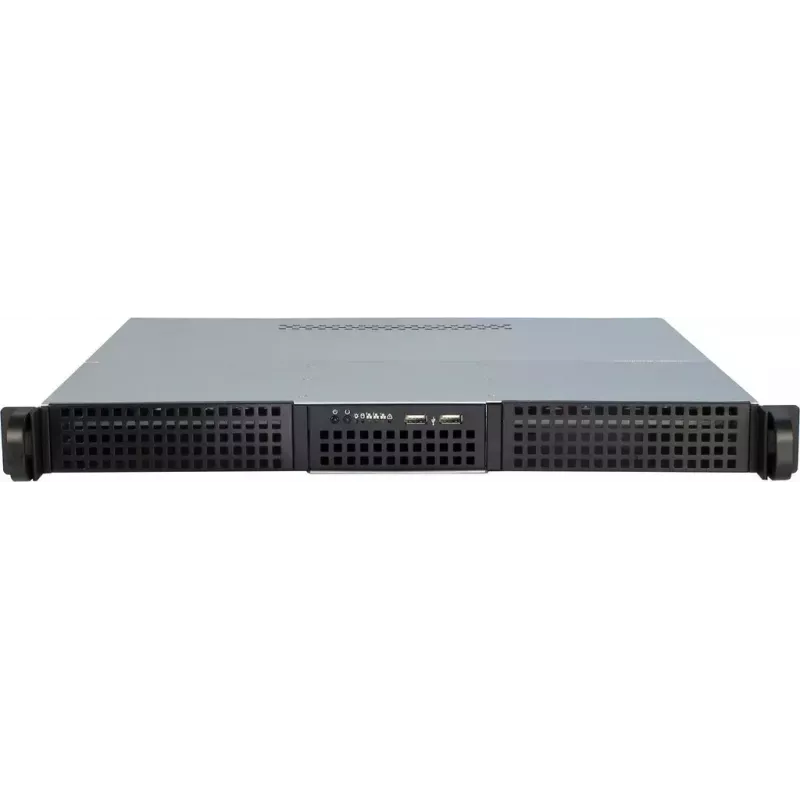

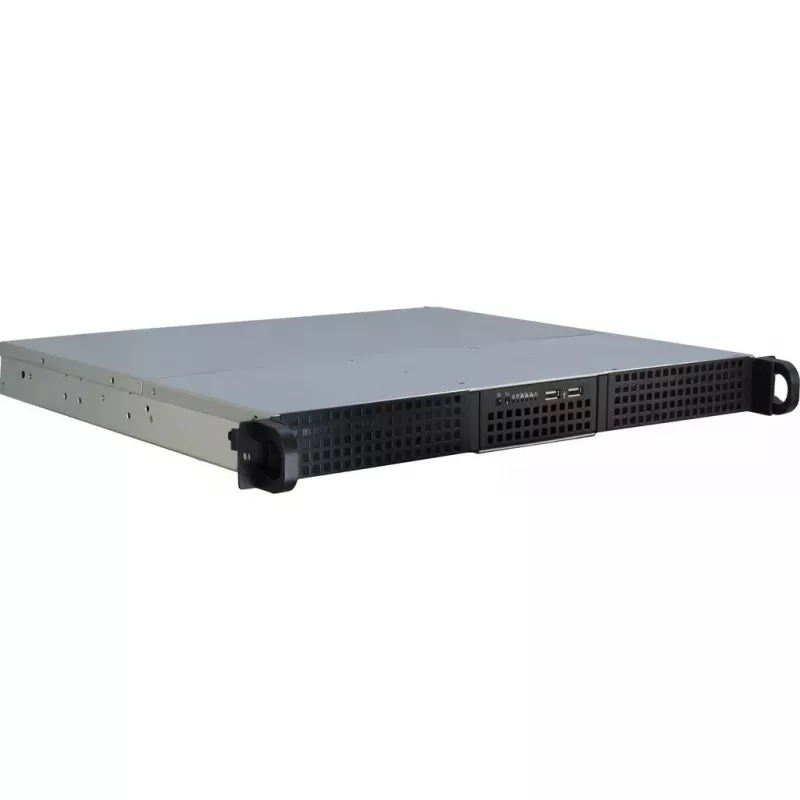

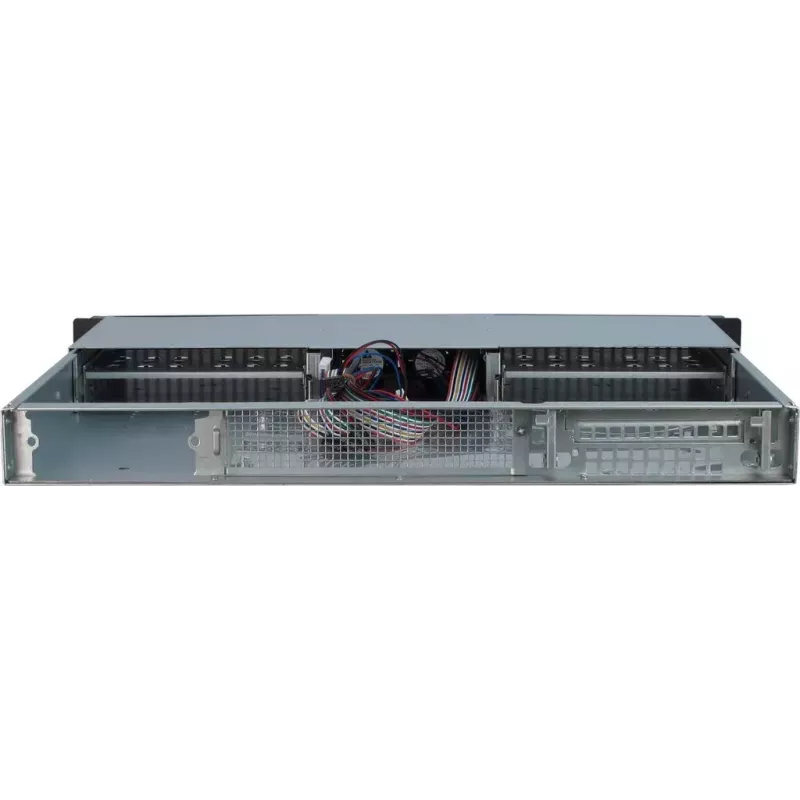

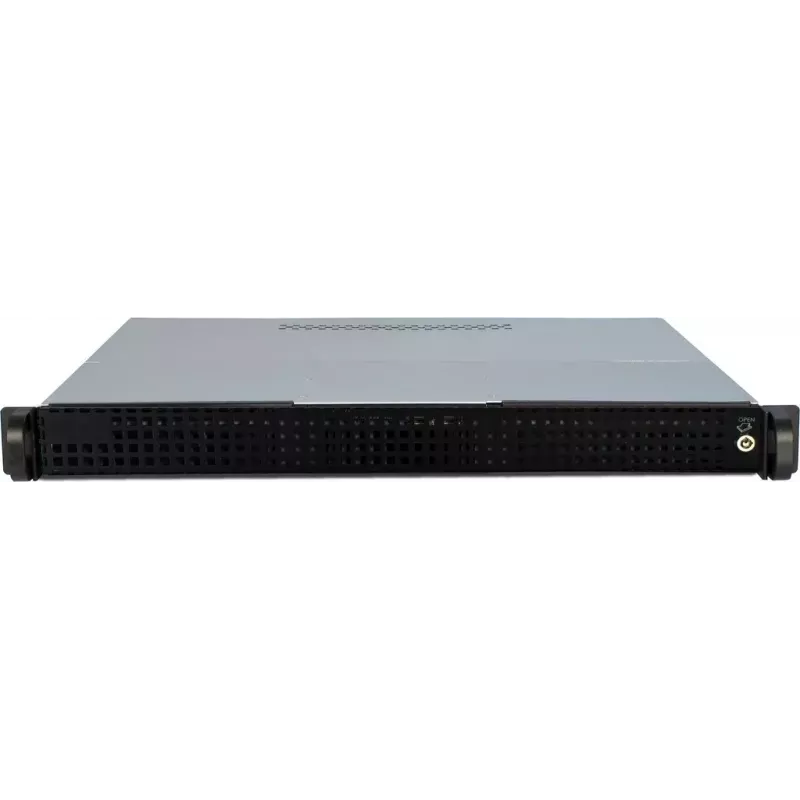

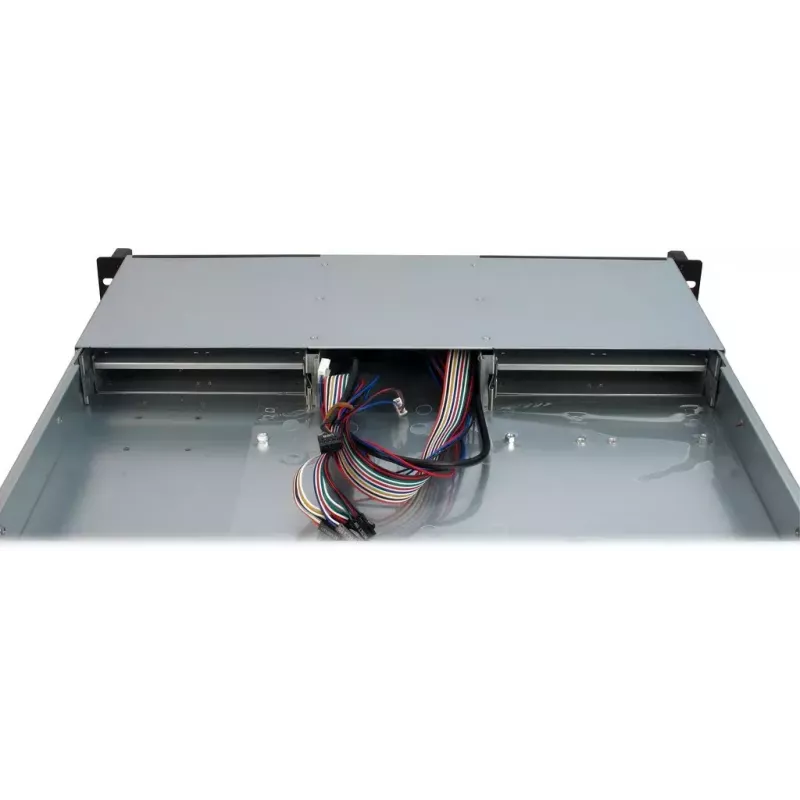

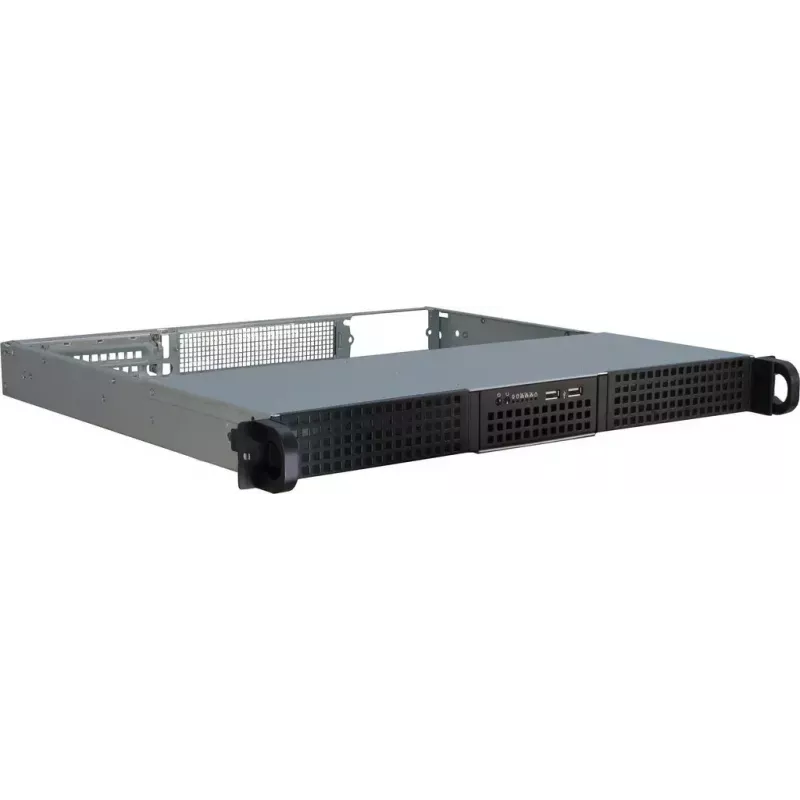

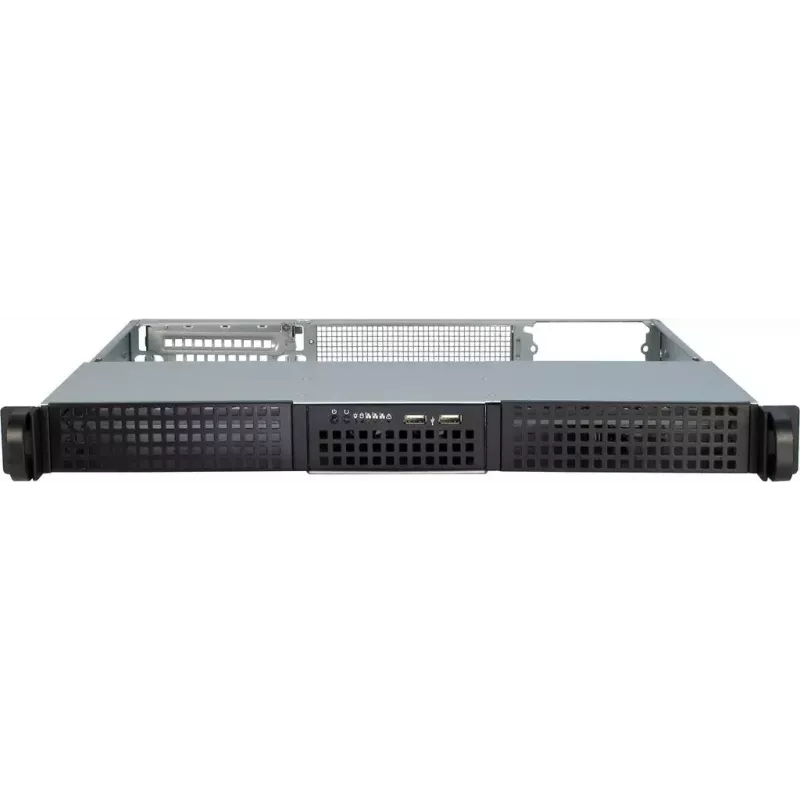

Server Case Inter-Tech 1U-10240 Rack Black

The Inter-Tech 1U-10240 Rack Black is a compact 1U server case designed for space-efficient rack installations. Constructed from steel with careful workmanship, it supports Flex-ATX and other small motherboard form factors while offering flexible internal drive mounting and basic front connectivity.

Advantages

This rack case combines a slim 1U height with robust steel construction and a variable internal layout that accepts up to eight 2.5" drives or two 3.5" drives. Two 40 mm fans are included for active cooling, and front-access connectors (USB 2.0 and USB 3.2 Gen 1 Type-A) plus a universal slot bracket provide convenient accessibility for peripherals and expansion. The compact dimensions (482 × 428 × 44.5 mm) make it suitable for standard 19" racks while keeping weight low.

Suitable for

• Low-cost rack-mounted server installations
• Network appliances, firewall or router systems
• Small NAS or storage servers using multiple 2.5" drives
• Compact workstations based on Mini-ITX, Flex-ATX or Micro-ATX

Key specifications

• Form factor: 1U rack
• Material: Steel
• Dimensions (W×D×H): 482 × 428 × 44.5 mm

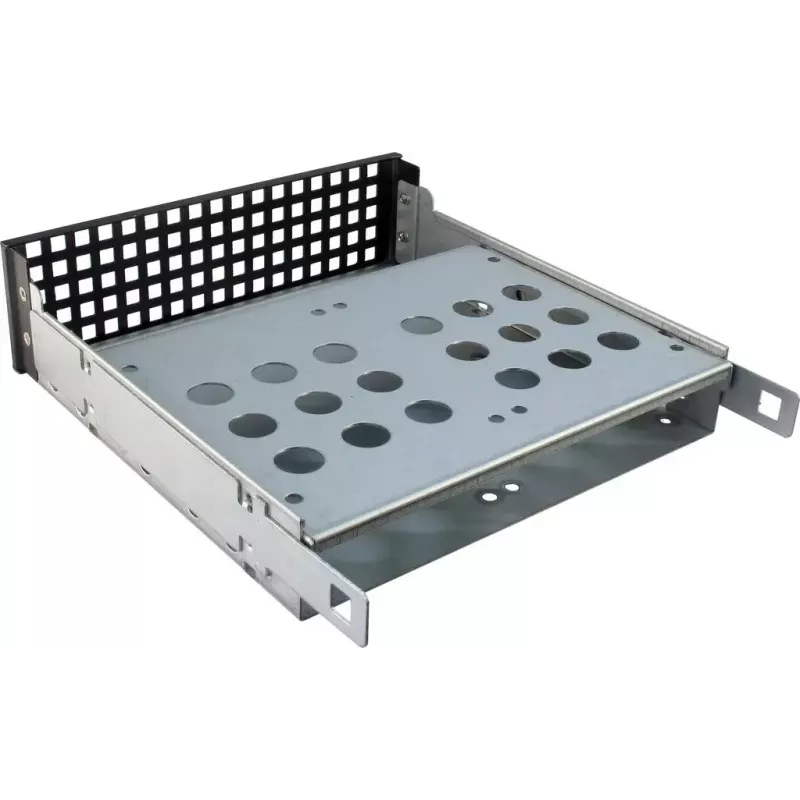

• Drive bays: up to 8 × 2.5" or 2 × 3.5"
• 5.25" bays: 2
• Supported motherboards: ATX, Flex-ATX, Micro ATX, Mini-ATX, Mini-ITX
• Fans: 2 × 40 mm
• Front ports: 1 × USB 2.0, 1 × USB 3.2 Gen 1 (Type-A)
• Power supply: not included (supports Flex-ATX)
• Color: Black
• Weight: 5 kg

How to use

Install the Inter-Tech 1U-10240 into a standard 19" rack and fit a compatible Flex-ATX or other supported power supply (not included). Mount the chosen motherboard and secure drives in the available 2.5" or 3.5" bays according to your storage needs. Connect the two 40 mm fans to the motherboard or fan controller for adequate airflow. Use the front USB 2.0 and USB 3.2 Gen 1 ports for easy external device connection and the universal slot bracket for additional expansion cards if required.

Recommendations

For reliable operation, ensure the selected power supply matches the system power requirements and allow airflow by not blocking front and rear ventilation. Use 2.5" drives for higher bay density and choose 3.5" drives only when larger capacity per drive is required.
