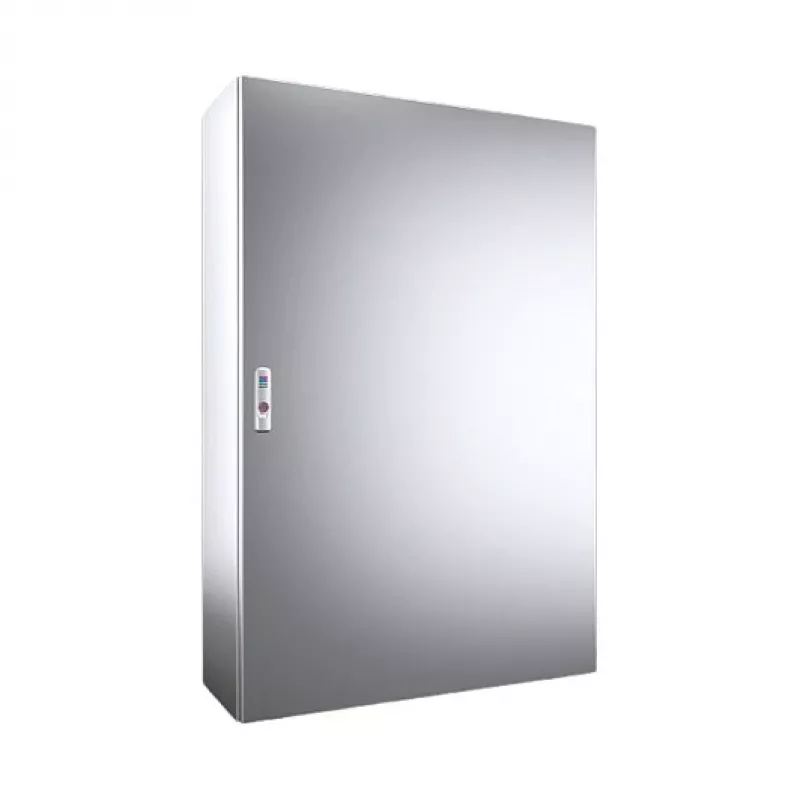

Rittal AX Compact Enclosure, 1-Door, 800x1200x300 mm, RAL 7035, IP66

In industrial settings where control electronics need dependable protection, the Rittal AX Compact Enclosure offers a robust solution. This 1-door cabinet, sized 800x1200x300 mm, is ideal for housing switchgear, controllers, and instrumentation in factories, workshops, or infrastructure projects. Its compact footprint fits neatly against walls or within production lines, while the rugged steel construction and IP66 rating safeguard sensitive components from dust, water jets, and mechanical impact.

Key specifications

• Series: AX – compact enclosure system
• Material: Sheet steel (body, door, and mounting plate)
• Surface finish: Dipcoat-primed, powder-coated, textured paint
• Colour: RAL 7035 (light grey)
• Protection rating: IP66 / NEMA 4
• Number of doors: 1

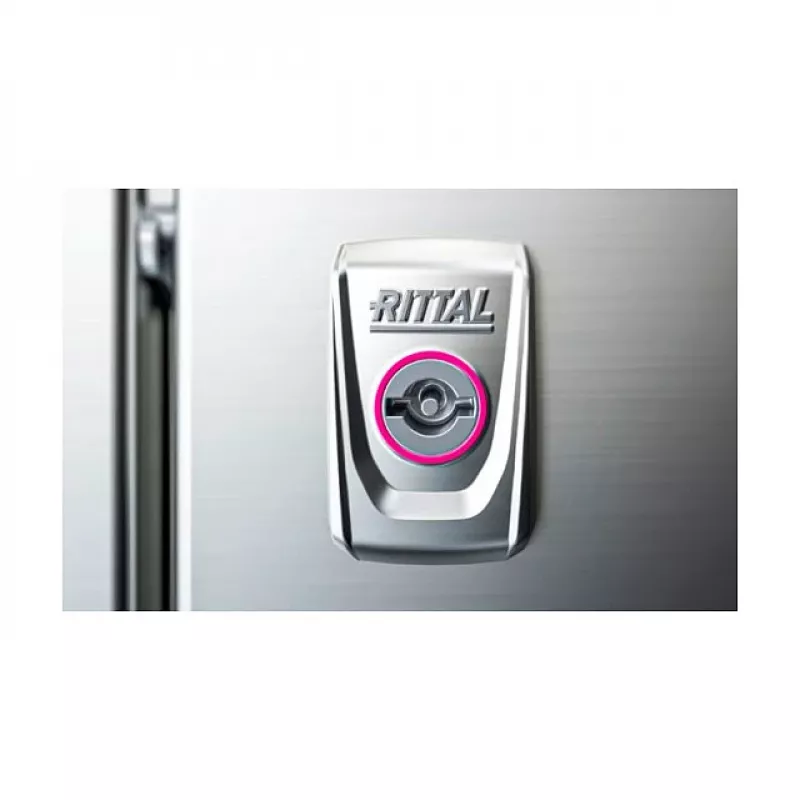

• Lock: 3 mm double-bit
• Mounting plate: Included, depth-adjustable
• Gland plate: Included (bottom)
• Door opening angle: 130°
• Hinge side: Right, reversible
• External dimensions: 800 x 1200 x 300 mm (W x H x D)
• Material thickness (door): 1.5 mm
• Approvals: UL, cUL, TÜV, Germanischer Lloyd, EAC, VDE

Why choose it

Rittal is a trusted name in industrial enclosures, and the AX series delivers proven reliability. The IP66 rating ensures protection against powerful water jets and dust ingress, making it suitable for demanding environments. The depth-adjustable mounting plate offers flexibility for component installation, while the reversible hinge allows the door to be configured for left or right opening. With a sturdy steel build and a textured powder-coated finish, this enclosure is built to last.

Ideal use cases

• Industrial automation and control panels
• Electrical distribution in workshops and factories
• Housing for measurement and instrumentation devices
• Infrastructure projects requiring robust protection

Good to know

The enclosure is supplied with a mounting plate and a gland plate for cable entry. The door lock uses a 3 mm double-bit key, and the door can be opened up to 130° for easy access. The RAL 7035 light grey finish provides a neutral appearance that blends with most environments. For installation, ensure adequate clearance for the door swing and cable routing.
