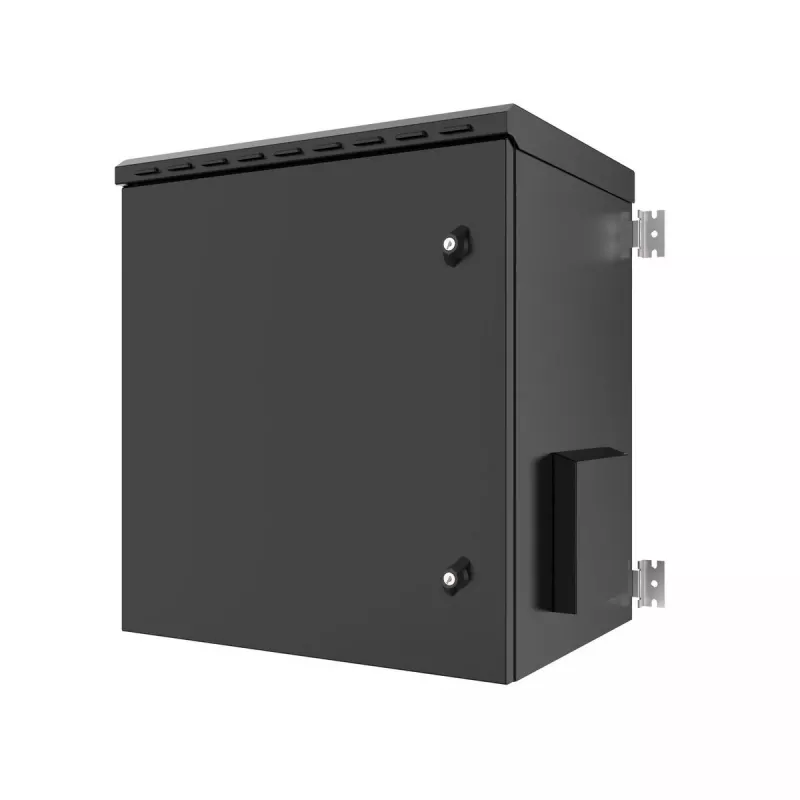

Rack cabinet Lanview RWMIP55W12U45B 12U Black IP55 32kg

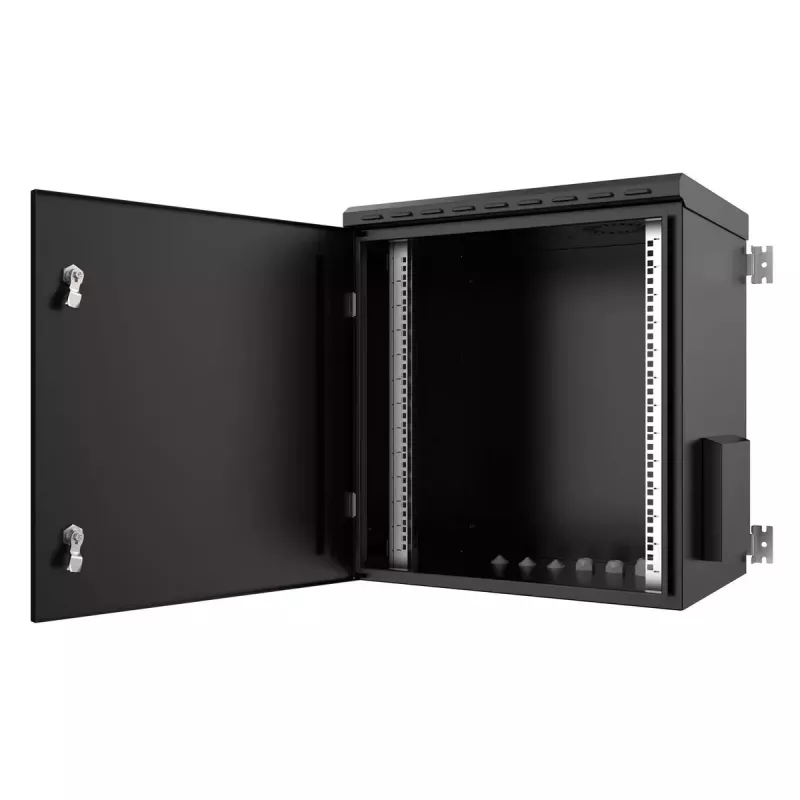

Dimensions: 600 x 450 x 630 mm. The Lanview RWMIP55W12U45B is a 12U, 19" rack cabinet with IP55 protection and a black finish. It supports mounting of 19" devices on uprights using two device mounting rails in 600×450 cabinets. The cabinet includes hinged top access for fan modules, lateral 125×125 dust filters for passive ventilation and roof louvers to expel hot air. Cable entry at the base offers one PG48 IP gland, two PG21 IP glands and three 28 mm PVC blind plugs; the bottom closure can be fully detached.

Advantages

The IP55-rated construction provides dust and water resistance suitable for many indoor environments. Two device mounting rails allow standard 19" equipment installation, while hinged top access simplifies maintenance of fan modules. Integrated dust filters and roof louvers enable passive airflow management. Multiple sealed cable glands and removable bottom closure facilitate secure and flexible cable routing.

Suitable for

• Small server rooms and network closets
• Office IT installations
• Telecommunications equipment housing
• Environments requiring dust- and splash-resistant enclosures

Key specifications

• Model: Lanview RWMIP55W12U45B
• IP rating: IP55
• Rack capacity: 12U, 19"
• Weight: 32 kg
• External dimensions (W×D×H): 600 × 450 × 630 mm
• Height (product attribute): 676 mm
• Colour: Black
• Cable entries: 1 × PG48 gland, 2 × PG21 glands, 3 × 28 mm PVC blind plugs
• Ventilation: 125×125 side dust filters, roof louvers

How to use

Install the cabinet on a stable, level surface and secure it as required by your site regulations. Mount 19" devices on the uprights using the two provided device mounting rails. Use the hinged top cover to access fan modules and the side dust filters for passive ventilation maintenance. Route cables through the base glands or remove the bottom closure when larger cable access is needed, then reseal unused openings with the provided blind plugs to maintain IP55 protection.

Recommendations

For best results, perform periodic cleaning of the 125×125 dust filters and check seals on cable glands and closures. Ensure internal equipment does not exceed the cabinet's intended load and verify airflow around roof louvers to prevent heat buildup.
