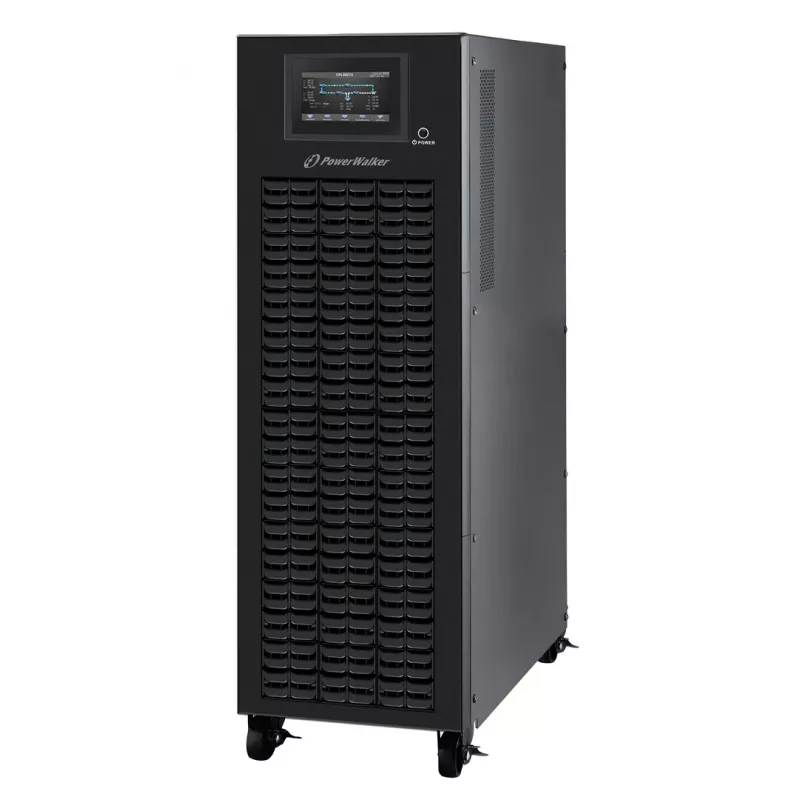

PowerWalker VFI 15K CPG PF1 3/3 BE - 15kVA Online Double-Conversion UPS, Tower, 3-Phase, Pure Sine Wave, LCD, USB/RS-232, SNMP Slot

Delivering a full 15kW of active power with unity output power factor, the PowerWalker VFI 15K CPG PF1 3/3 BE ensures your critical 3-phase loads never miss a beat. This online double-conversion UPS provides continuous, pure sine wave output with zero transfer time, making it the ultimate safeguard for data centres, industrial systems, and enterprise infrastructure.

Overview

Engineered for demanding environments, the VFI 15K CPG PF1 3/3 BE operates in tower form factor and accepts 3-phase input (400V AC nominal) with a wide voltage range of 304–478V AC. It delivers regulated 3-phase output at 400V AC ±1% in battery mode, with auto-sensing 50/60 Hz frequency. The internal sealed lead-acid battery bank (20x 12V/9Ah) provides reliable runtime during outages, while the high-efficiency online mode (up to 95%) reduces energy costs.

What stands out

• True online double-conversion topology (VFI) with zero transfer time to battery
• 15 kVA / 15 kW capacity with power factor 1.0 – no derating for modern IT loads
• 3-phase input and output with terminal block connections for hardwired installation
• Pure sine wave output for compatibility with sensitive equipment
• LCD display for real-time status and configuration
• Multiple communication ports: USB-B, RS-232, and intelligent slot for optional SNMP/relay card
• Tower form factor suitable for floor or shelf placement

Technical details

• Nominal input voltage: 400V AC (3-phase + N + G)
• Input voltage range: 304–478V AC (line-to-line)
• Nominal output voltage: 400V AC (3-phase + N + G)
• Output voltage regulation: ±1% (battery mode)
• Output frequency: 50/60 Hz (auto-sensing)
• Waveform: Pure sine wave
• Transfer time: 0 ms (online to battery)
• Efficiency (online mode): Up to 95%
• Battery type: Sealed lead-acid (VRLA), 20x 12V/9Ah internal
• Communication: USB-B, RS-232, intelligent slot (SNMP/relay card optional)
• Display: LCD
• Form factor: Tower

Our verdict

The PowerWalker VFI 15K CPG PF1 3/3 BE is a robust and efficient solution for protecting critical 3-phase infrastructure. Its unity power factor and zero transfer time make it an excellent choice for modern IT environments where reliability is paramount.
