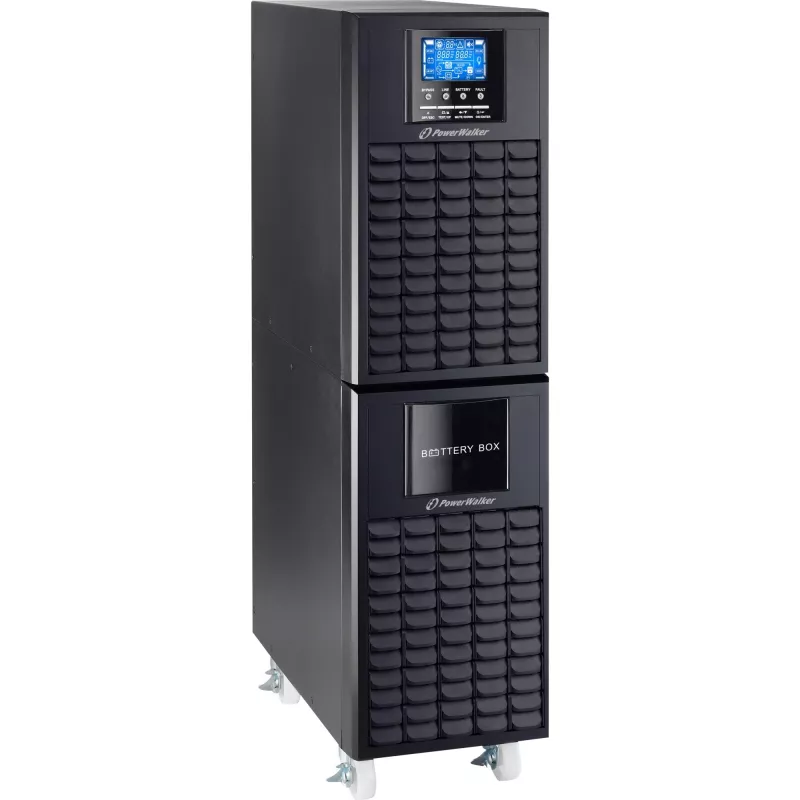

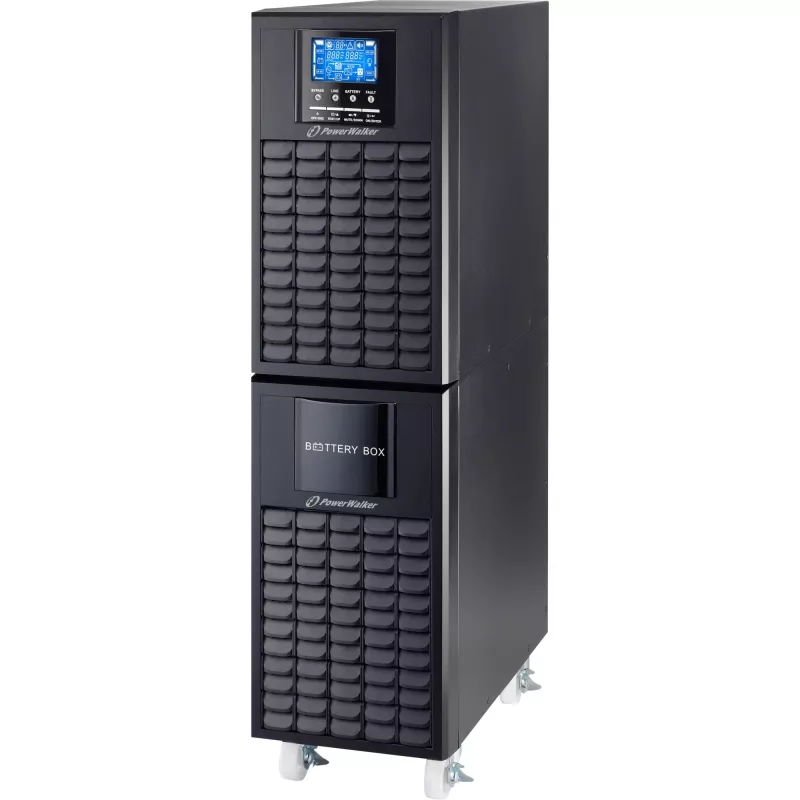

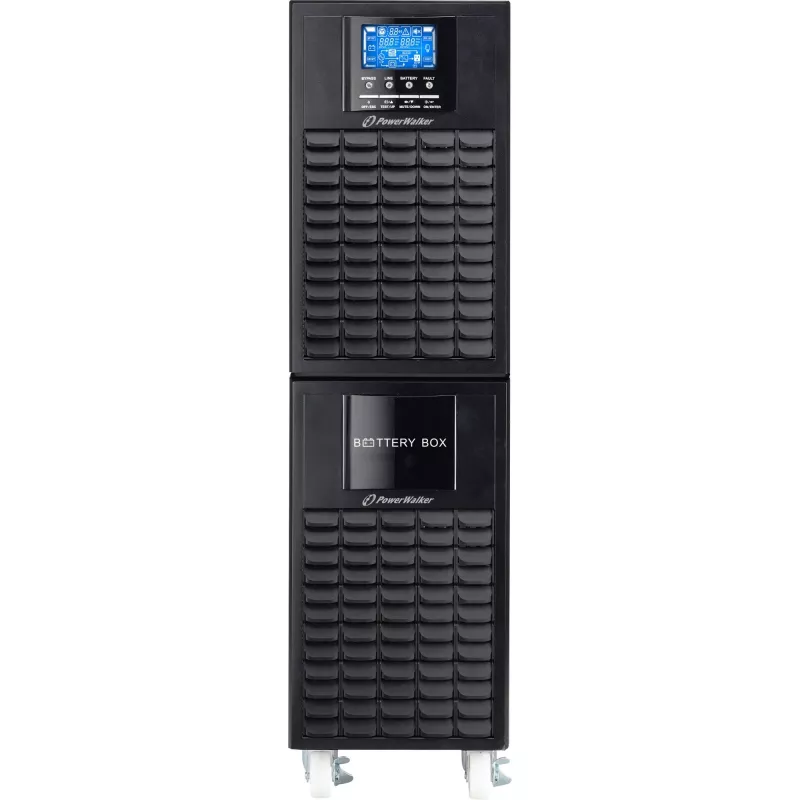

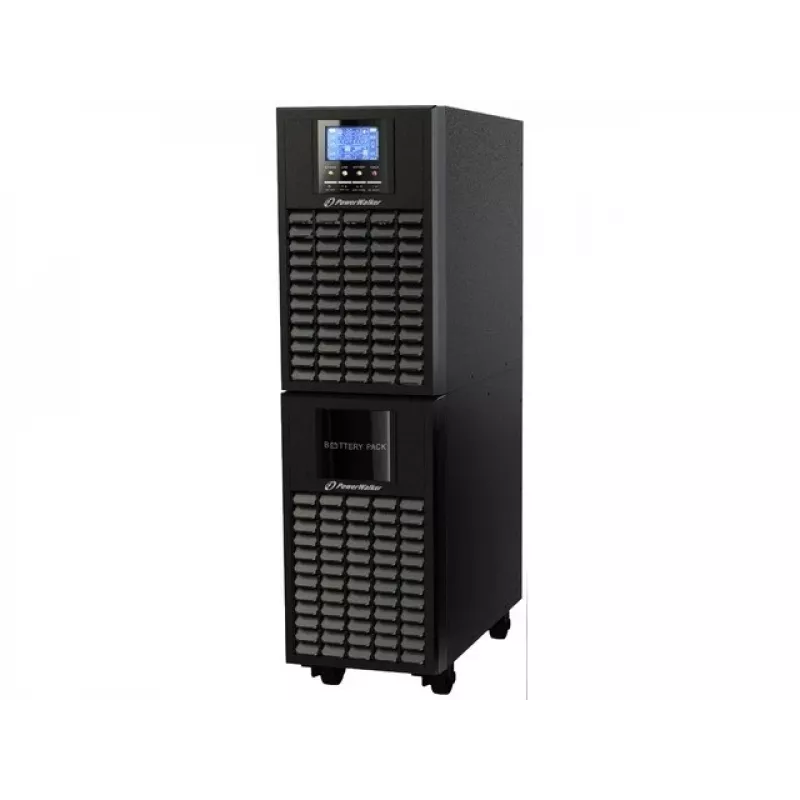

PowerWalker On-Line 10000VA UPS CG - Tower Double-Conversion UPS, 10kVA/10kW, External Batteries, Hardwired

The PowerWalker DS-UPS-VFI10000CG-PF1 is a robust online double-conversion UPS designed for mission-critical IT infrastructure, industrial applications, and sensitive medical equipment. Unlike standby or line-interactive units, this true online topology continuously regenerates clean, pure sine wave power, isolating connected loads from all mains disturbances. With a unity power factor of 1.0, it delivers full 10,000W from its 10,000VA rating, making it a powerful and efficient solution for high-density server racks, network closets, and industrial control systems.

Highlights

• True Online Double-Conversion Technology – zero transfer time, maximum protection
• 10,000VA / 10,000W capacity with unity power factor (1.0)
• Pure Sine Wave output with ±1% voltage regulation
• Wide input voltage range (110-300 VAC) for harsh environments

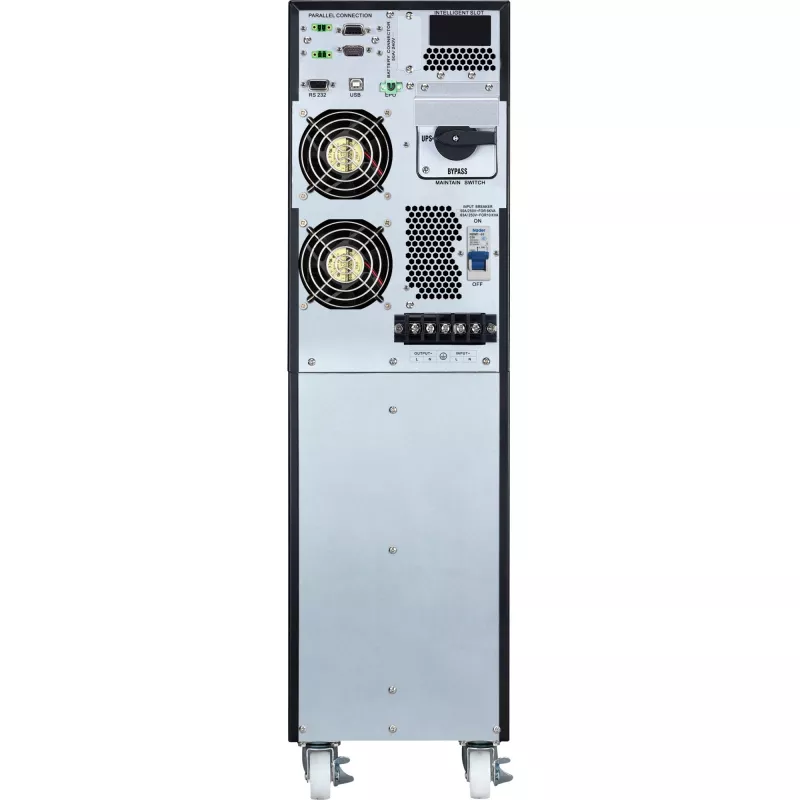

• Hardwired terminal block connections for secure, permanent installation
• External battery pack (EBP) support for extended runtime
• Automatic and manual bypass for maintenance without downtime
• USB, RS-232, and intelligent slot for SNMP/relay card
• Efficiency up to 94% – reduces operating costs
• Tower form factor, convertible to rackmount with optional kit

In daily use

This UPS is engineered for continuous operation in demanding environments. The online double-conversion design ensures that your equipment receives clean, stable power at all times, eliminating the risk of data corruption or hardware damage from power surges, sags, or frequency variations. The automatic bypass ensures seamless operation even during overload or internal fault conditions, while the manual bypass allows for safe servicing without interrupting the load. With the included PowerMaster management software, you can monitor and control the UPS remotely, schedule shutdowns, and receive alerts. The external battery capability allows you to scale runtime according to your needs, making it a flexible solution for both short and long power outages.

Full specifications

• UPS Technology: On-Line Double Conversion
• Capacity: 10000 VA / 10000 W
• Power Factor: 1.0
• Input Voltage: 208V / 220V / 230V / 240V AC (nominal)
• Input Voltage Range: 110-300 VAC (load dependent)
• Output Voltage: 208V / 220V / 230V / 240V AC (selectable)
• Output Voltage Regulation: ±1%
• Output Waveform: Pure Sine Wave
• Input Connection: Terminal Block (Hardwired)
• Output Connection: Terminal Block (Hardwired)
• Battery Type: External Battery Pack (EBP) required
• Recharge Time: 9 hours to 90% (for EBP)
• Communication Ports: USB, RS-232, Intelligent Slot
• Efficiency (AC-AC): Up to 94%
• Bypass: Automatic and Manual
• Form Factor: Tower (convertible with optional kit)
• Noise Level: <55 dB
• Management Software: PowerMaster
• Protection: Overload, Short Circuit, Over-temperature, Battery Low

Final note

This PowerWalker UPS is a professional-grade power protection solution, ideal for businesses that cannot afford downtime. Its online double-conversion topology, high efficiency, and scalability make it a wise investment for safeguarding critical systems. Please note that external battery packs are required for operation and are sold separately.
