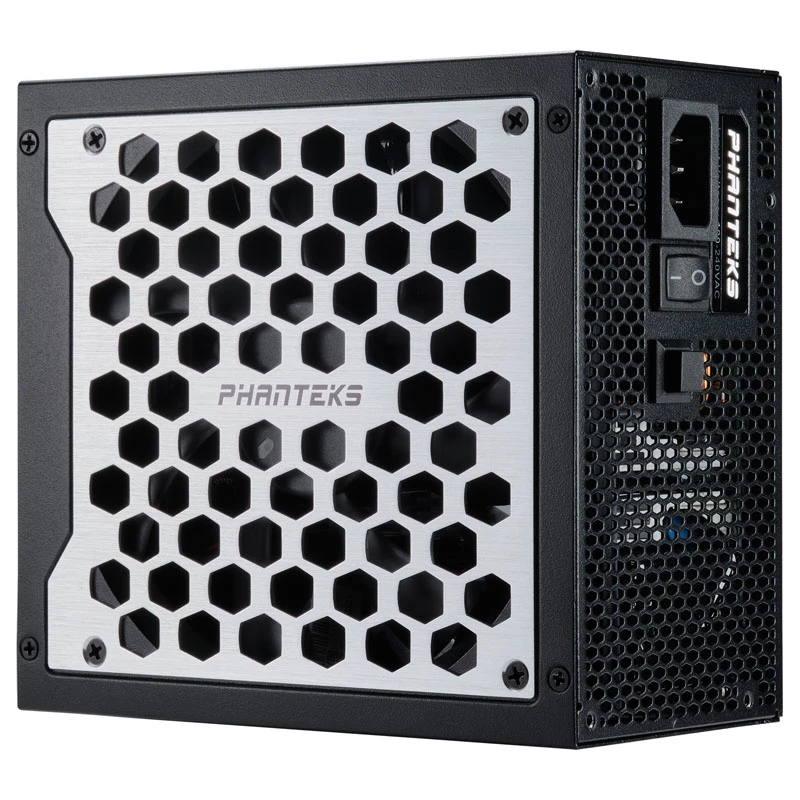

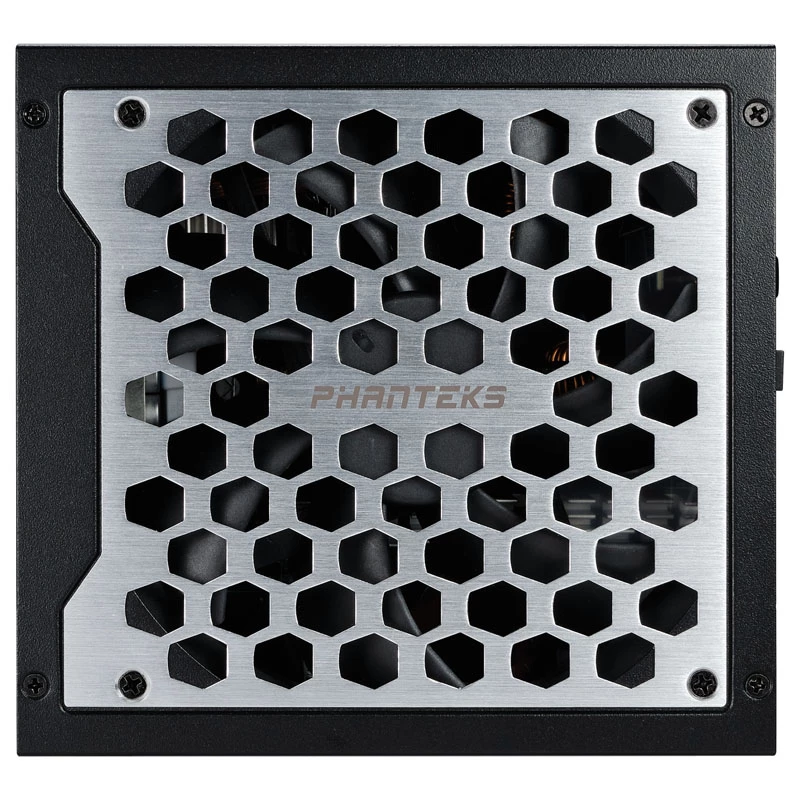

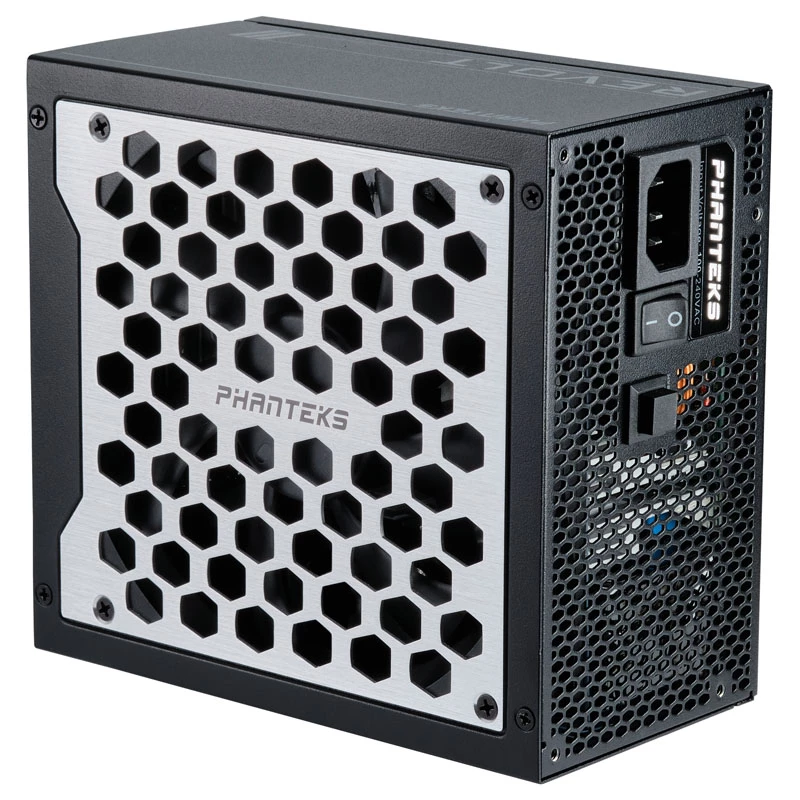

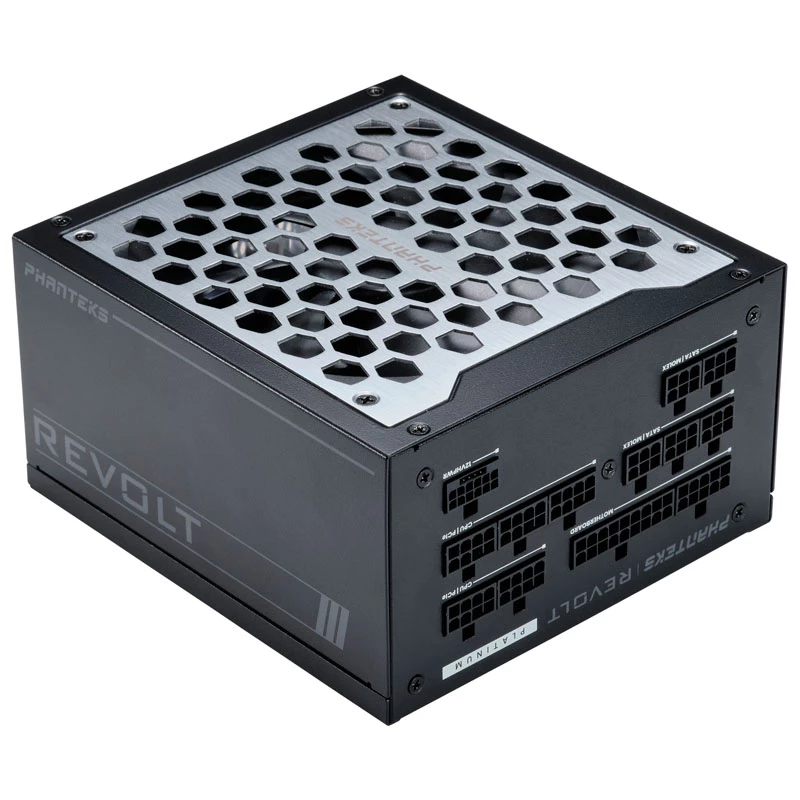

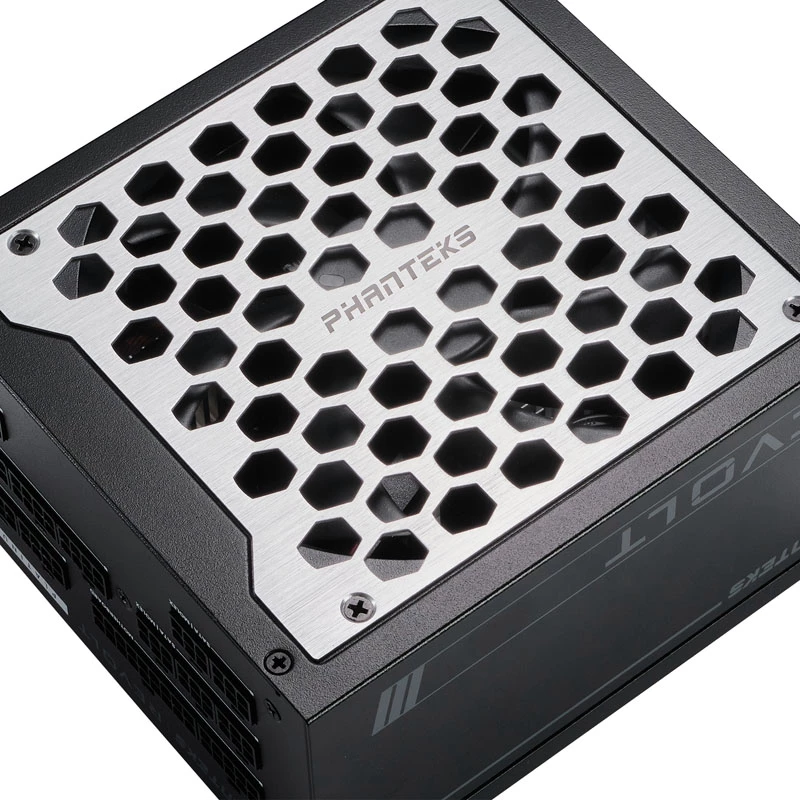

Power Supply Unit Phanteks Revolt 1200 W

The Phanteks Revolt 1200 W is a fully modular ATX power supply designed for PC systems that require high, reliable power delivery. It provides 1200 W total output with an AC input range of 100–240 V at 50/60 Hz and carries an 80 PLUS Platinum efficiency certification. Developed in collaboration with Seasonic, the Revolt series focuses on performance, reliability and compatibility with custom sleeved cables from CableMod, allowing users to install only the cables they need.

Advantages

The Revolt 1200 W offers a fully modular cabling system for simple installation and improved cable management. It meets and exceeds Intel ATX 3.0 requirements and delivers stable output for demanding components. The unit includes active cooling via a 135 mm fan and is available in a compact housing (160 x 150 x 86 mm), while the 80 PLUS Platinum certification ensures high energy efficiency during operation.

Suitable for

• High-performance gaming PCs and workstations
• Systems using custom sleeved cables from CableMod
• Multi-GPU or high-power CPU configurations
• Users who prefer fully modular PSUs for neat cable management

Key specifications

• Total power: 1200 W
• Form factor: ATX
• AC input: 100–240 V, 50/60 Hz
• Efficiency: 80 PLUS Platinum
• Cooling: 135 mm fan (active)
• Dimensions (W x D x H): 160 x 150 x 86 mm
• Colour: Black
• Manufacturer part number (MPN): PH-P1200PR_BK01C
• EAN: 0886523510215

How to use

Install the Revolt 1200 W into a compatible ATX case following standard safety procedures: power off and unplug the system, secure the PSU to the case using the provided mounting points, and connect only the required modular cables to motherboard, CPU, GPU(s) and storage devices. Use CableMod or other compatible custom cables if desired, ensuring each connector is fully seated. Reconnect mains power and verify system stability at boot.

Recommendations

For optimal performance and longevity, operate the PSU within the specified input voltage range, ensure adequate case airflow to assist the 135 mm fan, and use certified quality cables. Periodically check connections and dust levels inside the PSU area to maintain cooling efficiency.
