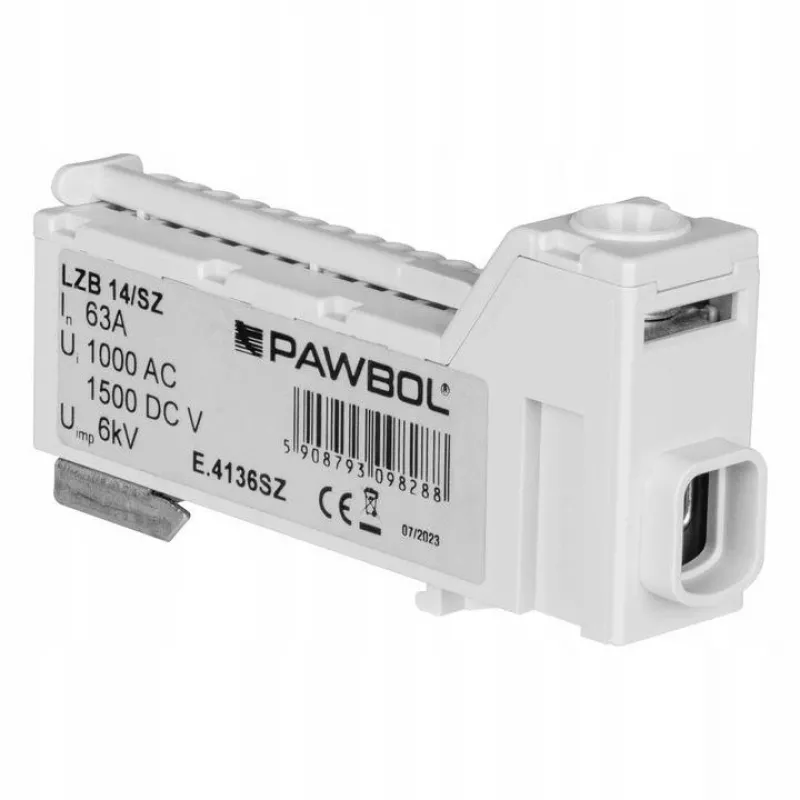

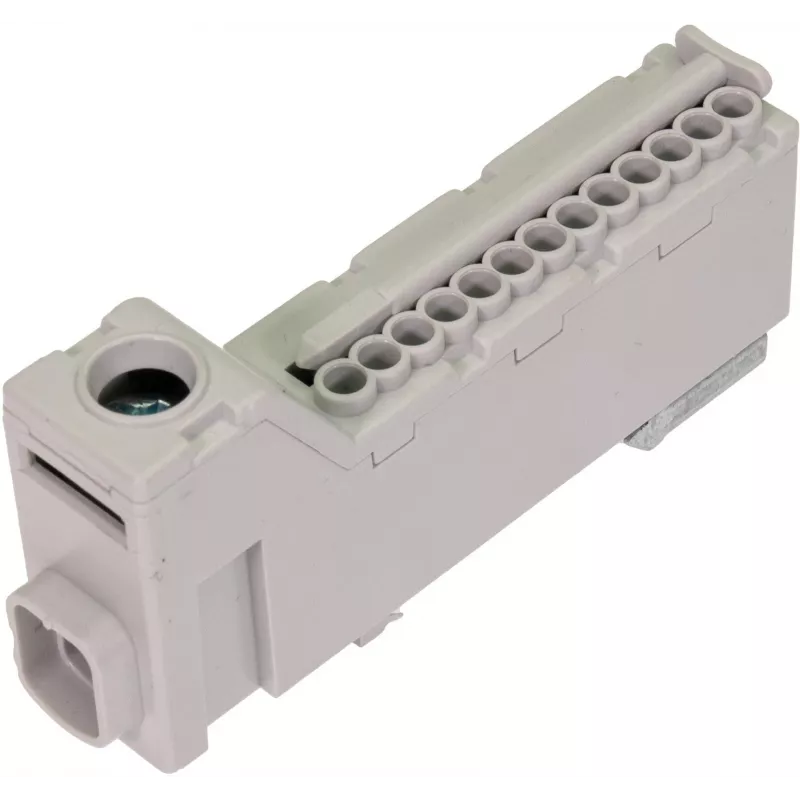

PAWBOL Screwless Terminal Strip LZB E.4136SZ Grey (12-Pole, 450V, 24A)

The PAWBOL LZB E.4136SZ screwless terminal strip delivers an impressive 24A rated current and a compact 12-pole design, making it a reliable choice for demanding electrical installations. With push-in technology, it ensures fast, tool-free wiring and secure connections for solid and stranded conductors.

Overview

Engineered for efficiency, the PAWBOL LZB E.4136SZ eliminates the need for traditional screw clamps. Its spring-loaded mechanism securely grips stripped wires (9-10 mm) with a simple push, reducing installation time and minimizing loose connection risks. This grey terminal strip is built to withstand continuous operation in temperatures from -25°C to +100°C.

What stands out

• Tool-free push-in connection for rapid wiring
• 12 poles accommodate multiple circuits in one compact unit
• Rated voltage 450V AC / current 24A – robust for industrial use
• V-2 flammability rating ensures fire safety
• Grey polyamide (PA6.6) housing offers excellent mechanical strength

Technical details

• Type: Screwless terminal strip
• Number of poles: 12
• Rated voltage: 450V AC
• Rated current: 24A
• Conductor cross-section (solid/stranded): 0.5 – 2.5 mm²
• Connection: Push-in / spring clamp
• Housing material: Polyamide (PA6.6)
• Contact material: Tinned copper
• Operating temperature: -25°C to +100°C
• Flammability rating: UL94 V-2
• Mounting: Free-standing / panel mount
• Stripping length: 9-10 mm
• Approvals: CE, RoHS

Our verdict

For electricians and panel builders seeking a dependable, screwless termination solution, the PAWBOL E.4136SZ delivers exceptional convenience and performance. Its robust construction and high electrical ratings make it a smart addition to any wiring project.
