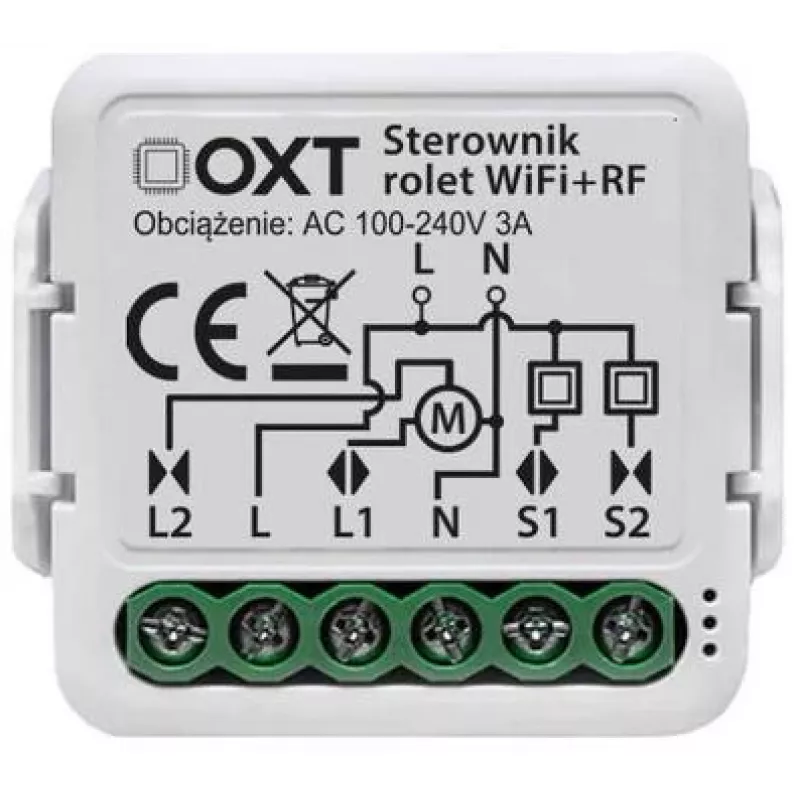

OXT Mini Smart Blind and Shutter Controller Module WiFi+RF Tuya T229

The OXT Mini Smart Blind and Shutter Controller Module T229 is a compact, intelligent device designed to automate and control roller blinds, Venetian blinds, and electric shutters. With dual connectivity via Wi-Fi 2.4GHz and RF, it seamlessly integrates into your smart home ecosystem, allowing you to manage your window coverings remotely through the Tuya Smart or Smart Life app. This module supports precise slat tilt angle adjustment, voice control with Amazon Alexa and Google Assistant, and offers scheduling and scene automation for enhanced convenience and energy efficiency.

Advantages

Easy installation in standard in-wall switch boxes (e.g., 60mm round) makes it a perfect retrofit solution. The module supports manual switches, so you can still operate your blinds traditionally. Its fire-retardant PC V0 housing ensures safety, while CE and RoHS certifications guarantee compliance with European standards. With a max load of 600W and 3A, it is suitable for most residential blind and shutter motors.

Suitable for

• Roller blinds
• Venetian blinds
• Electric shutters
• Smart home automation projects
• Retrofit installations in existing switch boxes

Key specifications

• Connectivity: Wi-Fi 2.4GHz, RF
• Smart platform: Tuya Smart / Smart Life
• Control: Open, Close, Stop, Slat tilt angle
• Power supply: AC 100-240V, 50/60Hz
• Max load: 3A, 600W
• Voice control: Amazon Alexa, Google Assistant
• Operating temperature: -10°C to 40°C
• Housing material: PC V0 fire-retardant
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure your Wi-Fi network operates on 2.4GHz band. The module is designed for indoor use only. Professional installation is recommended if you are not familiar with electrical wiring.
