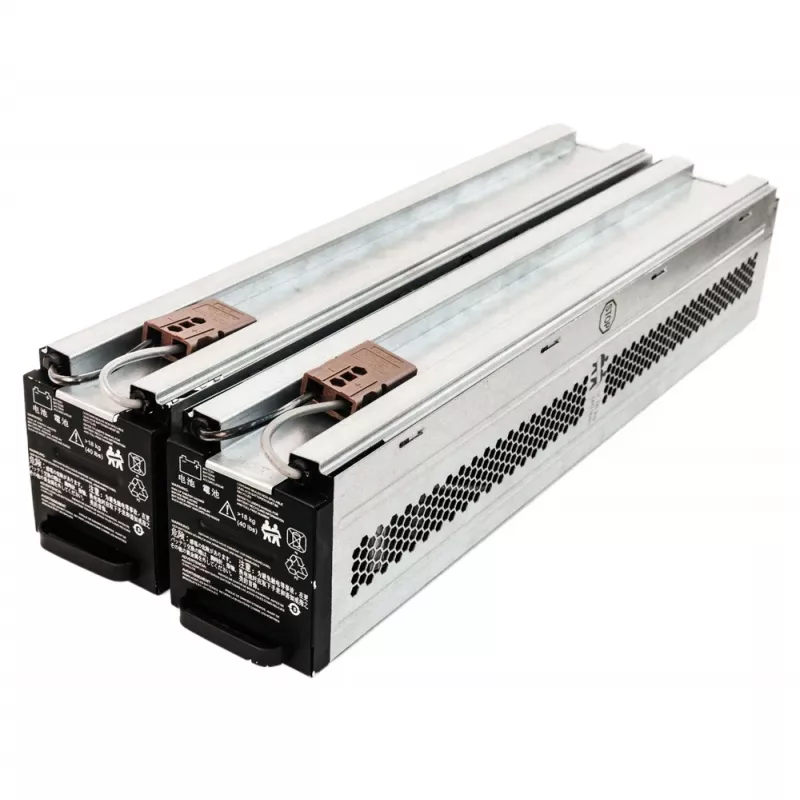

Origin Storage Origin Replacement UPS Battery Cartridge APCRBC140 for APC Smart-UPS RT Smart-UPS SRT

The Origin Storage Replacement UPS Battery Cartridge RBC is a plug-and-play replacement designed for APC Smart-UPS RT and SRT series. Assembled in the USA with new sealed lead acid cells and components, the cartridge provides a 192V battery solution supplied as a two-battery set and is intended to restore or extend runtime for critical equipment. The unit is supplied ready to install without additional assembly and is compatible with the specified APC models.

Advantages

The cartridge ships ready to use and requires no assembly, reducing installation time. It uses sealed lead acid (VRLA) technology suitable for rack-mounted UPS systems and is built to be fully compatible with APC Smart-UPS RT and SRT units. The two-battery configuration and 192V nominal voltage deliver the correct electrical match for supported UPS models while maintaining a compact packaged footprint for ease of handling and replacement.

Suitable for

• Replacing end-of-life battery cartridges in APC Smart-UPS RT and SRT models
• Restoring runtime for servers, network equipment, and telecommunications hardware
• Field service technicians performing UPS maintenance and battery swaps

Key specifications

• Battery technology: Sealed Lead Acid (VRLA)
• Nominal voltage: 192 V
• Number of batteries included: 2 pcs
• Weight: 36.287 kg
• Colour: Silver
• Packaged dimensions (W×H×D): 368.3 × 228.6 × 660.4 mm

How to use

Confirm the cartridge is compatible with your APC Smart-UPS RT or SRT model and power down the UPS according to the manufacturer's safe shutdown procedure. Remove the discharged battery cartridge following the UPS service instructions, slide the replacement cartridge into the battery compartment until it seats firmly, and reconnect any battery interlocks or connectors as required. Power the UPS back on and verify correct battery status through the UPS display or management software.

Recommendations for use

Store and install the battery cartridge in a dry, temperature-controlled environment within the UPS manufacturer's recommended temperature range. Perform regular battery tests and visual inspections, and replace the cartridge at end-of-life or when runtime no longer meets operational requirements. Dispose of used sealed lead acid batteries in accordance with local regulations.
