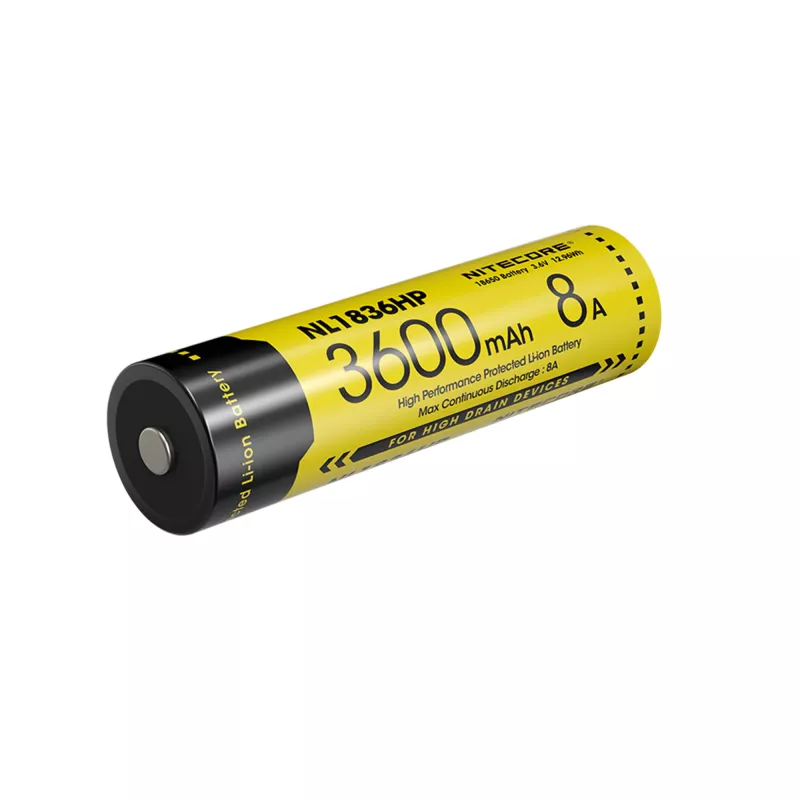

Nitecore NL1836HP 3600mAh 18650 Li-ion Button Top Battery

The Nitecore NL1836HP is a high-performance 18650 lithium-ion rechargeable battery with a capacity of 3600mAh. Designed for high-drain devices such as flashlights and headlamps, it features a button top terminal and built-in protection circuit for safe operation.

Advantages

With a maximum continuous discharge current of 8A and low internal resistance, the NL1836HP delivers stable power for demanding applications. The protection circuit safeguards against over-charge, over-discharge, short-circuit, and over-current, ensuring long battery life and user safety.

Suitable for

• High-drain flashlights and headlamps
• Portable electronics requiring 18650 batteries
• Replacement battery for Nitecore and compatible devices

Key specifications

• Battery Type: 18650
• Chemistry: Lithium-ion (Li-ion)
• Capacity: 3600 mAh
• Nominal Voltage: 3.6 V
• Energy: 12.96 Wh
• Max Continuous Discharge Current: 8 A
• Terminal Type: Button Top
• Protection Circuit: Yes (Over-charge, Over-discharge, Short-circuit, Over-current)
• Cycle Life: >500 cycles
• Recommended Charging Current: 1 A
• Max Charging Current: 2 A
• Operating Temperature (Discharge): -20°C to 60°C
• Operating Temperature (Charge): 0°C to 45°C
• Certifications: CE, RoHS, FCC

Recommendations

For optimal performance, charge with a compatible lithium-ion charger at 1A. Store in a cool, dry place. Do not disassemble or expose to high temperatures.
