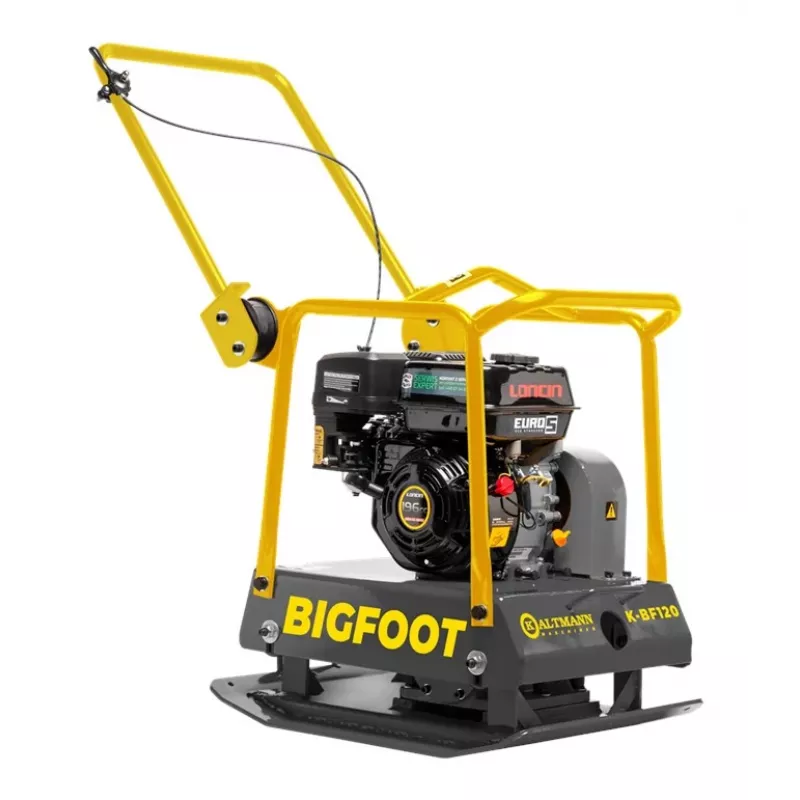

KALTMANN K-BF120 Petrol Plate Compactor with Paving Mat

The KALTMANN K-BF120 is a robust petrol plate compactor designed for professional compaction of granular soils, gravel, sand, and asphalt. Powered by a reliable Loncin G200F 4-stroke engine, this machine delivers a compaction force of 15 kN and a working speed of 25 m/min, making it ideal for patching, trench work, and paving projects. The package includes a paving mat and transport wheels for enhanced versatility and mobility.

Advantages

High compaction force of 15 kN ensures efficient soil densification. The Loncin G200F engine provides reliable power with easy recoil start. Included paving mat protects asphalt surfaces during compaction, and transport wheels simplify job site movement.

Suitable for

• Compaction of granular soils, sand, and gravel
• Asphalt patching and repair
• Trench backfill compaction
• Landscaping and paving projects

Key specifications

• Engine: Loncin G200F, 4-stroke, OHV, air-cooled
• Engine Power: 6.5 HP (4.8 kW)
• Displacement: 196 cc
• Compaction Force: 15 kN
• Vibration Frequency: 5600 vpm
• Plate Dimensions (L x W): 500 x 370 mm
• Working Speed: 25 m/min
• Compaction Depth: 30 cm
• Fuel Tank Capacity: 3.6 L
• Oil Tank Capacity: 0.6 L
• Fuel Type: Unleaded Gasoline
• Starting System: Manual (Recoil)
• Operating Weight: 83 kg
• Included Accessories: Paving Mat, Transport Wheels

Recommendations

For optimal performance, use unleaded gasoline and check oil levels before each use. The paving mat is recommended for asphalt compaction to prevent surface damage. Always operate on level ground and wear appropriate personal protective equipment.
