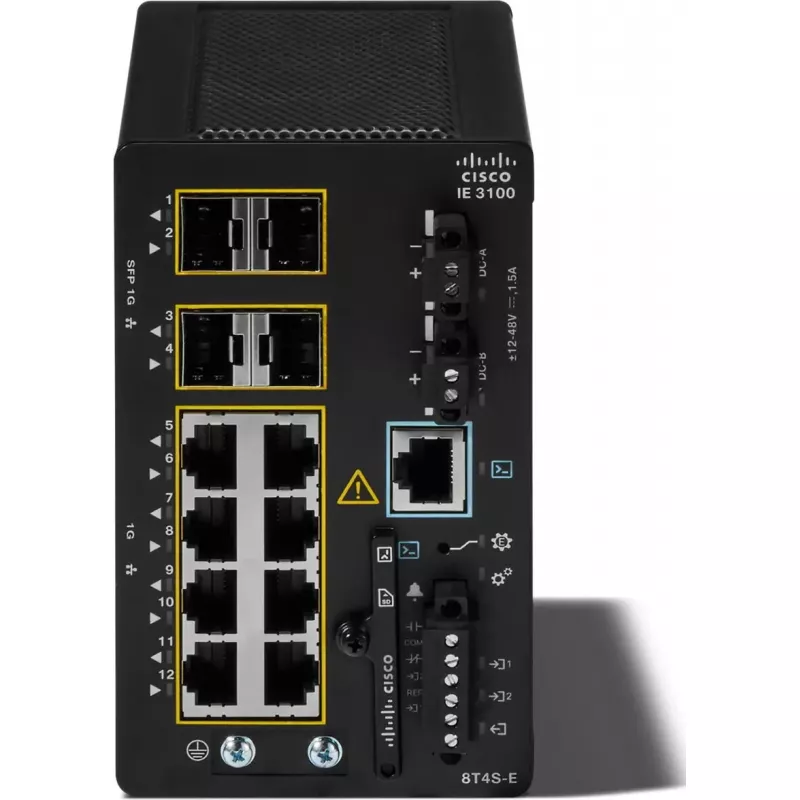

Industrial Ethernet switch Cisco IE3100 Rugged Series, managed, 8 x 10/100/1000 + 4 x Gigabit SFP, DIN-rail mountable

The Cisco IE3100 Rugged Series is a managed industrial Ethernet switch designed for reliable wired connectivity in demanding environments. It provides eight 10/100/1000 copper ports for access devices and four Gigabit SFP slots for fiber uplinks or media conversion. The unit is DIN-rail mountable and offers managed switching features that help segment networks, control traffic, and maintain uptime at network edges such as factory floors, transportation systems, and outdoor cabinets.

Advantages

The switch combines ruggedized hardware with enterprise-grade management, delivering deterministic connectivity and simplified operations in industrial settings. Its mix of copper and SFP ports enables flexible network architectures and longer-distance uplinks when needed. DIN-rail mounting and a compact form factor make installation in control cabinets straightforward, while managed features support VLANs, QoS, and traffic monitoring for predictable performance.

Suitable for

• Factory automation networks and machine-level connectivity
• Transportation systems, signaling and trackside communications
• Edge and aggregation in industrial control cabinets
• Remote sites requiring fiber uplinks or media conversion

Key specifications

• Ports: 8 x 10/100/1000BASE-T copper ports
• Uplinks: 4 x Gigabit SFP slots for fiber or SFP modules
• Management: Full managed switching with VLAN and QoS support
• Mounting: DIN-rail compatible enclosure
• Designed for industrial environments with robust physical construction

How to use

Install the switch on a compatible DIN-rail inside the control cabinet or rack area, connect power according to site wiring guidelines, and attach copper devices to the 10/100/1000 ports. Populate the SFP slots with appropriate transceivers for fiber uplinks if long-distance connectivity is required. Use the management interface to configure VLANs, QoS, link aggregation, and security settings to match network design and segmentation policies before placing the device into production.

Recommendations

Place the switch in an environment that meets the recommended temperature and grounding requirements and protect it from direct exposure to water or corrosive agents. Use appropriate SFP modules rated for the installation distance and media, and configure managed features such as VLANs and QoS to isolate industrial traffic from other network segments. Regularly back up configuration settings and verify firmware updates through authorized channels to maintain security and stability.
