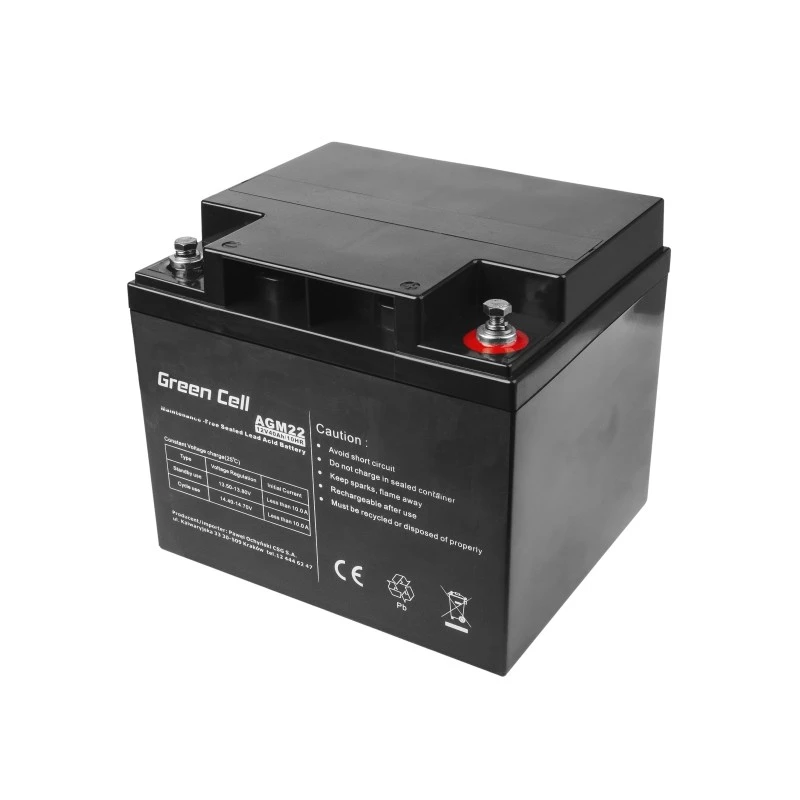

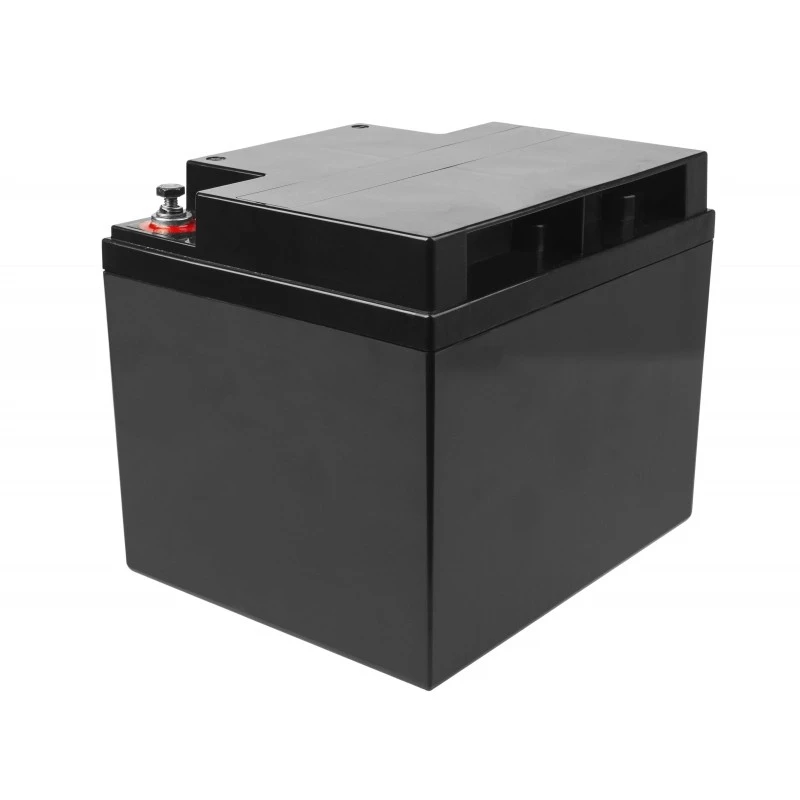

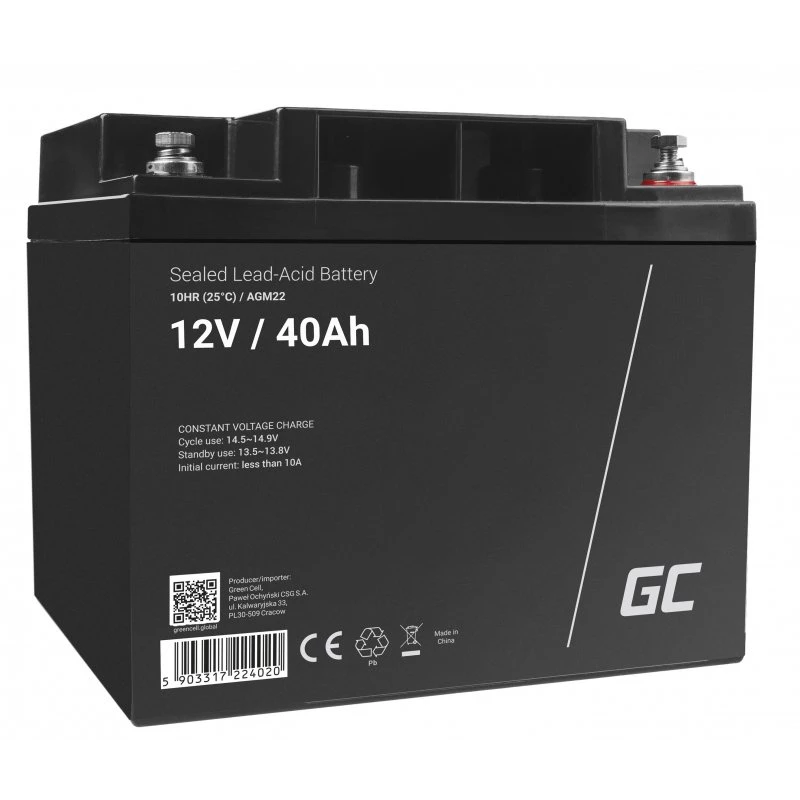

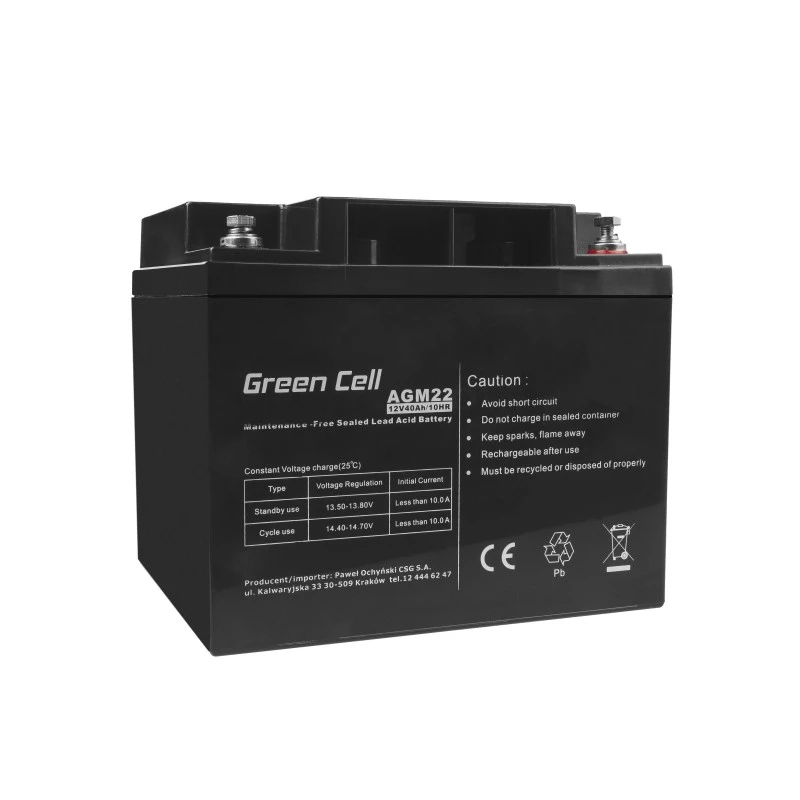

UPS battery Green Cell AGM22 — Sealed Lead Acid 12V 40Ah (VRLA), 170×165×197 mm, 12.1 kg

Green Cell AGM22 is a 12V 40Ah sealed lead-acid (VRLA) battery designed for uninterrupted power supply (UPS) systems and other backup applications. Constructed with AGM (Absorbent Glass Mat) technology, the electrolyte is absorbed into a fiberglass separator to prevent leakage, allowing the battery to operate in various orientations. The battery weighs 12.1 kg and has compact dimensions suitable for installation in UPS enclosures.

Advantages

The AGM design provides maintenance-free operation and reduced risk of acid leakage compared with traditional flooded lead-acid batteries. Sealed construction and VRLA technology make the unit safer for indoor use, while the 40Ah capacity delivers stable power for backup and standby applications. Its relatively compact size and standard 12V rating ensure compatibility with common UPS systems and other 12V equipment.

Suitable for

• UPS systems and emergency power backup
• Telecommunications and small server cabinets
• Security systems and alarm panels
• Portable power packs and power stations
• Other 12V standby and cyclic applications

Key specifications

• Model: Green Cell AGM22
• Voltage: 12 V
• Capacity: 40 Ah
• Battery technology: Sealed Lead Acid (VRLA), AGM
• Weight: 12.1 kg
• Dimensions (approx.): 165 mm width x 170 mm height (depth not specified)
• Colour: Black
• MPN: AGM22
• EAN: 5903317224020
• Included: 1 pc

How to use

Install the Green Cell AGM22 in accordance with the UPS or device manufacturer instructions, ensuring correct polarity and secure connections to terminal posts. Use the battery in environments within the recommended temperature range provided by the UPS or equipment manual. Charge and maintain the battery using a charger compatible with sealed lead-acid/AGM batteries and follow the charging profile recommended for 12V VRLA cells. Replace the battery when capacity falls below the levels required by your application or when the UPS indicates end-of-life.

Recommendations

For reliable performance, store and operate the battery in a dry, well-ventilated area away from direct heat sources. Periodically check terminal connections for corrosion and ensure the battery is charged regularly during storage to prevent deep discharge. Use chargers and equipment that support AGM/VRLA profiles to prolong service life.
